LH Side

  1. Remove the battery. < Ref. to REMOVAL , Battery. >
  2. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself.)

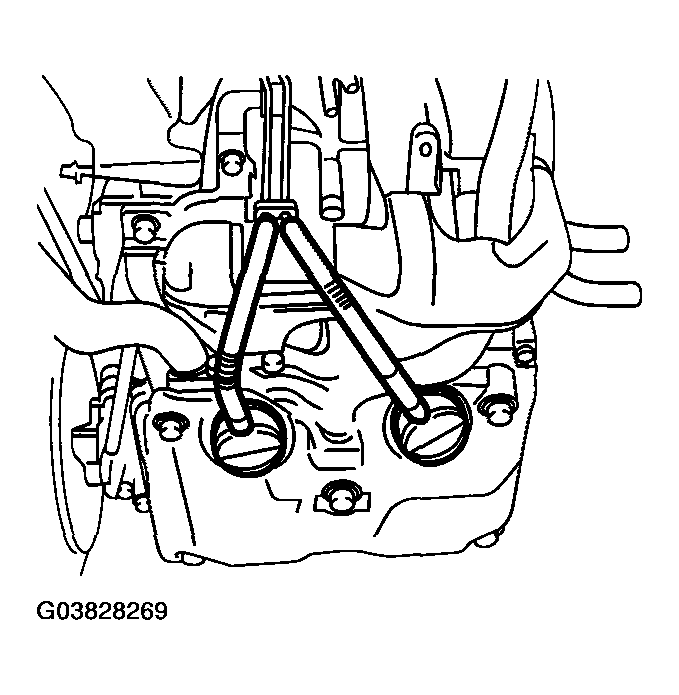

    Fig 1: Removing Spark Plug Cords By Pulling Boot
    G03828269Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the spark plug with a spark plug socket.

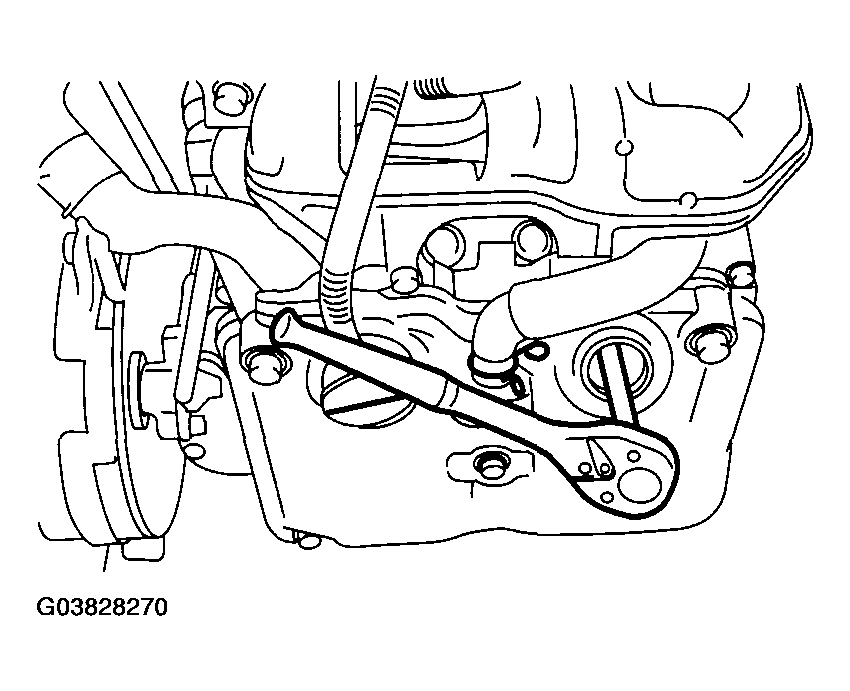

    Fig 2: Removing Spark Plug With Spark Plug Socket
    G03828270Courtesy of SUBARU OF AMERICA, INC.
