LH Side

Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Remove the battery. < Ref. to REMOVAL , Battery. >
Remove the spark plug cords from spark plugs (#2 and #4 cylinders).
Remove the fuel pipe protector LH.

Fig 1: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

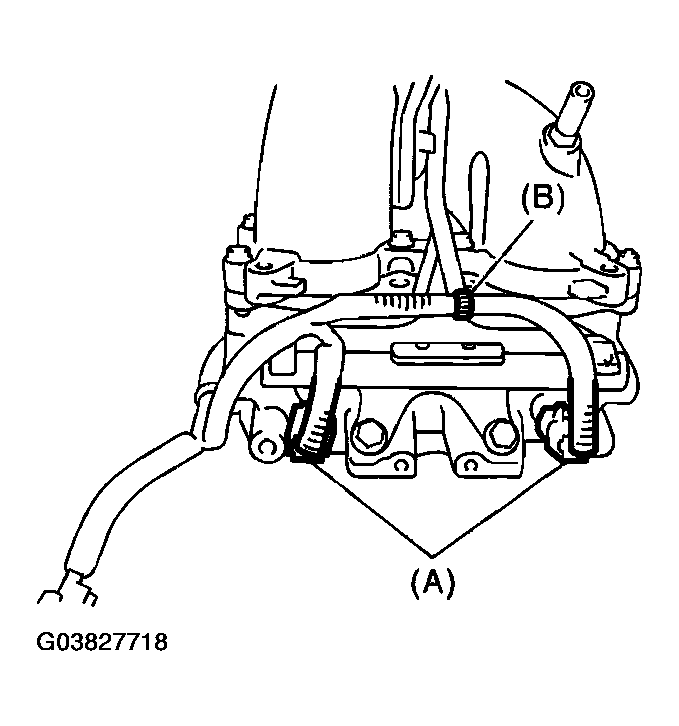

Disconnect the connector (A) from fuel injector.
Remove the clip (B) which holds engine harness to injector pipe.

Fig 2: Removing Clip Holding Engine Harness To Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe onto intake manifold.

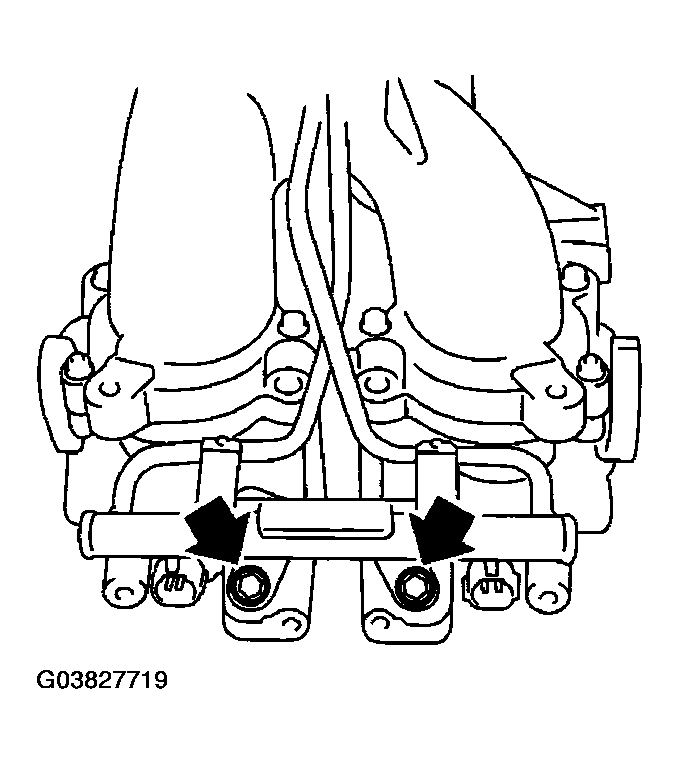

Fig 3: Removing Bolts Holding Fuel Injector Pipe Onto Intake Manifold (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

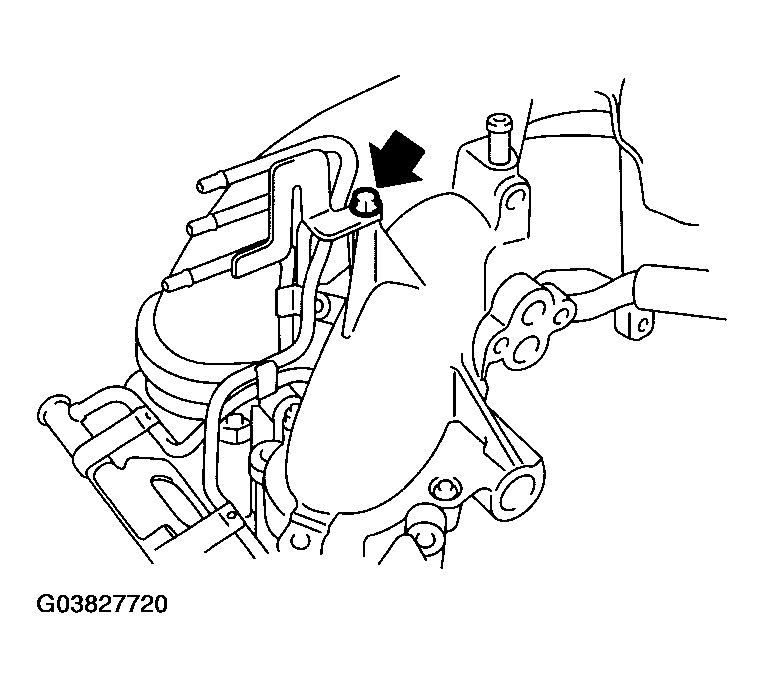

Fig 4: Removing Bolts Holding Fuel Injector Pipe Onto Intake Manifold (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

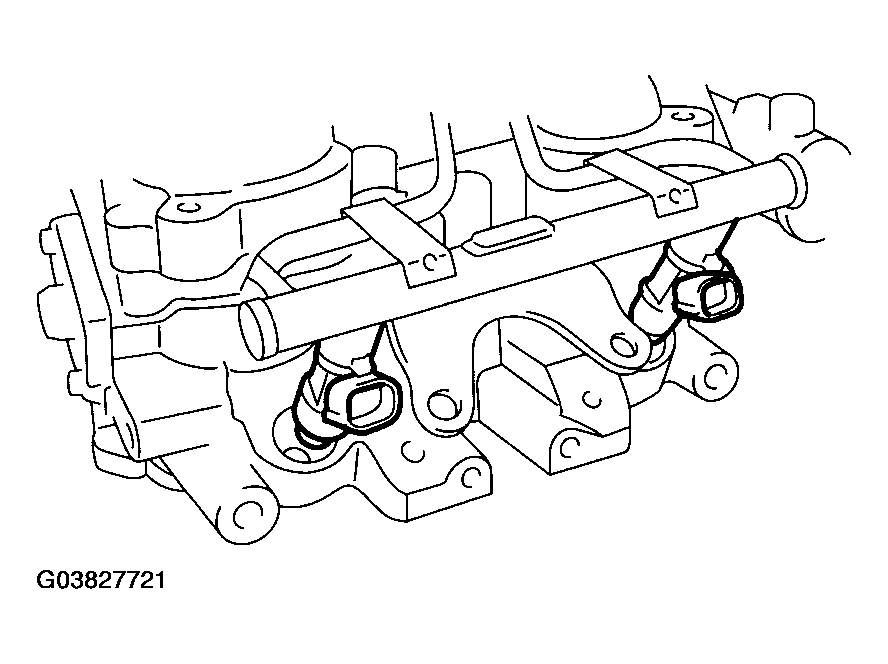

Remove the fuel injector while lifting up the fuel injector pipe.

Fig 5: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
