RH Side

Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

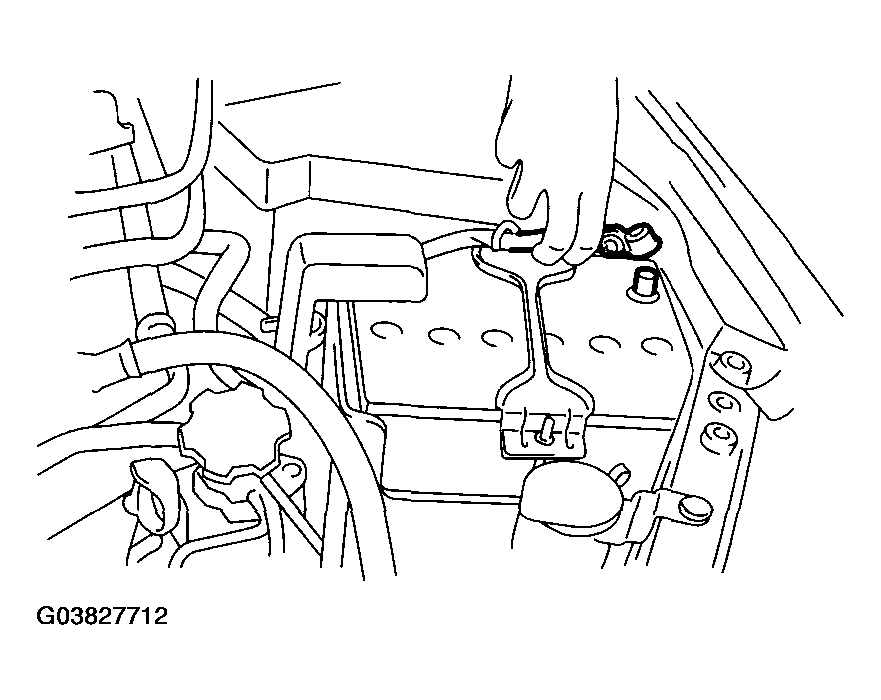

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
Remove the spark plug cords from spark plugs (#1 and #3 cylinders).
Remove the fuel pipe protector RH.

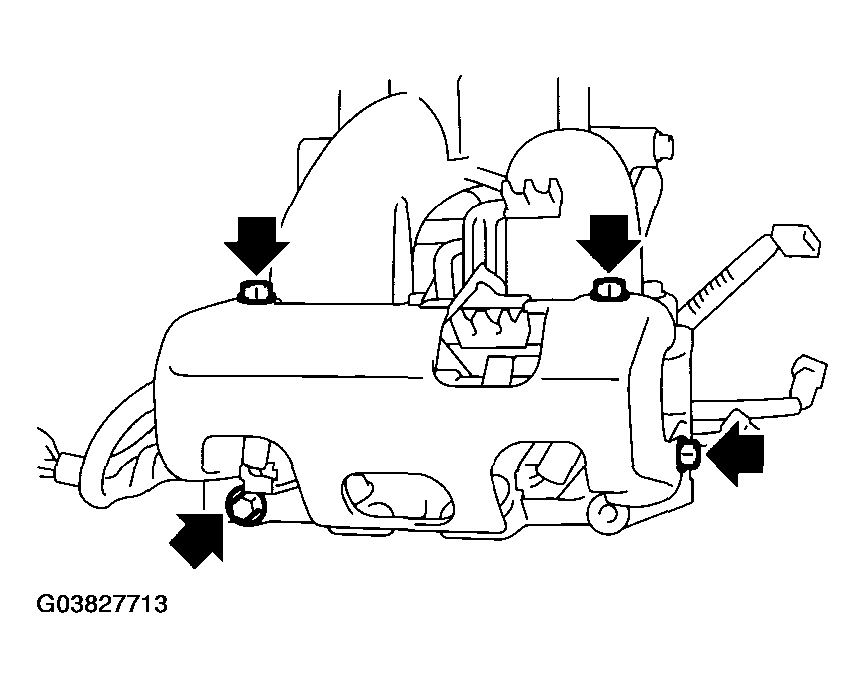

Fig 2: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from fuel injector.
Remove the clip (B) which holds engine harness to injector pipe.

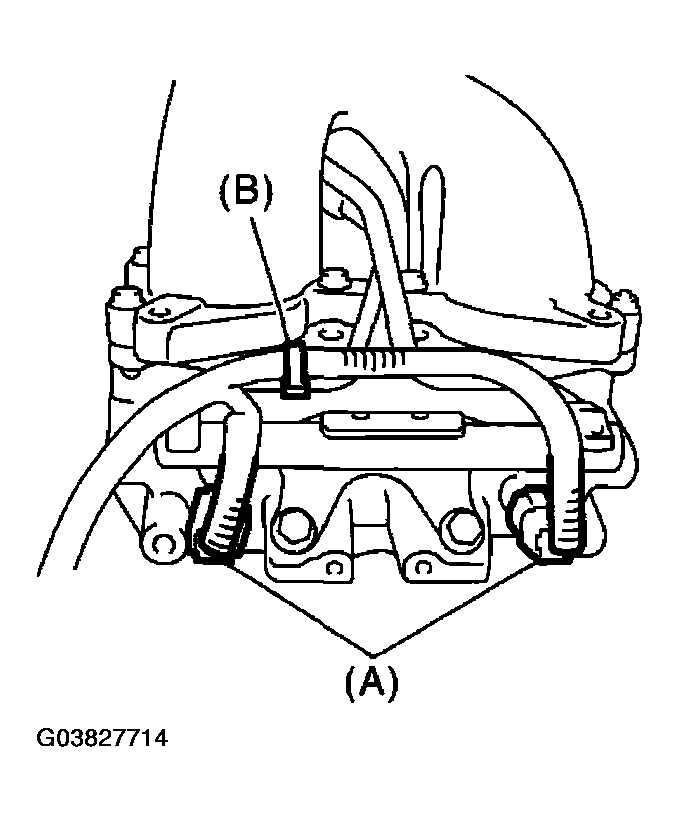

Fig 3: Removing Clip Holding Engine Harness To Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe onto intake manifold.

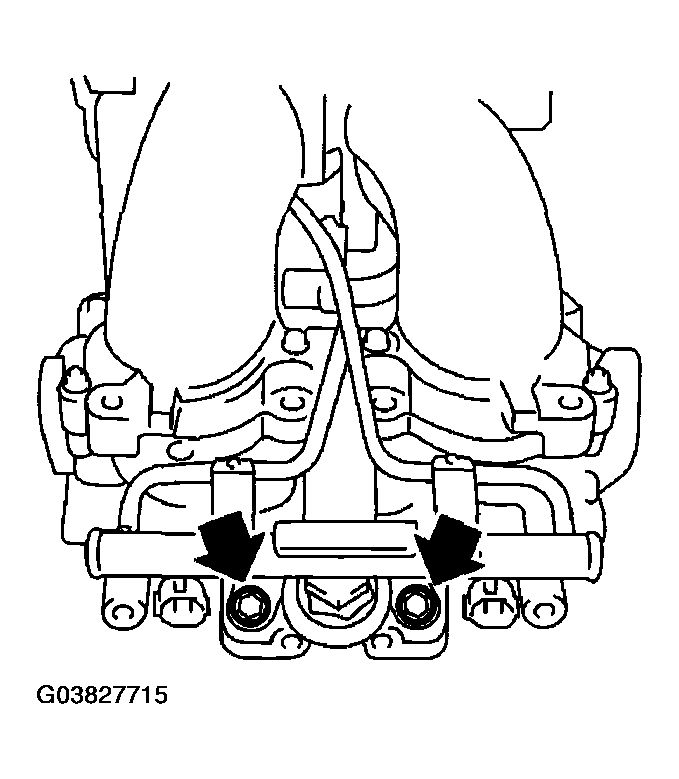

Fig 4: Removing Bolts Holding Fuel Injector Pipe Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector while lifting up the fuel injector pipe.

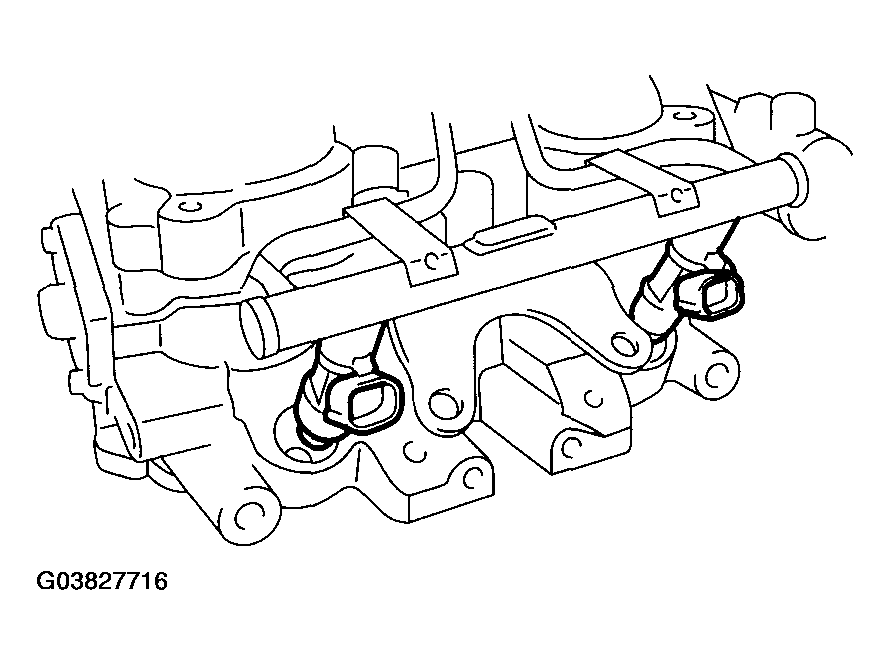

Fig 5: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
