Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

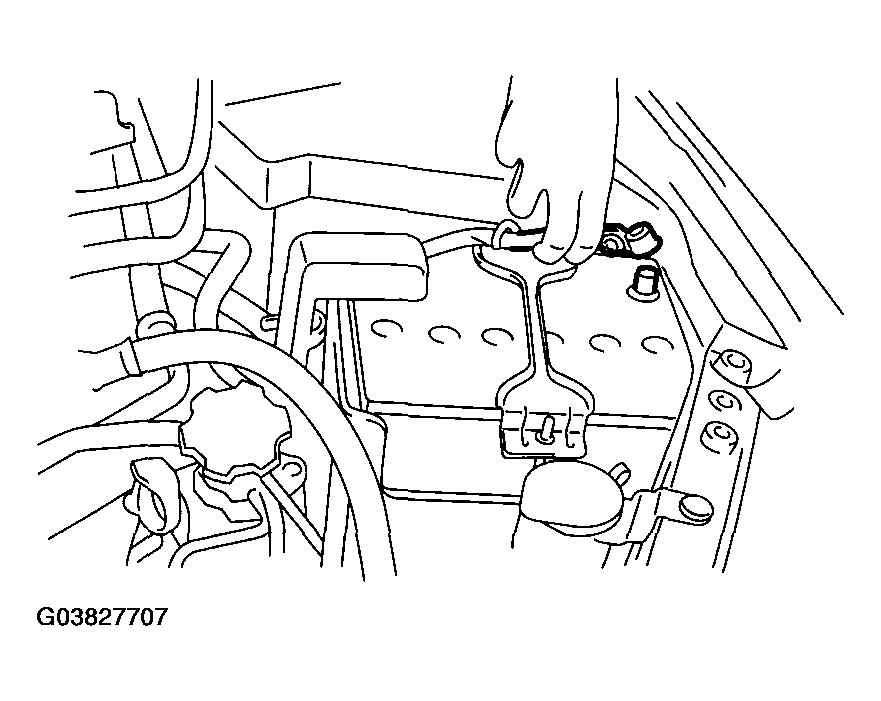

    Fig 1: Disconnecting Ground Cable From Battery
    G03827707Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow and intake air temperature sensor.
  3. Remove the mass air flow and intake air temperature sensor.

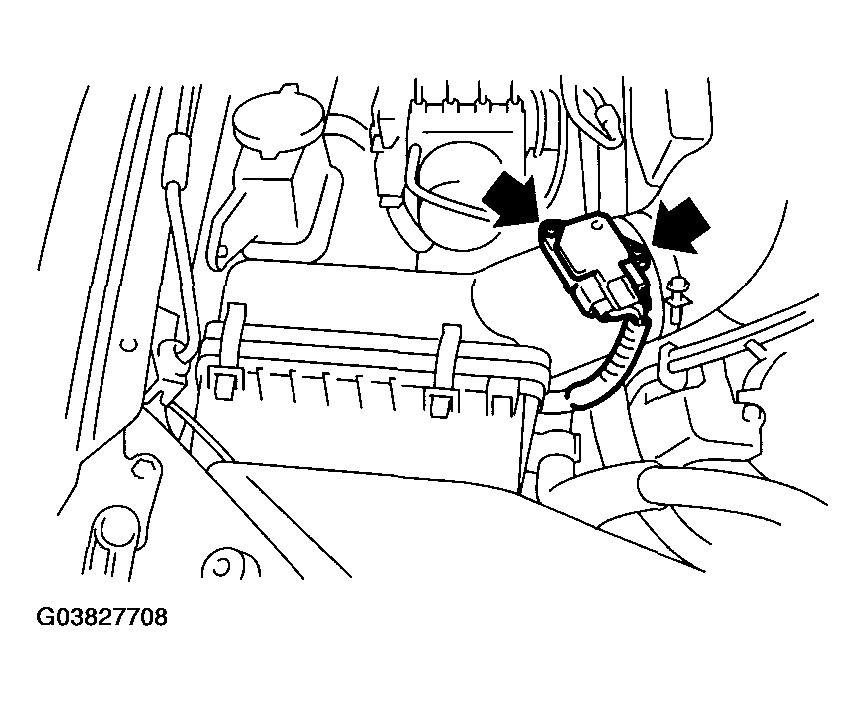

    Fig 2: Removing Mass Air Flow And Intake Air Temperature Sensor
    G03827708Courtesy of SUBARU OF AMERICA, INC.
