Front Door Glass: Removal

Remove the front door trim. < Ref. to REMOVAL , Door Trim. >
Remove the sealing cover.
Remove the outer mirror assembly. < Ref. to Outer Mirror Assembly . >

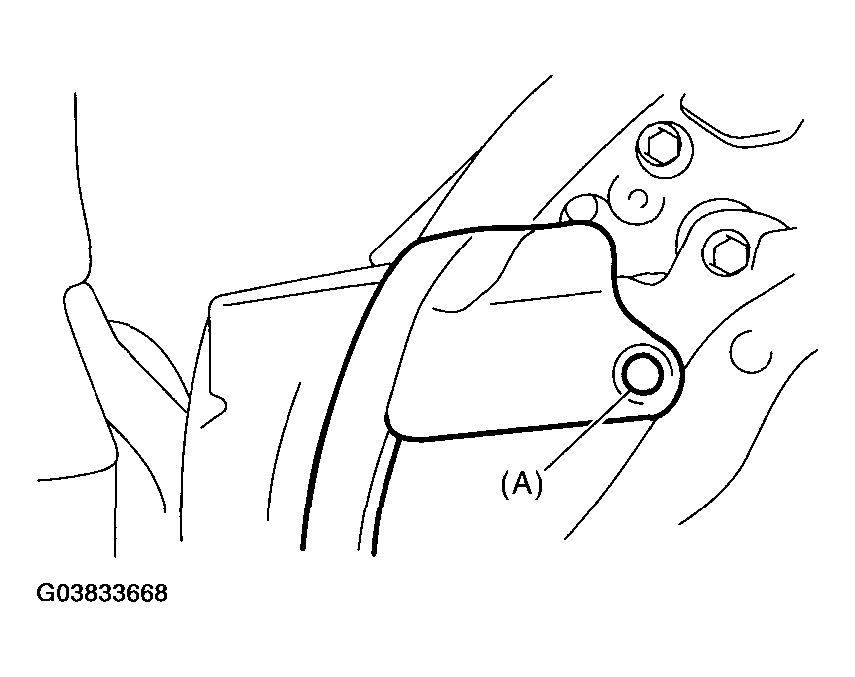

Remove the clip (A), and remove the front end of weather strip.

Fig 1: Removing Clip
Courtesy of SUBARU OF AMERICA, INC.

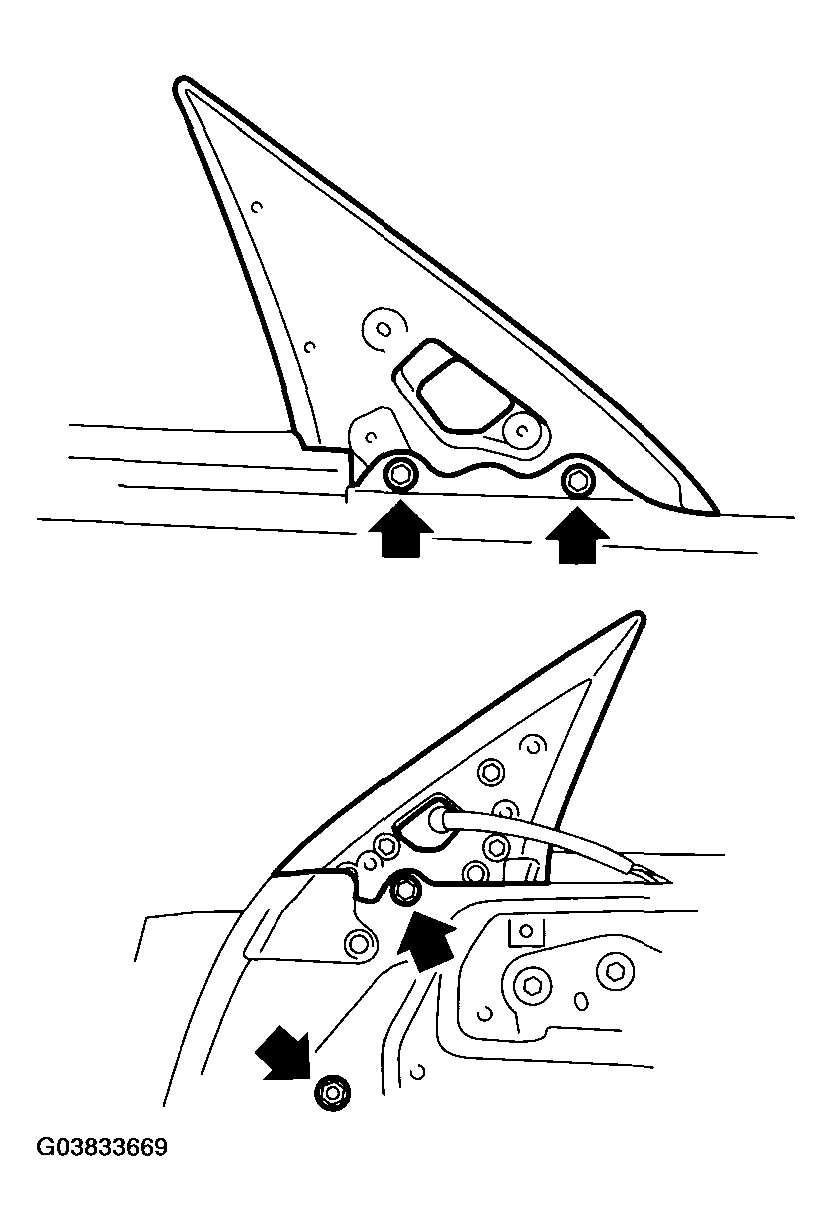

Remove the gusset.

Fig 2: Removing Gusset
Courtesy of SUBARU OF AMERICA, INC.
Remove the stabilizer.

Fig 3: Removing Stabilizer
Courtesy of SUBARU OF AMERICA, INC.

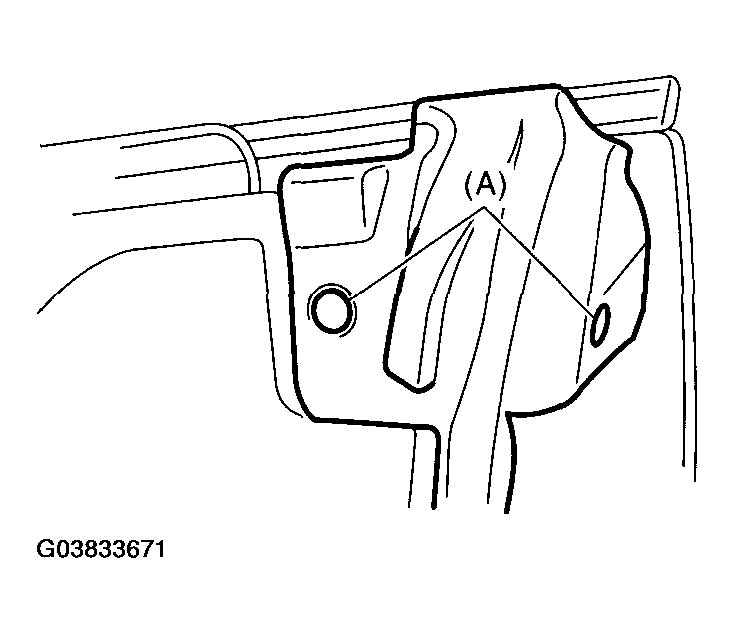

Remove the clips (A), and remove the rear end of weather strip.

Fig 4: Removing Clips And Rear End Of Weather Strip
Courtesy of SUBARU OF AMERICA, INC.

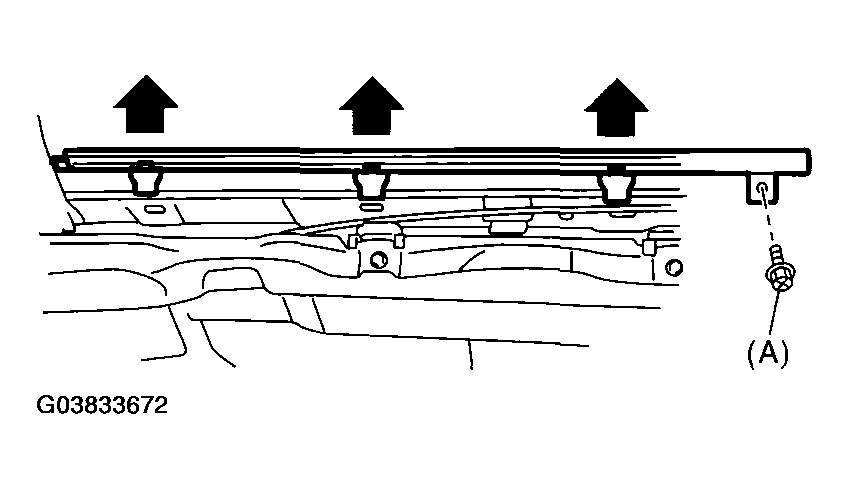

Remove the screw (A) from the rear end of weather strip outer to remove weather strip outer.

Fig 5: Removing Screw From Rear End Of Weather Strip
Courtesy of SUBARU OF AMERICA, INC.

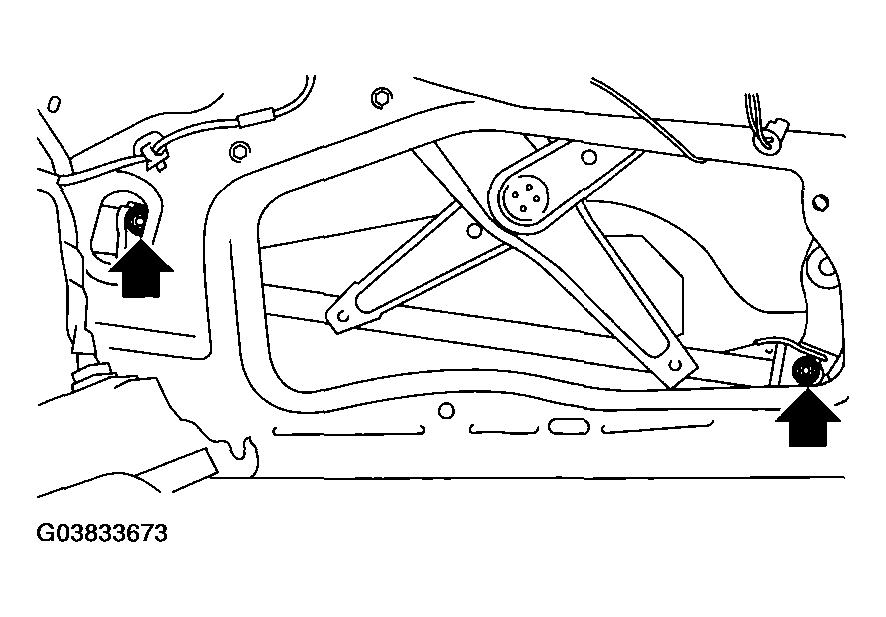

Remove the screws to remove guide assembly.
Operate the power window switch to move glass to position shown in Fig 6 , and then remove the two nuts through service holes.

Fig 6: Positioning Glass To Remove Two Nuts
Courtesy of SUBARU OF AMERICA, INC.

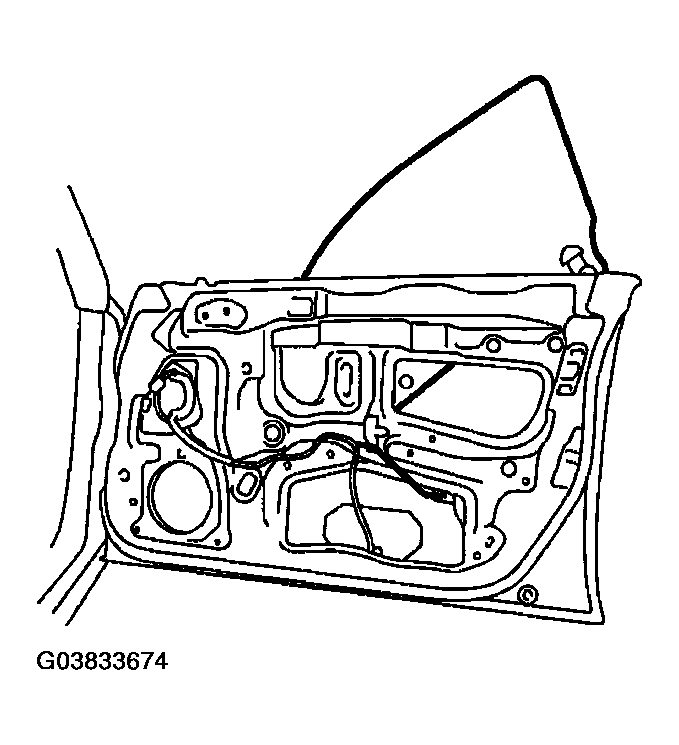

Remove the door glass.

Fig 7: Removing Door Glass

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Since the gear may be disengaged, do not turn regulator in the closing direction after removal of the glass.
Avoid impact and damage to the glass.
