Front Regulator and Motor Assembly: Removal

Remove the door glass. < Ref. to REMOVAL , Front Door Glass. >
Disconnect the motor connector.
Remove the four bolts and two nuts to remove regulator assembly.

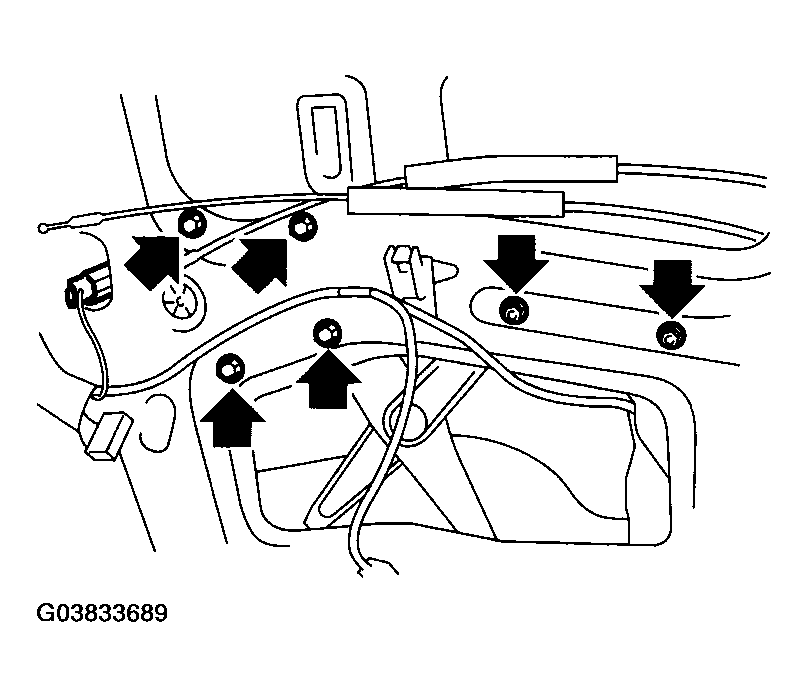

Fig 1: Removing Four Bolts And Two Nuts To Remove Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws to remove motor assembly.

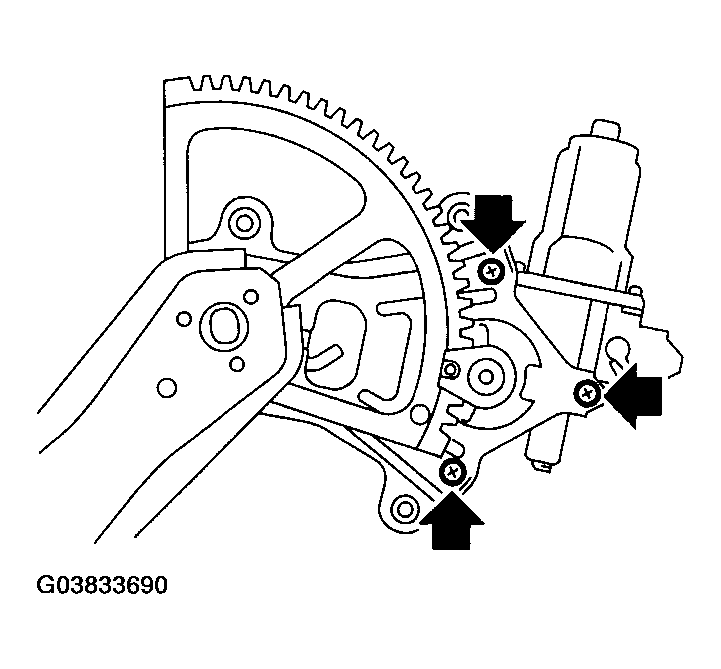

Fig 2: Removing Screws To Remove Motor Assembly

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When removing the motor assembly, secure the arm correctly, because the regulator arm moves in the force of balancing spring.
