Components With Torque Specifications: Mirror

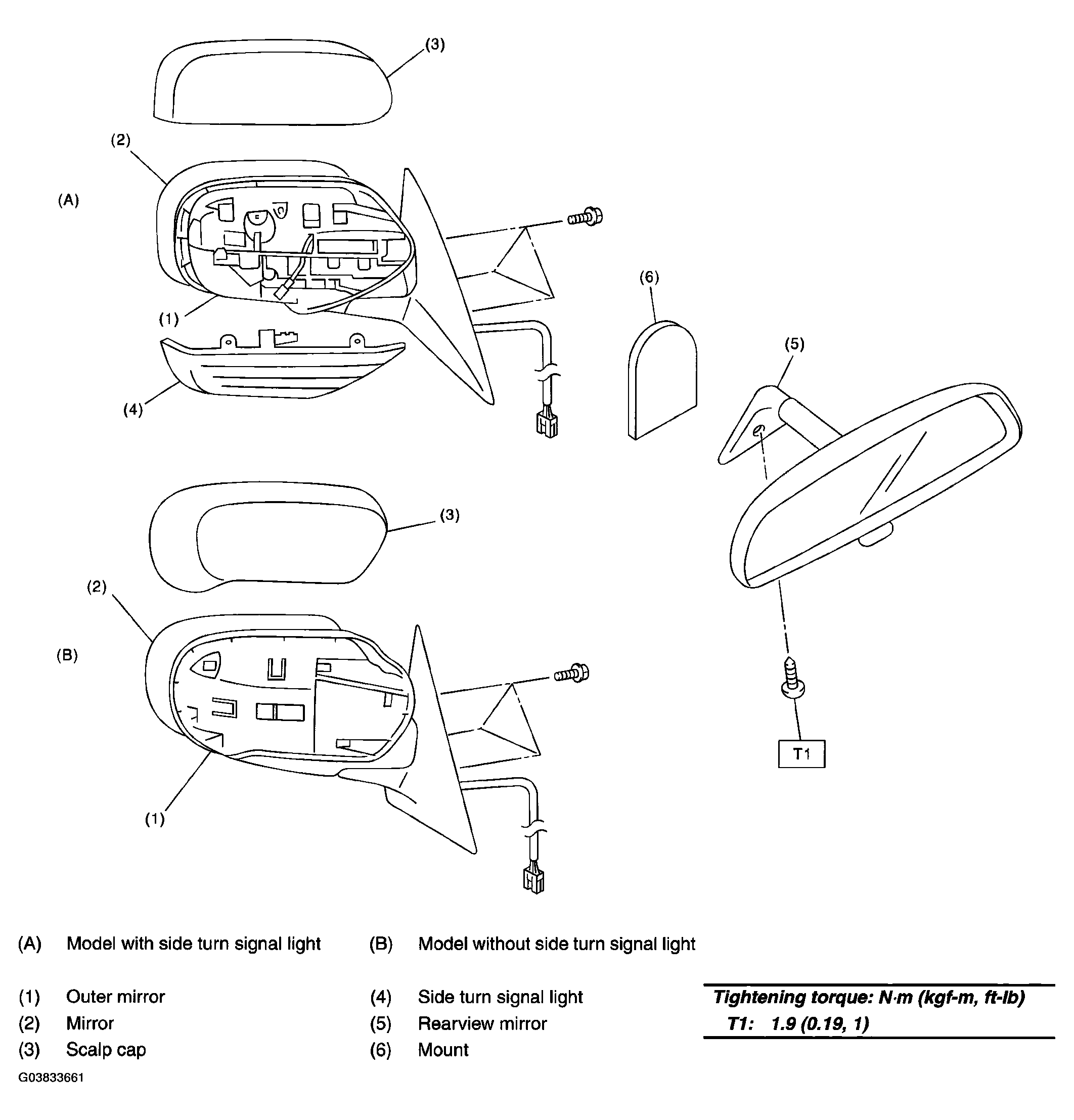

Fig 1: Exploded View Of Mirror

G03833661

Courtesy of SUBARU OF AMERICA, INC.
