Special Tool
SPECIAL TOOL SPECIFICATION
| ILLUSTRATION | TOOL NUMBER | DESCRIPTION | REMARKS |
|---|---|---|---|

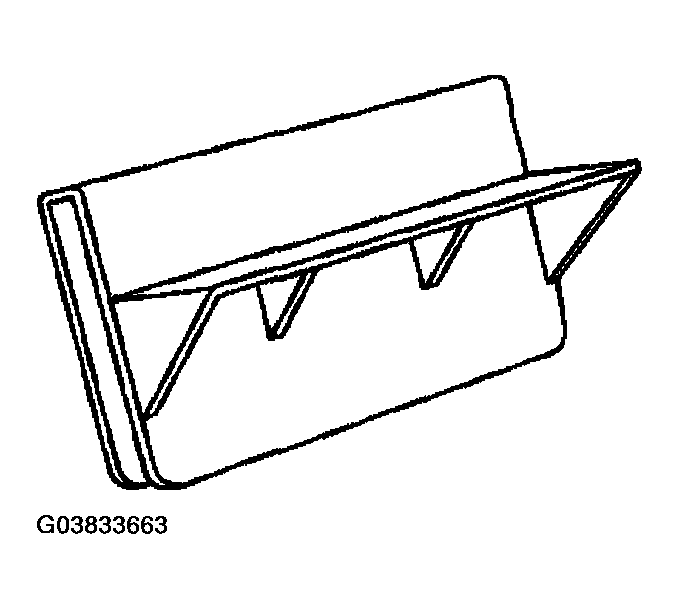

| Fig 1 | 61299AE000 | SPACER | Used for adjusting the upper end position of front door glass. (Glass thickness: 5 mm (0.197 in)) |

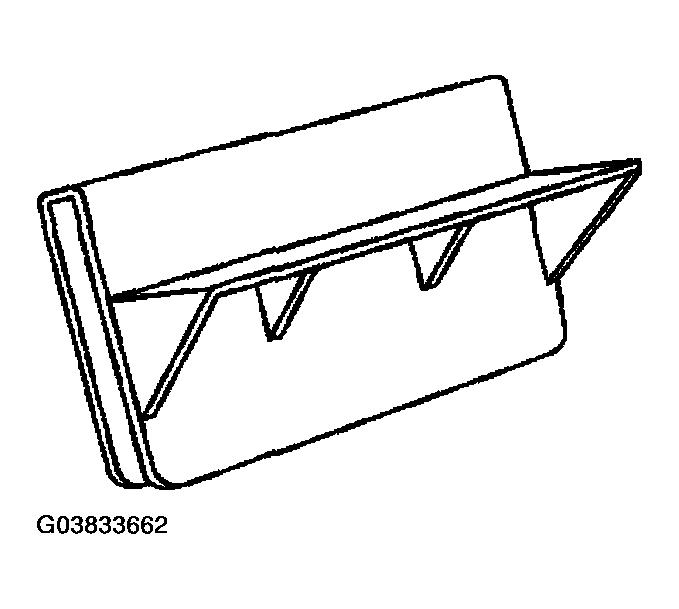

| Fig 2 | 61299AE010 | SPACER | Used for adjusting the upper end position of rear door glass. (Glass thickness: 4 mm (0.157 in)) |
