Outer Mirror Assembly: Inspection

Check that the rearview mirror moves properly when the battery voltage is applied to terminals.

• Model with side turn signal light
  SWITCH POSITION TERMINAL SPECIFICATION



  Switch position	Terminal No.
  OFF	-
  UP	6 (+) and 3 (-) or 8 (-)
  DOWN	3 (+) or 8 (+) and 6 (-)
  LEFT	7 (+) and 3 (-) or 8 (-)
  RIGHT	3 (+) or 8 (+) and 7 (-)

• Model without side turn signal light

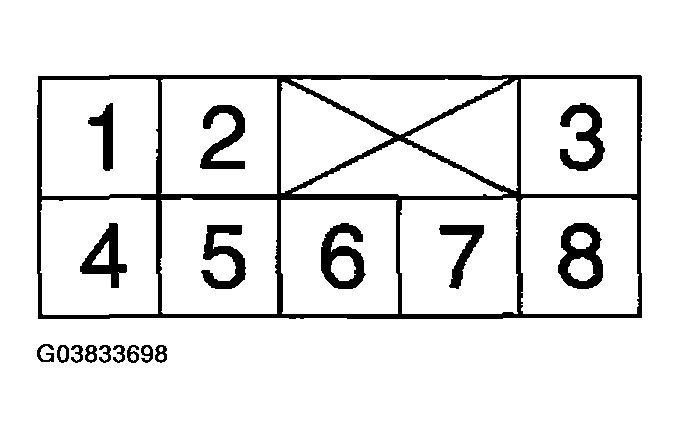

Fig 1: Model With Side Turn Signal Light Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

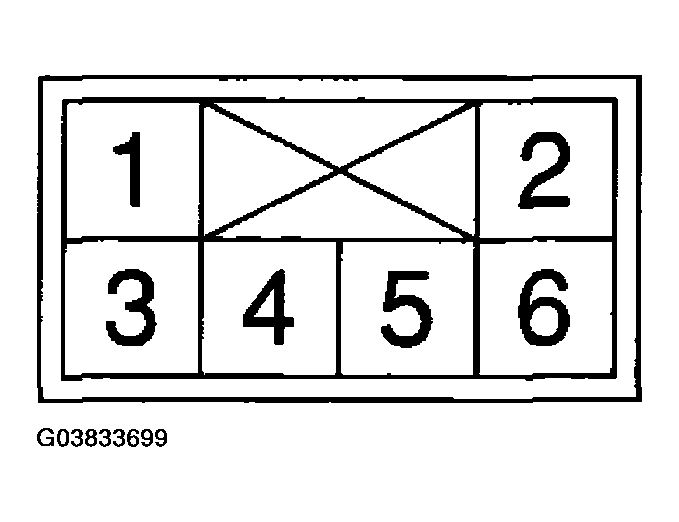

Fig 2: Model Without Side Turn Signal Light Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

Replace the outer mirror assembly if defective.
