Sub Switch

  1. Disconnect the ground cable from battery.
  2. Remove the door trim. < Ref. to REMOVAL , Door Trim. >
  3. Disconnect the connector.
  4. Remove the screws from the reverse side of door trim to remove the power window sub switch.

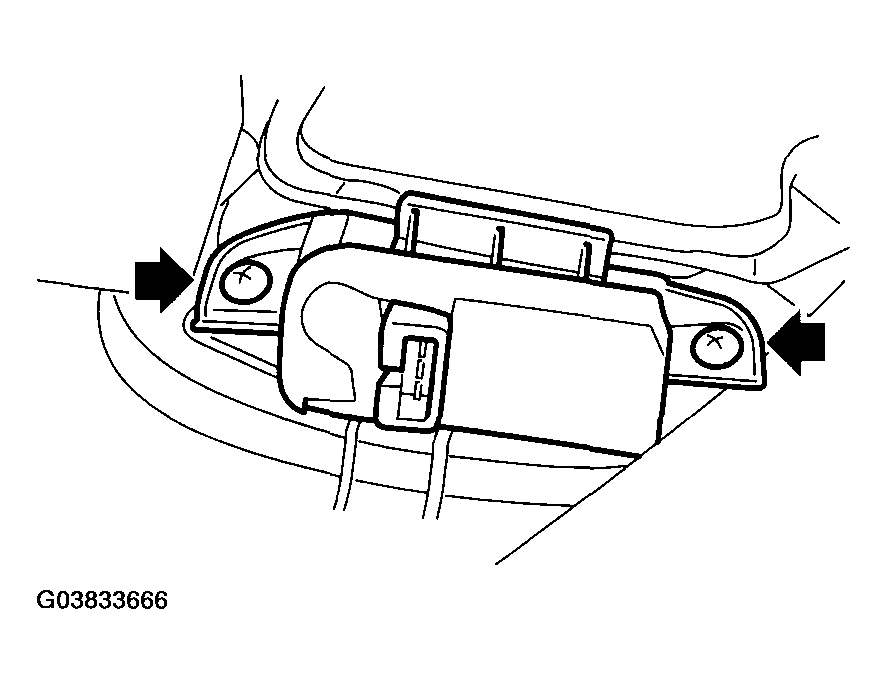

    Fig 1: Removing Screws From Reverse Side Of Door Trim
    G03833666Courtesy of SUBARU OF AMERICA, INC.
