Main Switch

  1. Disconnect the ground cable from battery.
  2. Remove the front door trim. < Ref. to REMOVAL , Door Trim. >
  3. Disconnect the harness connector.
  4. Remove the screws from the reverse side of front door trim to remove the power window main switch.

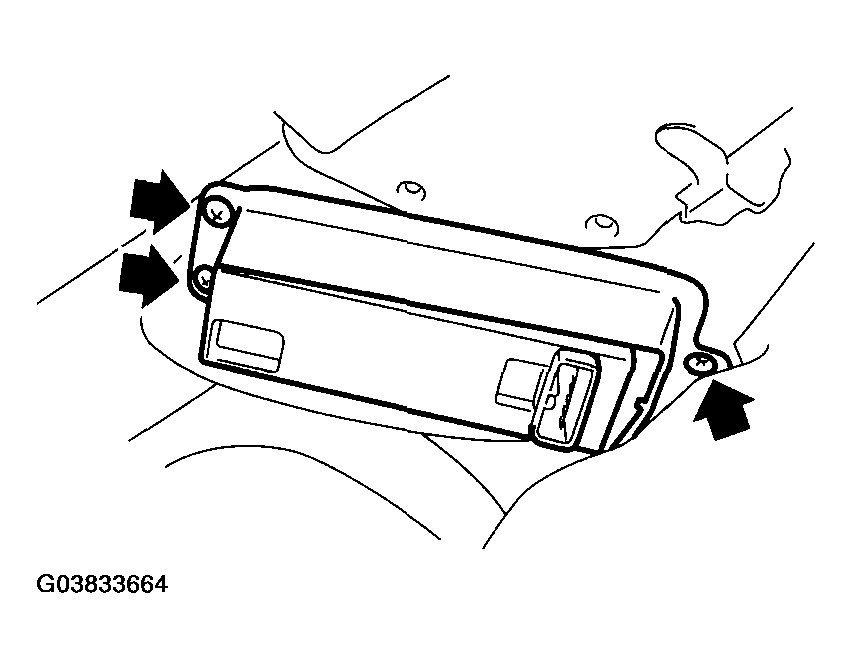

    Fig 1: Removing Screws From Reverse Side Of Front Door Trim
    G03833664Courtesy of SUBARU OF AMERICA, INC.
