Rear Regulator and Motor Assembly: Removal

Remove the rear door glass. < Ref. to REMOVAL , Rear Door Glass. >

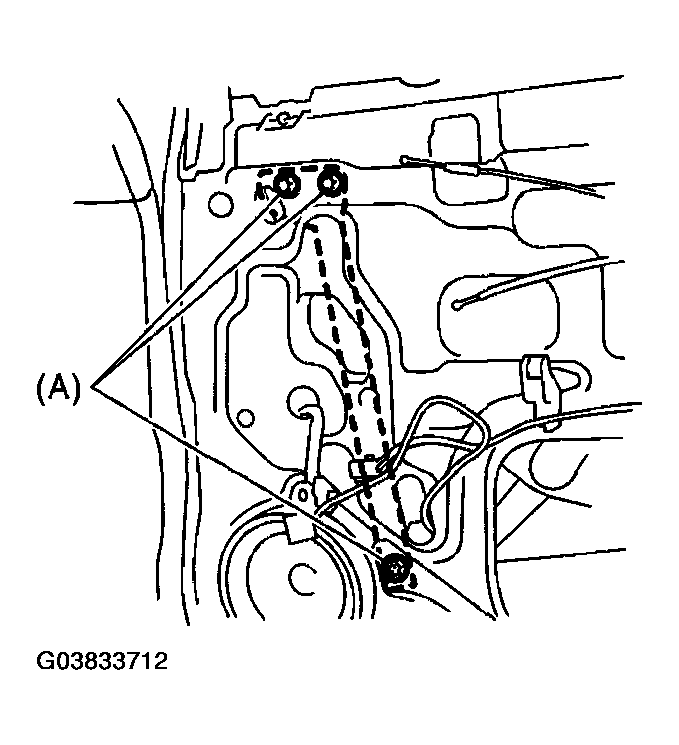

Remove the nut (A) to remove front sash.

Fig 1: Removing Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.
Remove the four bolts and two nuts to remove regulator assembly.

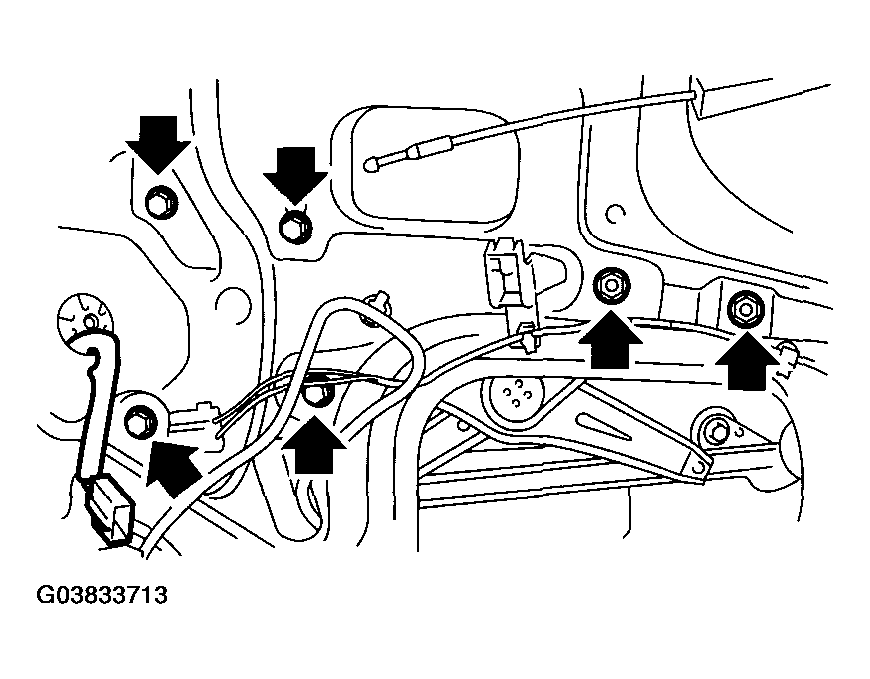

Fig 2: Removing Four Bolts And Two Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws to remove motor assembly.

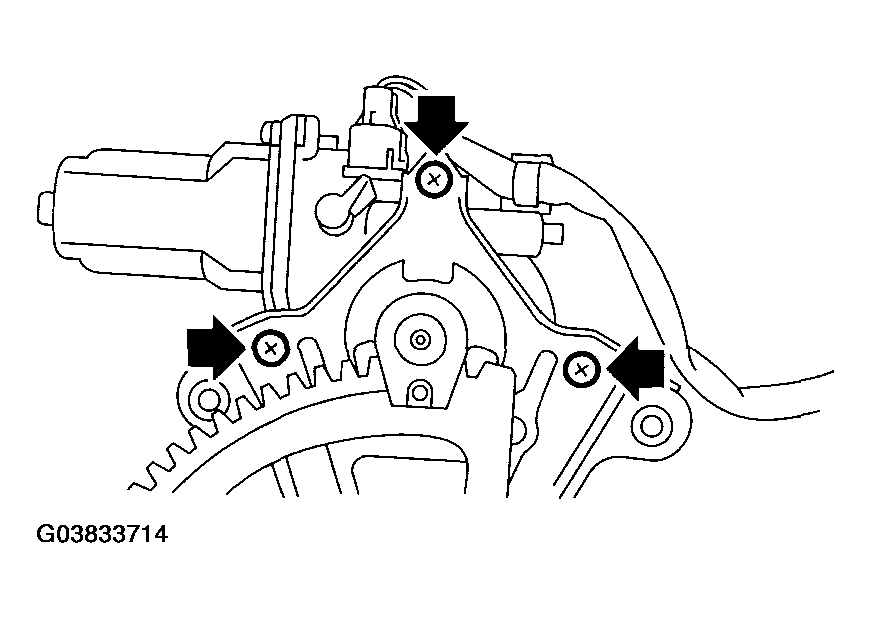

Fig 3: Removing Screws To Remove Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
