Rearview Mirror: Removal

  1. Remove the TORX® screw (1).
  2. Slide the rearview mirror (2) to the upper side of windshield glass (3), and remove the rearview mirror (2) from button (4).

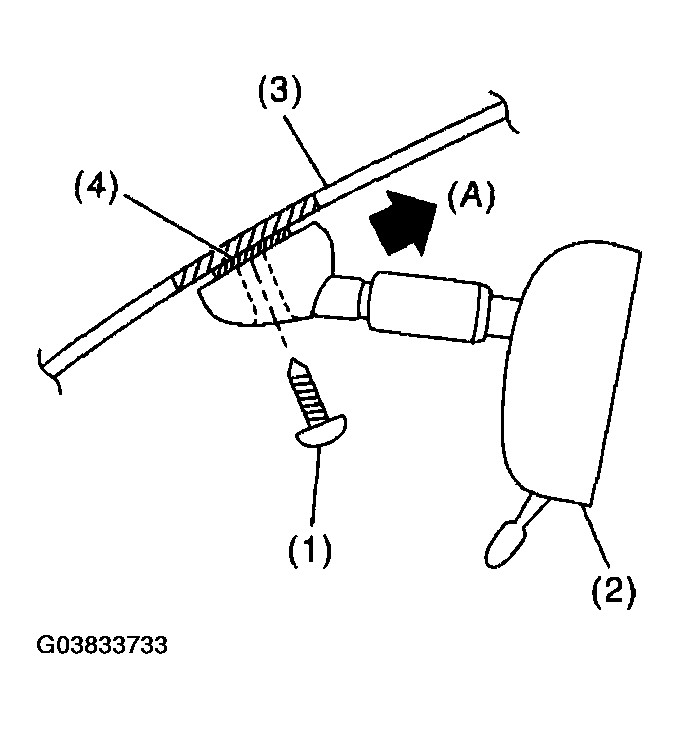

Fig 1: Removing Rearview Mirror From Button
G03833733Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Be careful not to damage the mirror surface.
  • Be careful not to damage the windshield glass.
