Starting/Charging Systems (H4SO): Generator: Installation

Install in the reverse order of removal.

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

< Ref. to  INSPECTION  , V-belt for (H4SO model),  INSPECTION  , V-belt for (H4DOTC model) or  INSPECTION  , V-belt for (H6DO model).

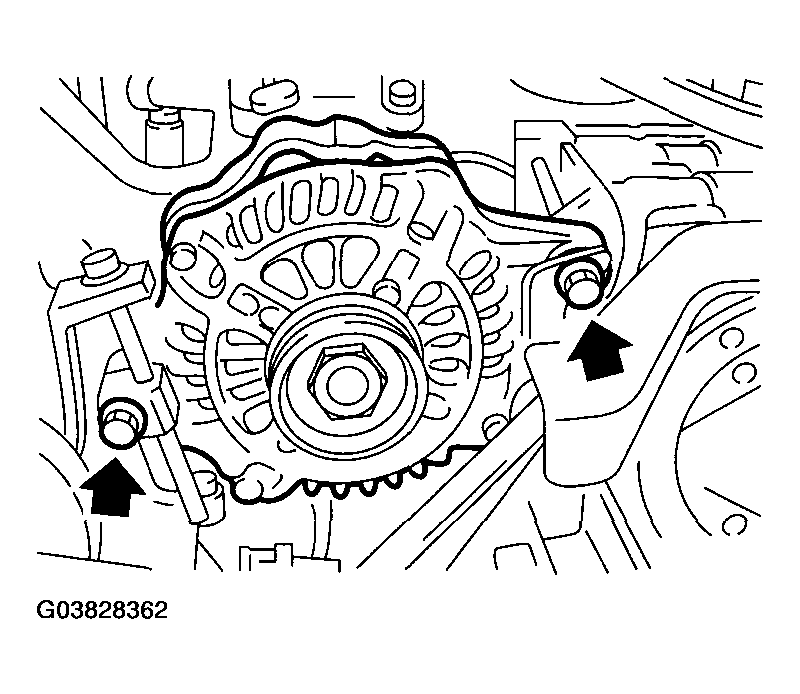

Fig 1: Installing Bolts To Generator Onto Bracket

Courtesy of SUBARU OF AMERICA, INC.
