Camshaft Position Sensor: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

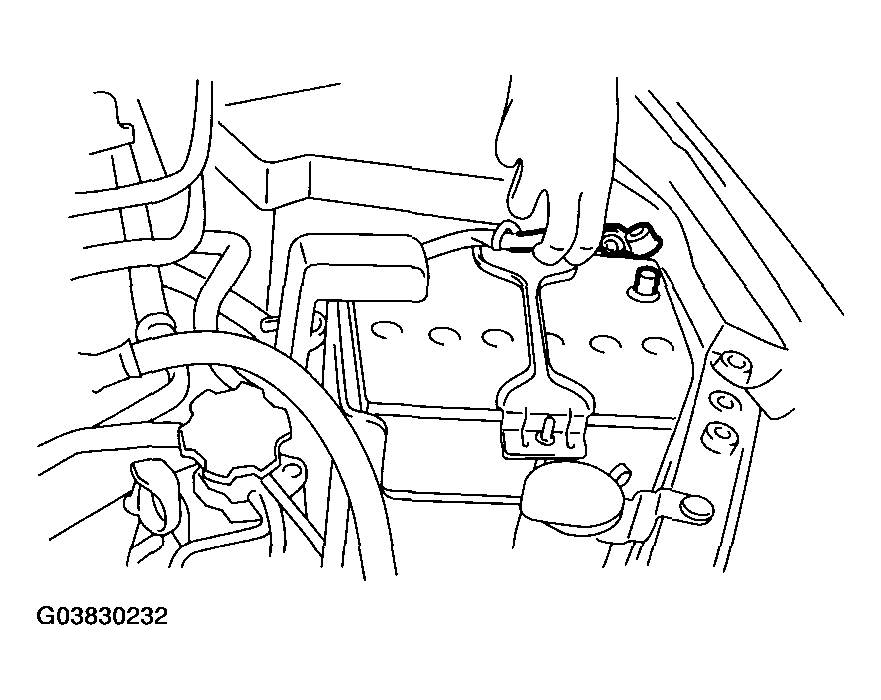

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator harness from fuel pipe protector LH.
Remove the fuel pipe protector LH.

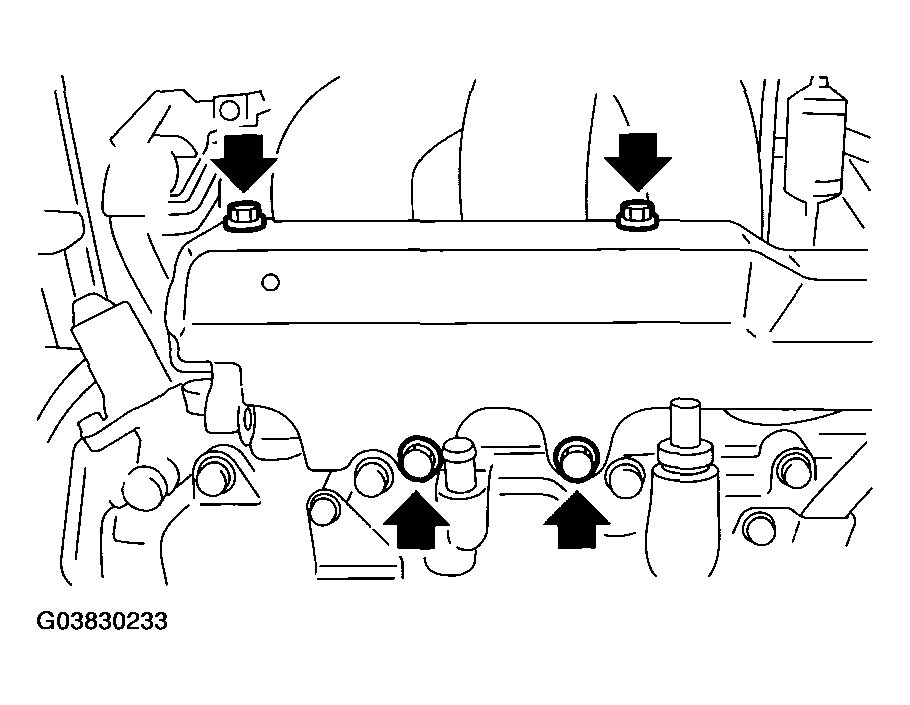

Fig 2: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor LH.

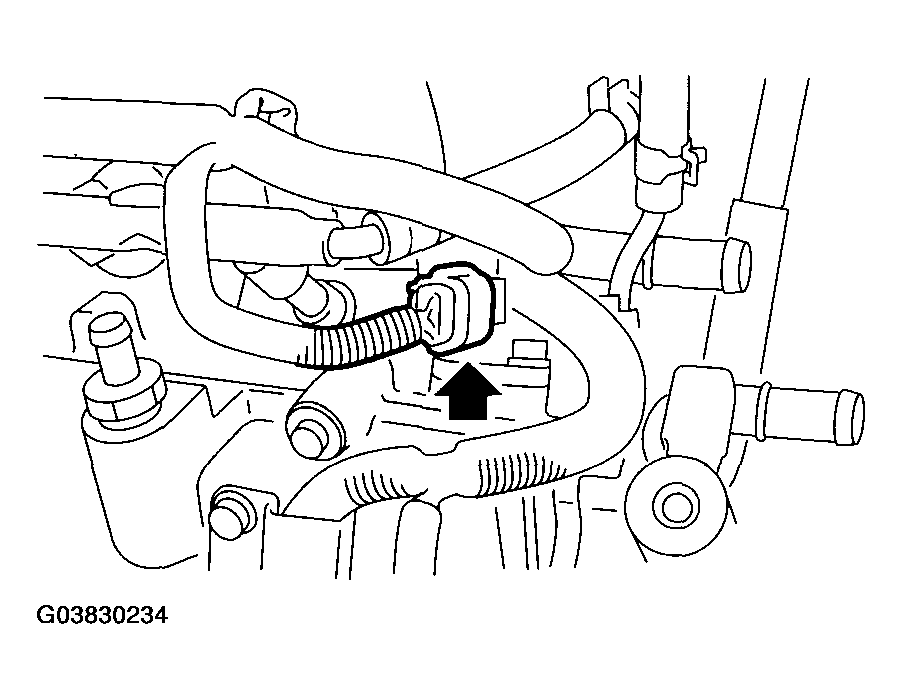

Fig 3: Disconnecting Connector From Camshaft Position Sensor LH
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor LH.

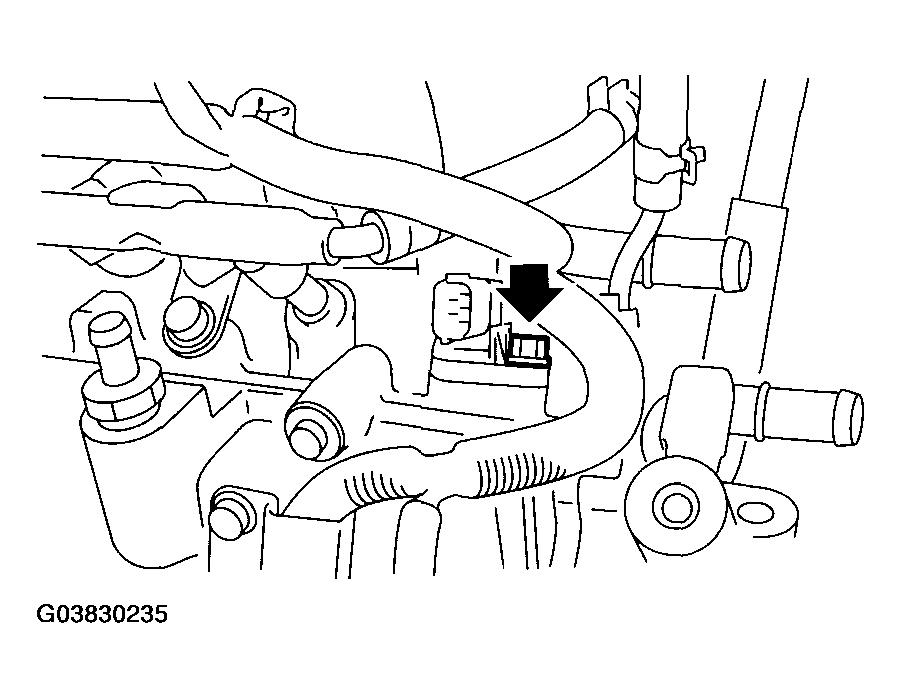

Fig 4: Removing Camshaft Position Sensor LH
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor RH in the same procedure as LH.
