Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

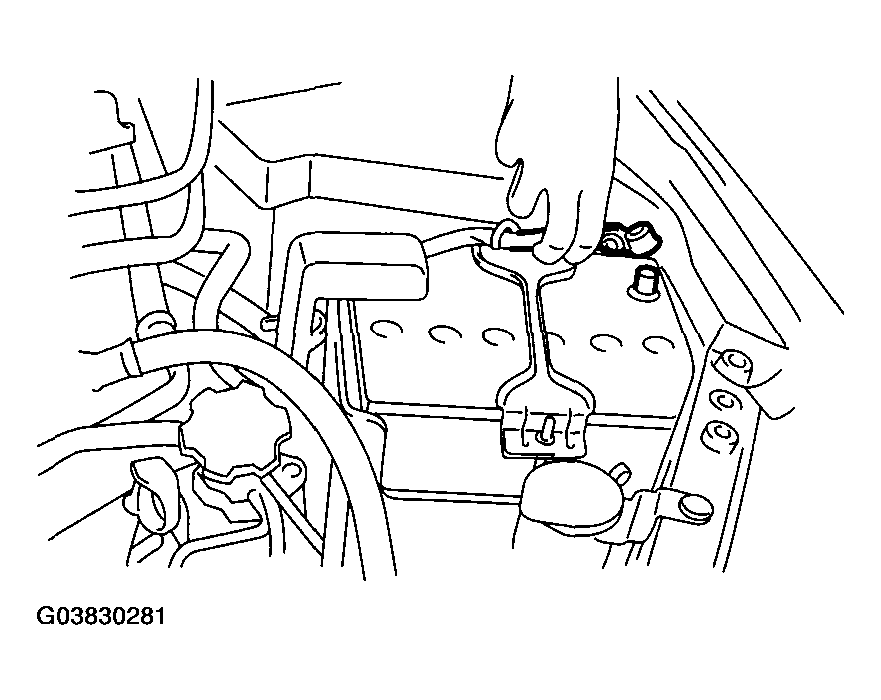

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of passenger's side. < Ref. to REMOVAL , Lower Inner Trim. >
Detach the floor mat of front passenger seat.
Remove the protect cover.

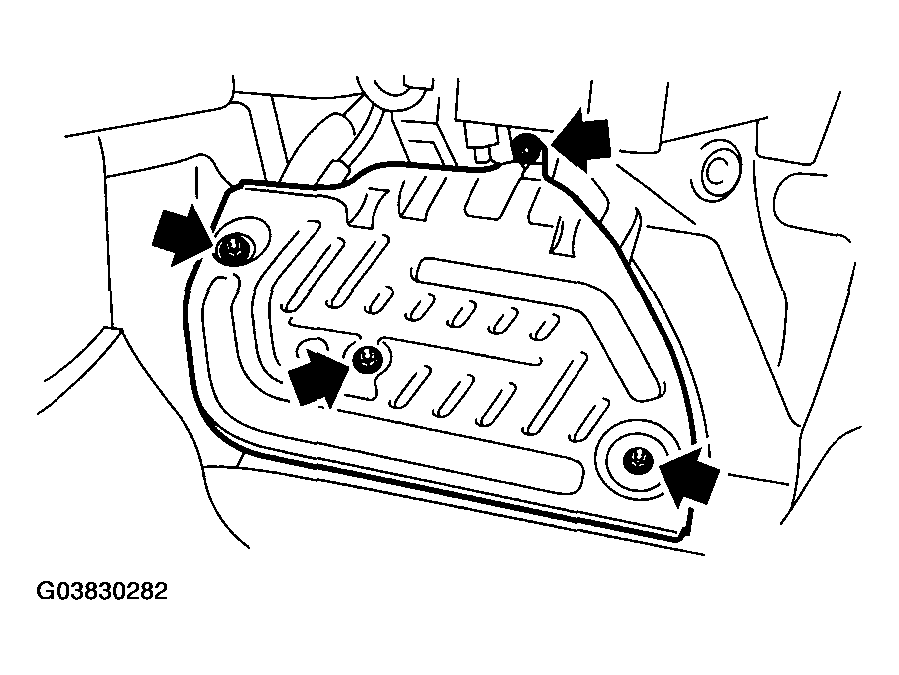

Fig 2: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold ECM to bracket.
Remove the clip (A) from bracket.

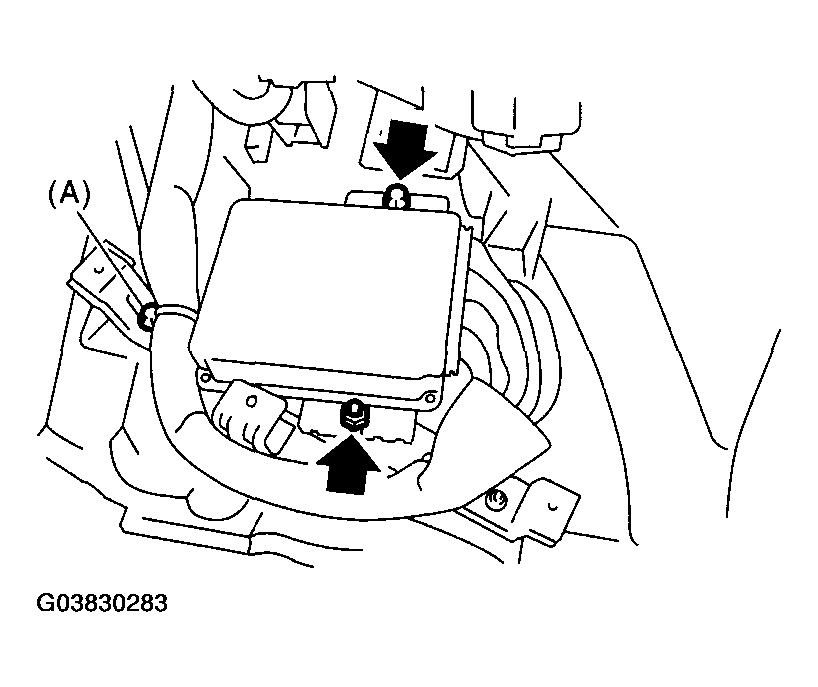

Fig 3: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors, and take out the ECM.
