Engine Coolant Temperature Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

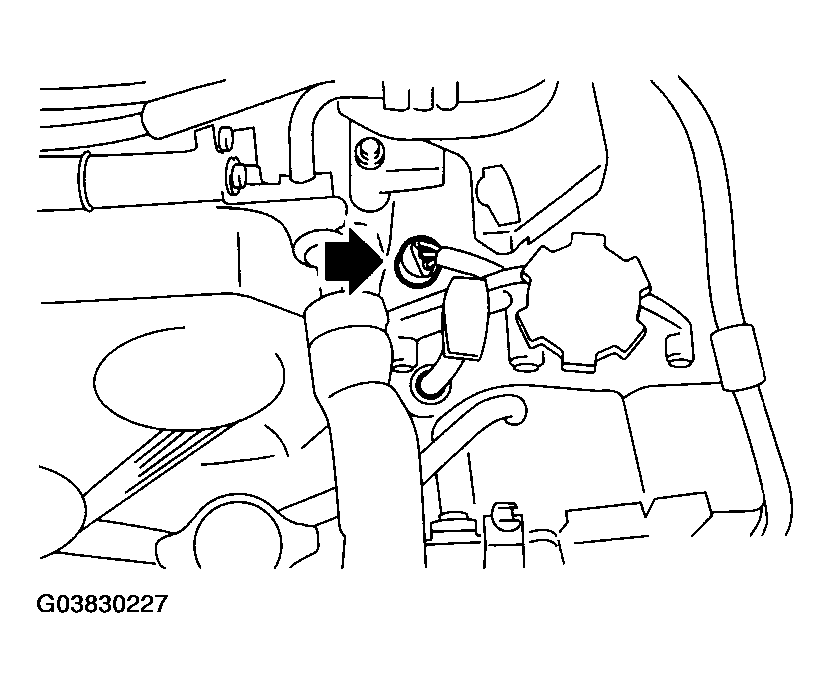

Fig 1: Installing Engine Coolant Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
