Fuel Filler Pipe: Assembly

Install the shut valve to fuel filler pipe. < Ref. to INSTALLATION , Shut Valve. >
Tighten the nut which holds the evaporation pipe assembly to fuel filler pipe.

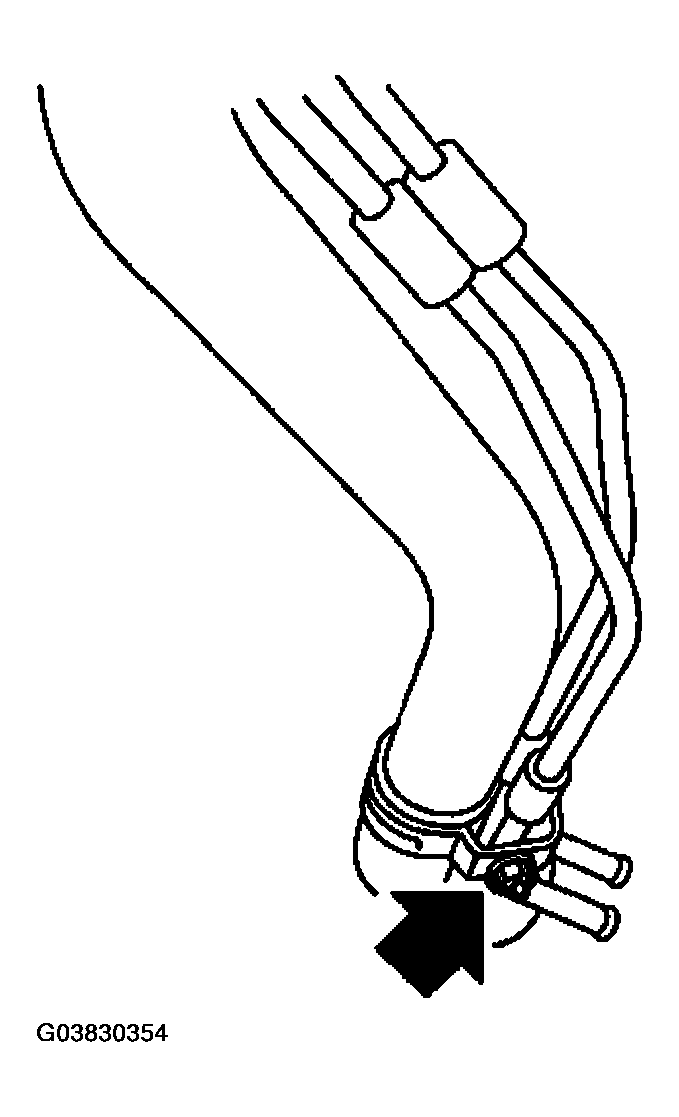

Fig 1: Tightening Nut Holding Evaporation Pipe Assembly To Fuel Filler Pipe (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

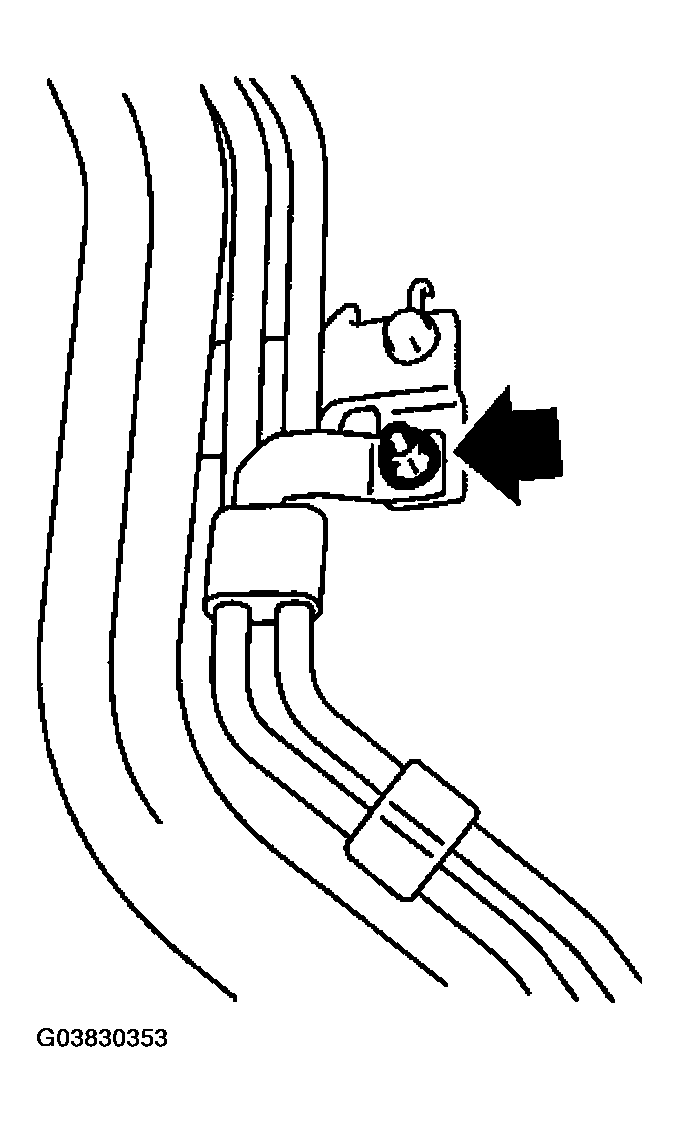

Fig 2: Tightening Nut Holding Evaporation Pipe Assembly To Fuel Filler Pipe (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Connect the evaporation hose to shut valve.

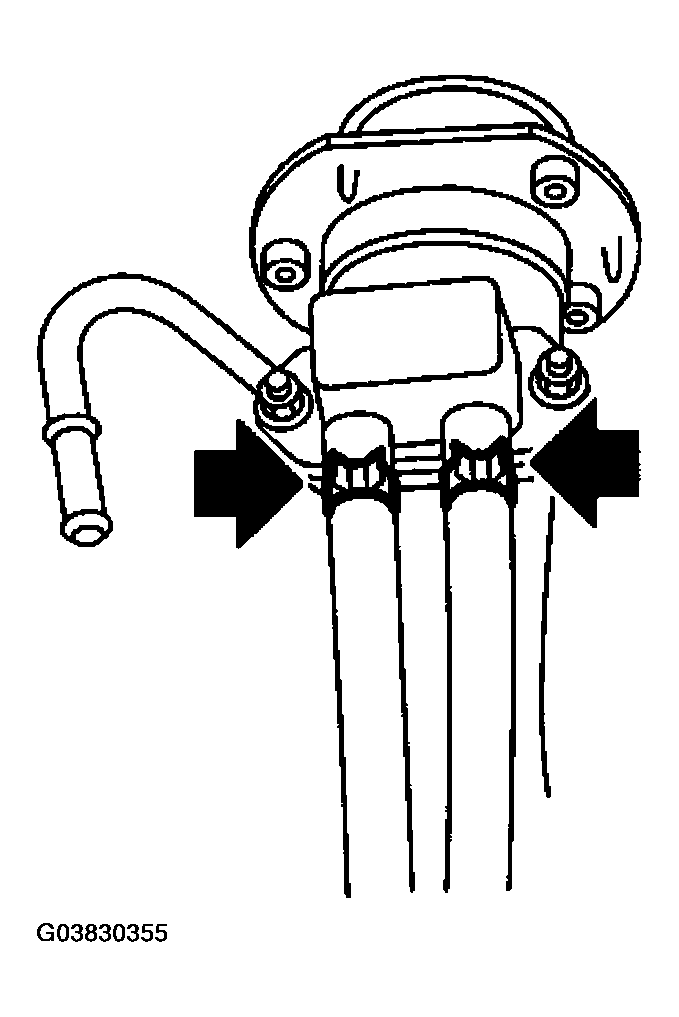

Fig 3: Connecting Evaporation Hose To Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
