Fuel Filler Pipe: Disassembly

Move the clamp, and disconnect the evaporation hose from shut valve.

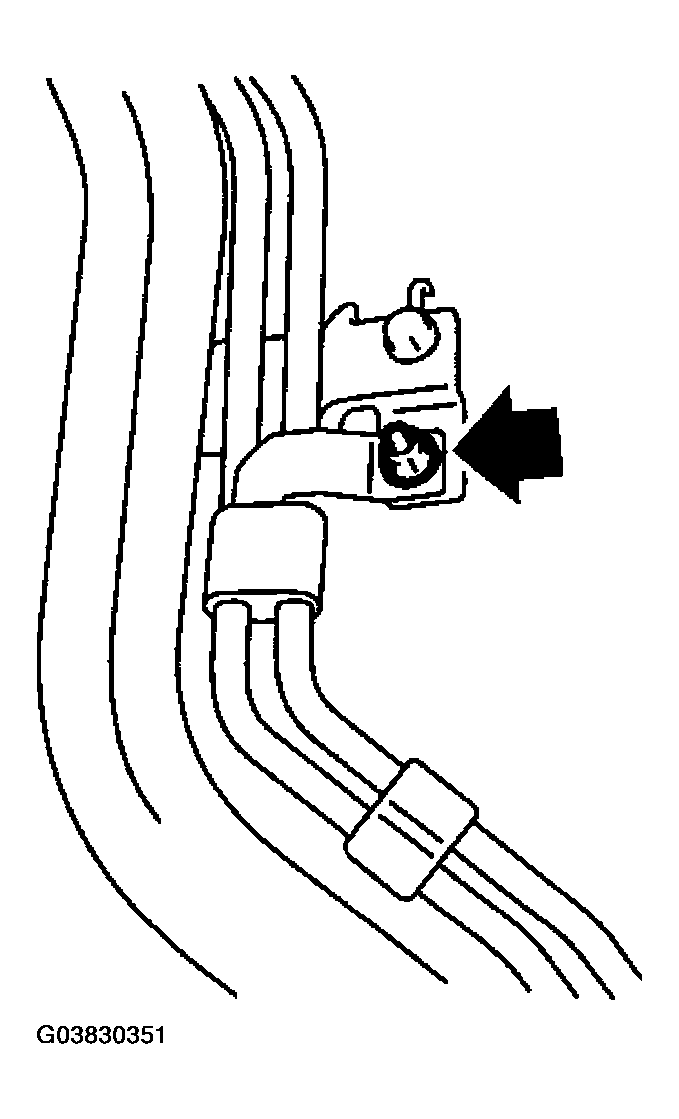

Fig 1: Disconnecting Evaporation Hose From Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut which holds the evaporation pipe assembly to fuel filler pipe.

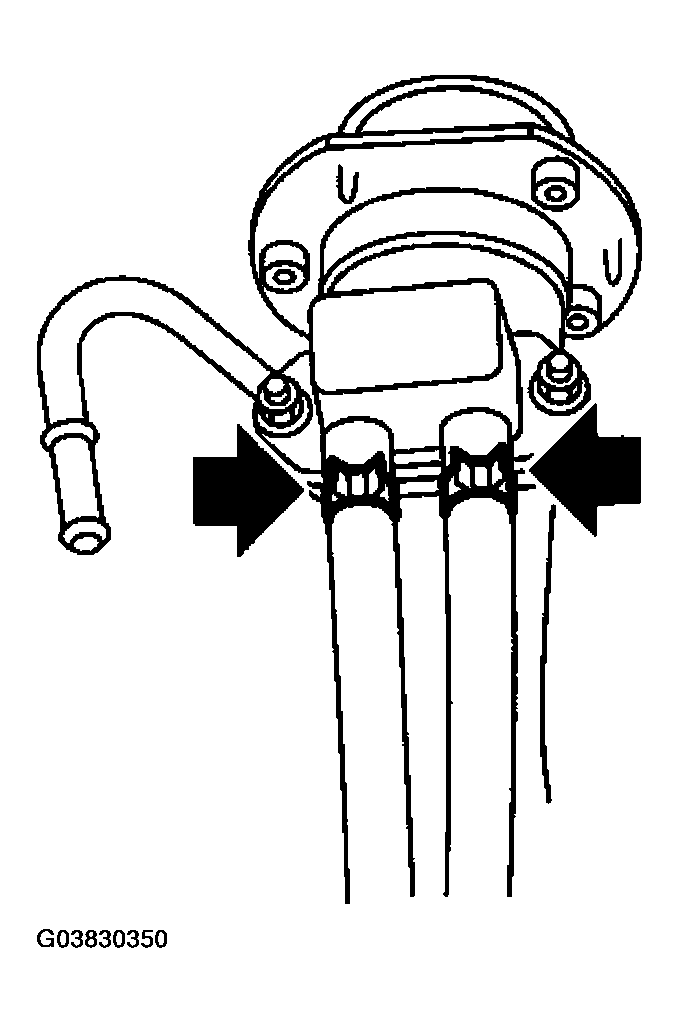

Fig 2: Removing Nut Holding Evaporation Pipe Assembly To Fuel Filler Pipe (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

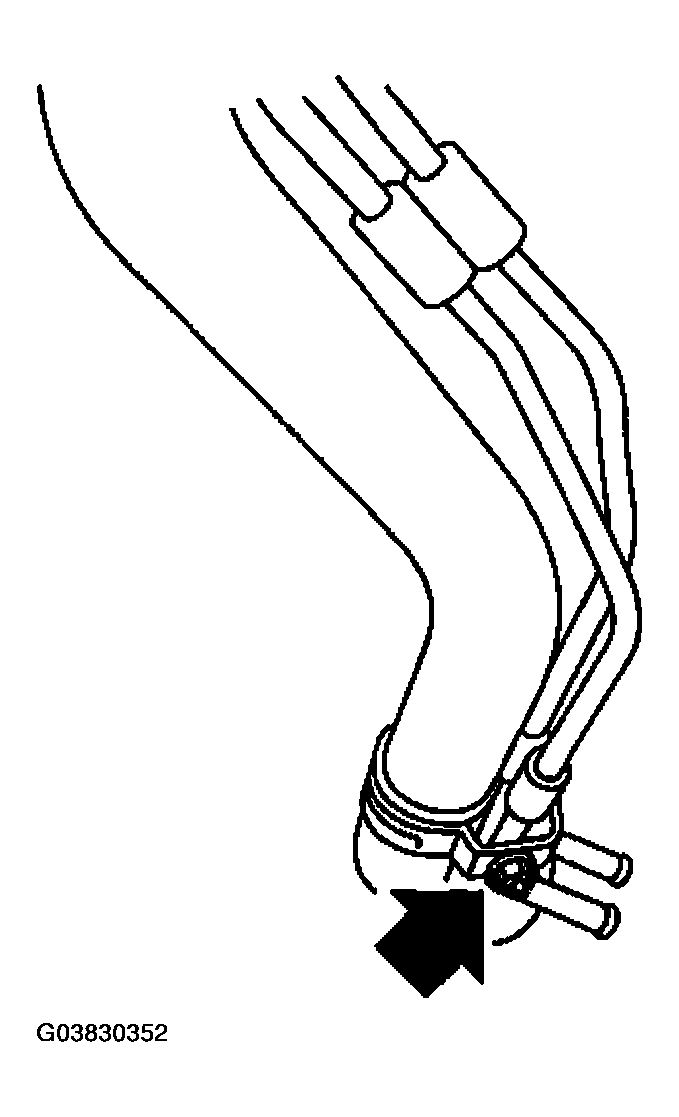

Fig 3: Removing Nut Holding Evaporation Pipe Assembly To Fuel Filler Pipe (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove the shut valve from fuel filler pipe. < Ref. to REMOVAL , Shut Valve. >
