RH Side

Remove the collector cover.
Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

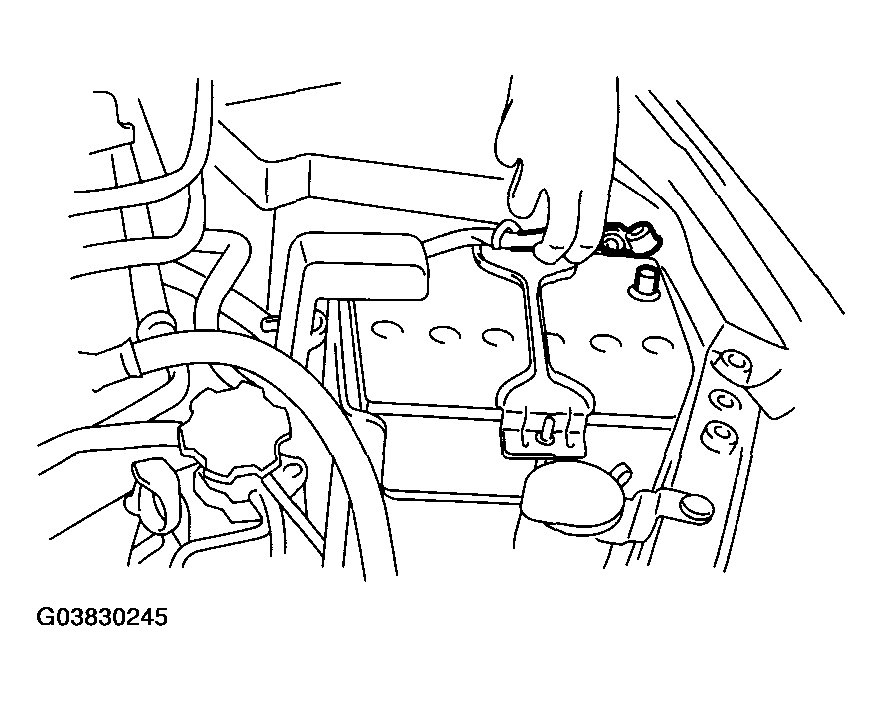

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
Remove the fuel pipe protector RH.

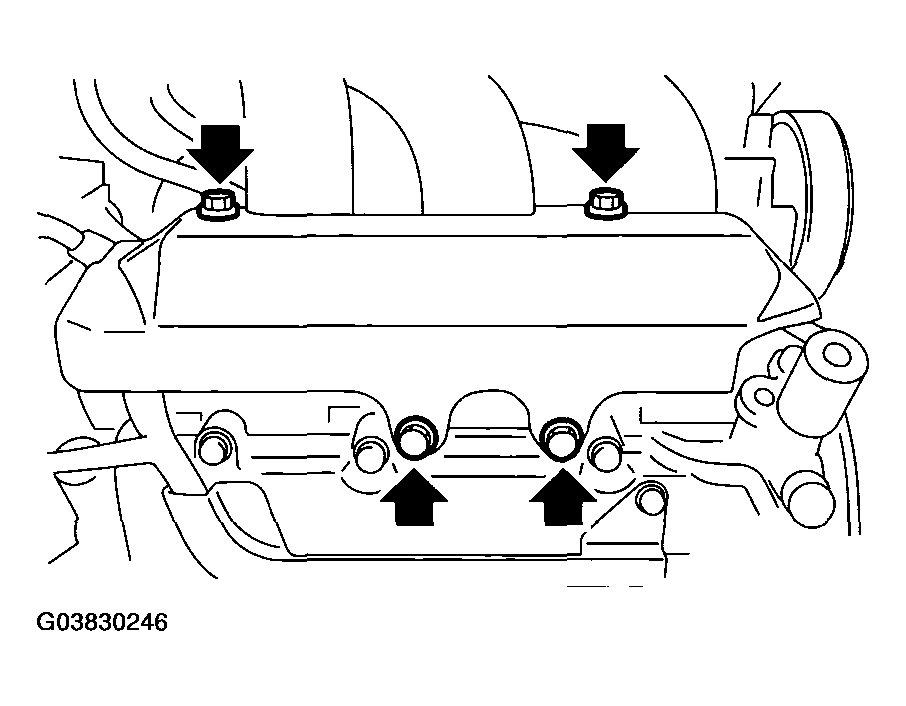

Fig 2: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from fuel injector.

Fig 3: Disconnecting Connectors From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from fuel injector pipe RH.
Remove the bolts which hold fuel injector pipe onto intake manifold.

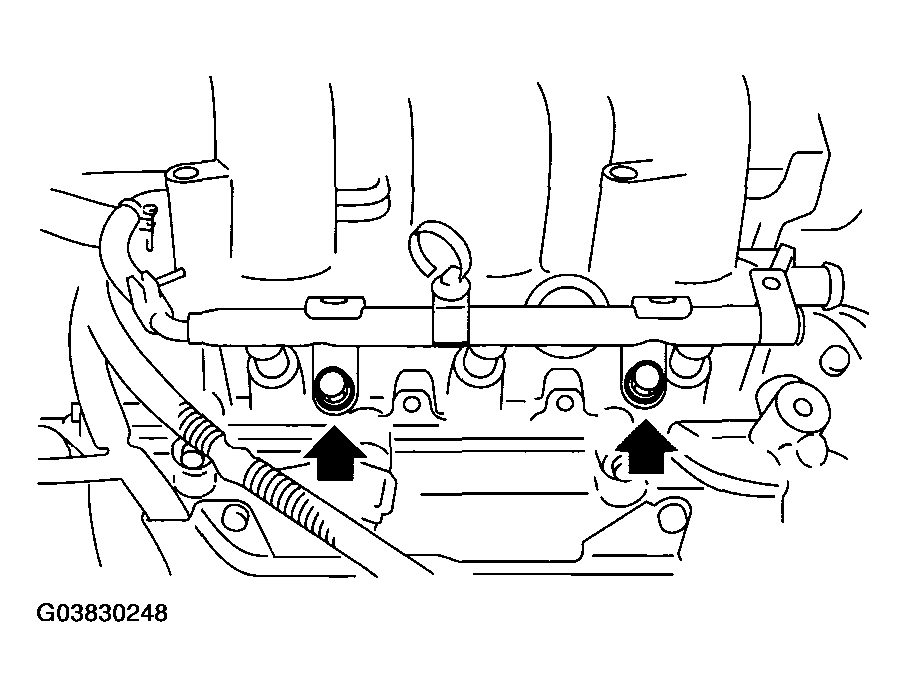

Fig 4: Removing Fuel Injector Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector while lifting up the fuel injector pipe.
