Fuel Level Sensor: Removal
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
NOTE:
Fuel level sensor is built in fuel pump assembly.
- Remove the fuel pump assembly. < Ref. to , REMOVAL , Fuel Pump. >

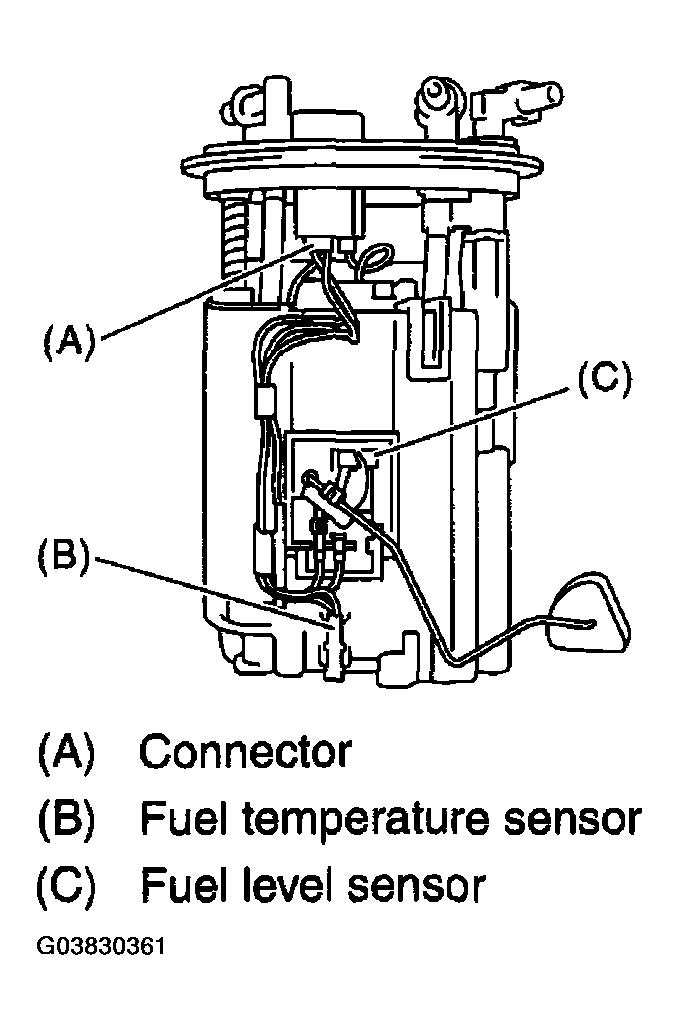

- Disconnect the connector from fuel pump bracket.
- Remove the fuel temperature sensor.
- Remove the fuel level sensor.
