Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.

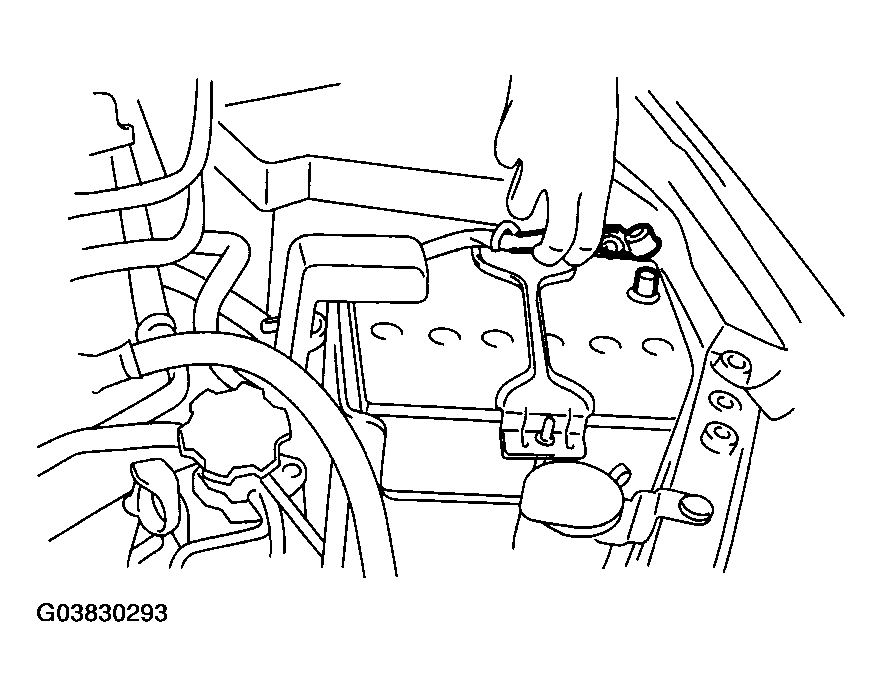

    Fig 1: Disconnecting Ground Cable From Battery
    G03830293Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rear quarter trim. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the fuel pump control unit.
    • Wagon model

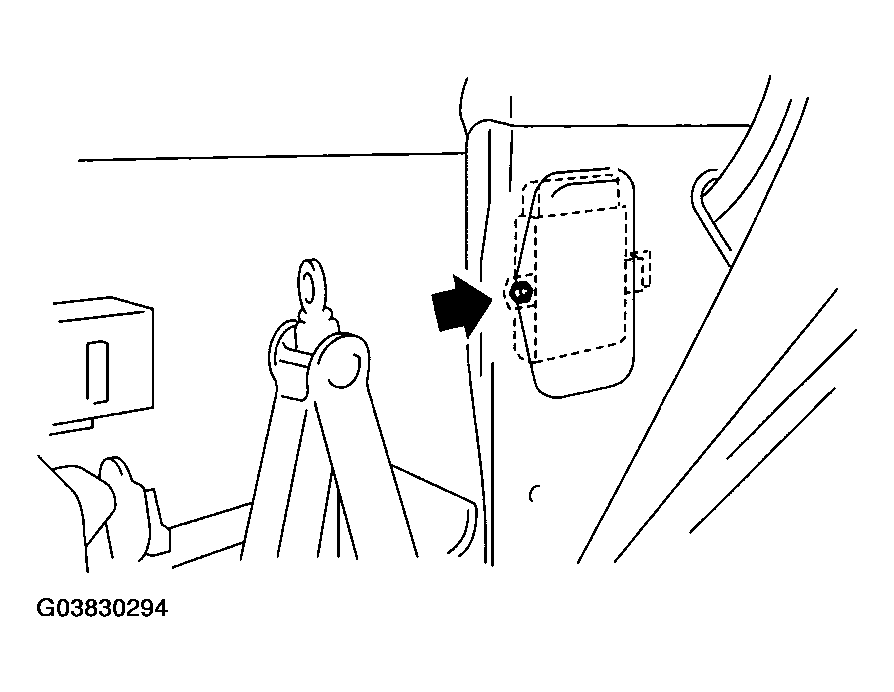

      Fig 2: Removing Fuel Pump Control Unit (Wagon Model)
      G03830294Courtesy of SUBARU OF AMERICA, INC.
    • Sedan model

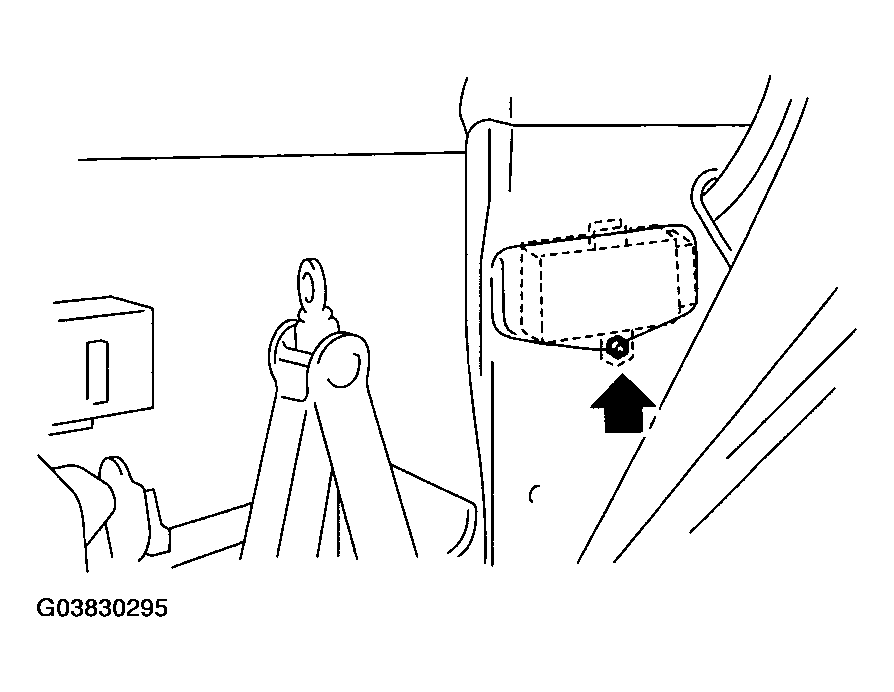

    Fig 3: Removing Fuel Pump Control Unit (Sedan Model)
    G03830295Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from fuel pump control unit.
