Fuel Pump: Installation

Install in the reverse order of removal.

1. Ensure the sealing portion is free from fuel or foreign particles before installation.
2. Tighten the nuts to specified torque in the order as shown in Fig 1 .

Tightening torque:

4.4 N.m (0.45 kgf-m, 3.2 ft-lb)

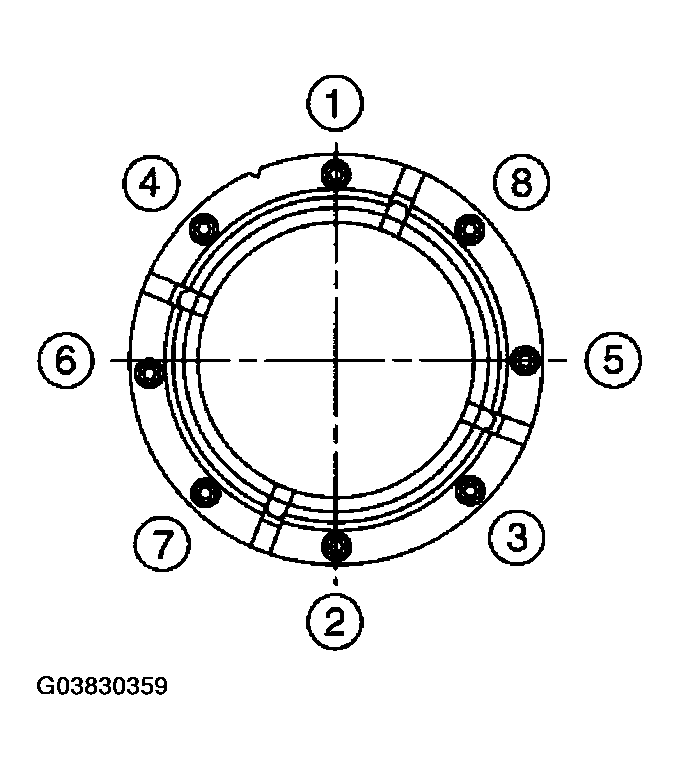

Fig 1: Identifying Fuel Pump Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.
