Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

1. Ensure the sealing portion is free from fuel or foreign particles before installation.
2. Tighten the nuts and bolts to specified torque in the order as shown in Fig 1 .

Tightening torque:

4.4 N.m (0.45 kgf-m, 3.2 ft-lb)

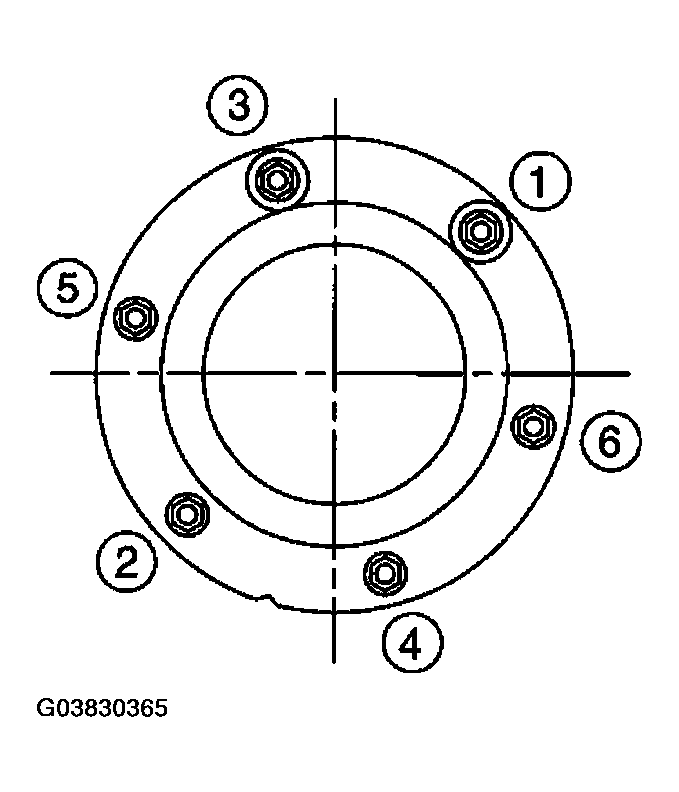

Fig 1: Identifying Fuel Sub Level Sensor Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

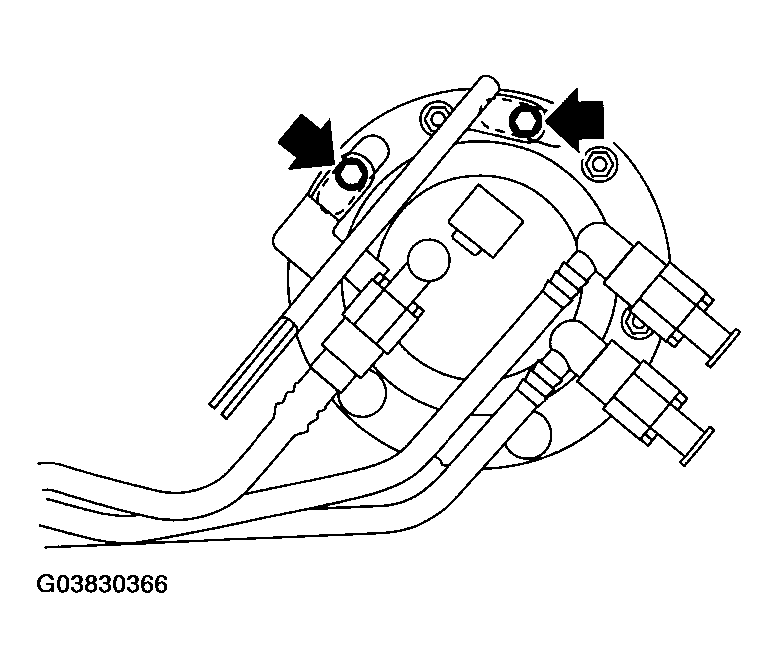

Fig 2: Installing Fuel Sub Level Sensor

Courtesy of SUBARU OF AMERICA, INC.
