Releasing Of Fuel Pressure

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Remove the fuse of fuel pump from main fuse box.

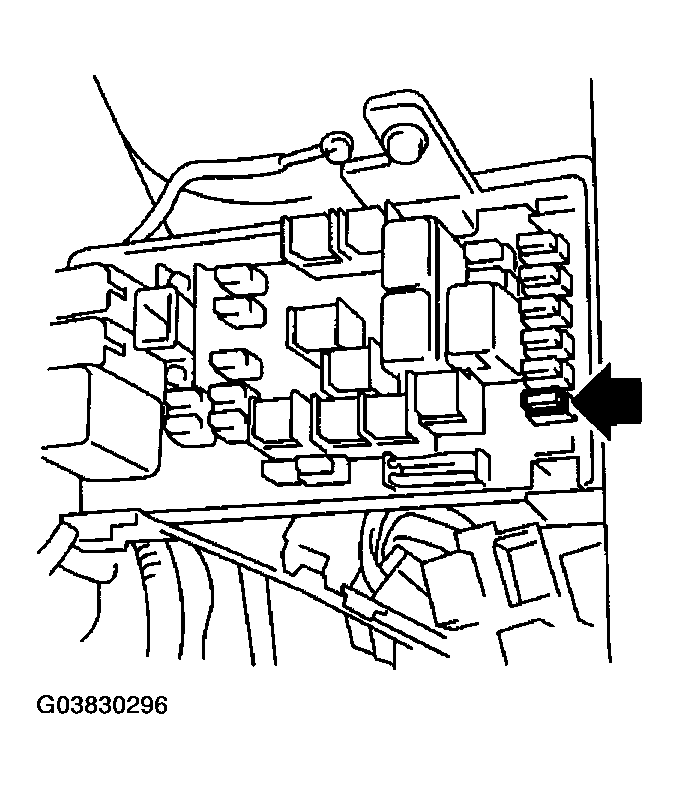

    Fig 1: Removing Fuse Of Fuel Pump From Main Fuse Box
    G03830296Courtesy of SUBARU OF AMERICA, INC.
  2. Start the engine and run until it stalls.
  3. After the engine stalls, crank it for five more seconds.
  4. Turn the ignition switch to OFF.
