Intake Manifold: Assembly

Liquid gasket:

THREE BOND 1105 (Part No. 004403010)

1. Tighten the bolts which install fuel pipes on intake manifold.

   Tightening torque:

   5 N.m (0.5 kgf-m, 3.6 ft-lb)

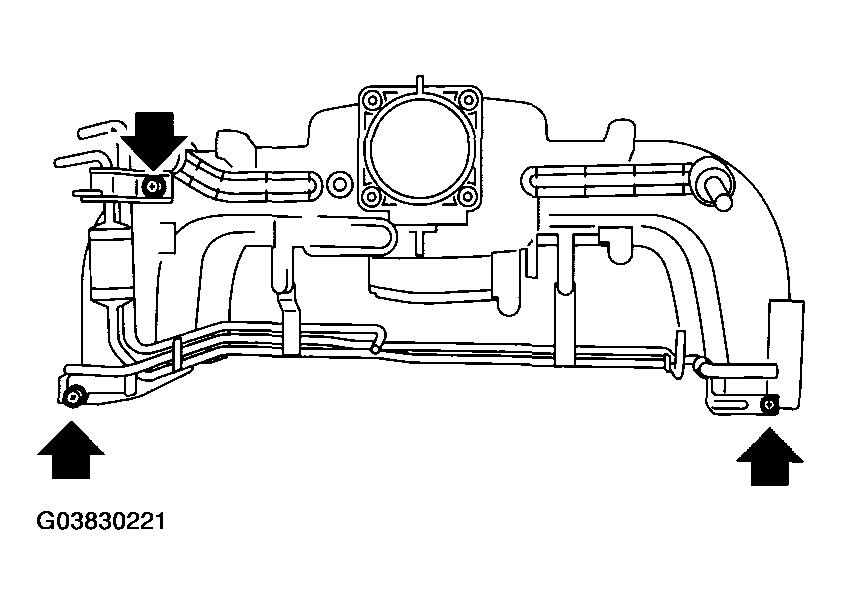

   Fig 1: Tightening Fuel Pipes Bolts (1 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.

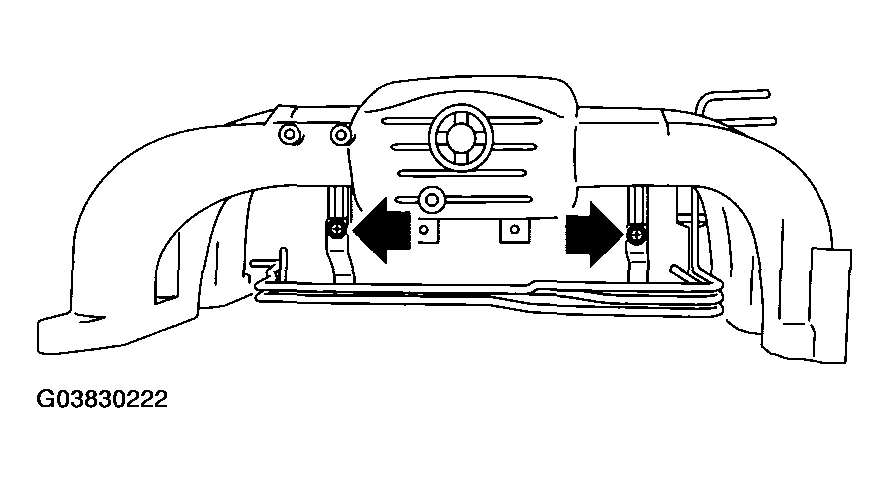

   Fig 2: Tightening Fuel Pipes Bolts (2 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.
2. Connect the fuel injector pipe to fuel hose, and tighten the clamp screw.

   Tightening torque:

   1.5 N.m (0.15 kgf-m, 1.1 ft-lb)

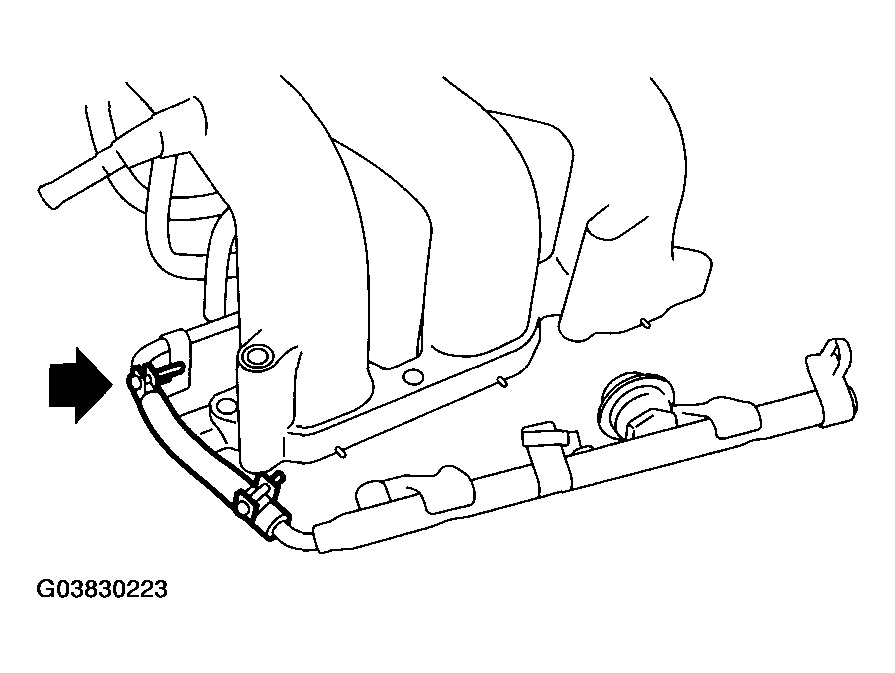

   Fig 3: Tightening Clamp Screw

   Courtesy of SUBARU OF AMERICA, INC.
3. Install the purge control solenoid valve. < Ref. to INSTALLATION , Purge Control Solenoid Valve. >
4. Install the manifold absolute pressure sensor. < Ref. to , INSTALLATION , Manifold Absolute Pressure Sensor. >
5. Connect the pressure regulator vacuum hose to intake manifold.

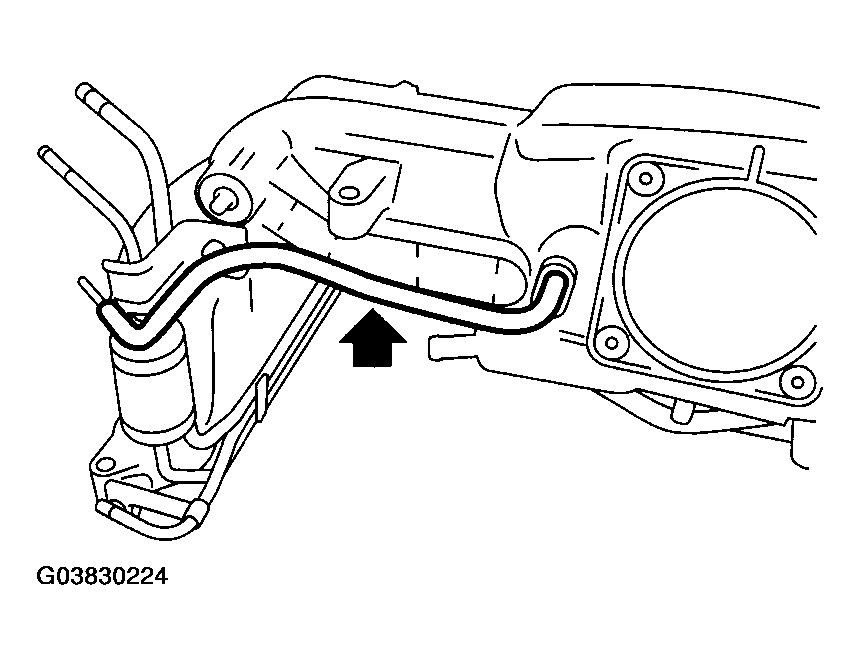

   Fig 4: Connecting Pressure Regulator Vacuum Hose

   Courtesy of SUBARU OF AMERICA, INC.
6. Install the throttle body to intake manifold. < Ref. to , INSTALLATION , Throttle Body. >
7. Install the engine harness to intake manifold.
