Intake Manifold: Disassembly

Remove the engine harness from intake manifold.
Remove the throttle body. < Ref. to , REMOVAL , Throttle Body. >
Disconnect the pressure regulator vacuum hose from intake manifold.

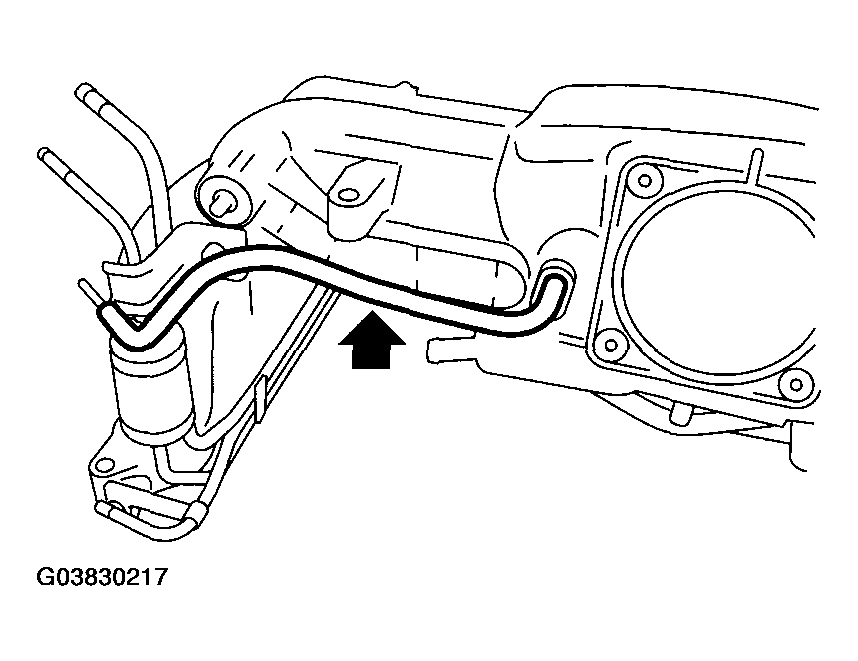

Fig 1: Disconnecting Pressure Regulator Vacuum Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the manifold absolute pressure sensor. < Ref. to , REMOVAL , Manifold Absolute Pressure Sensor. >
Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >
Loosen the clamp which holds fuel injector pipe to fuel hose, and then disconnect the pipe from fuel hose.

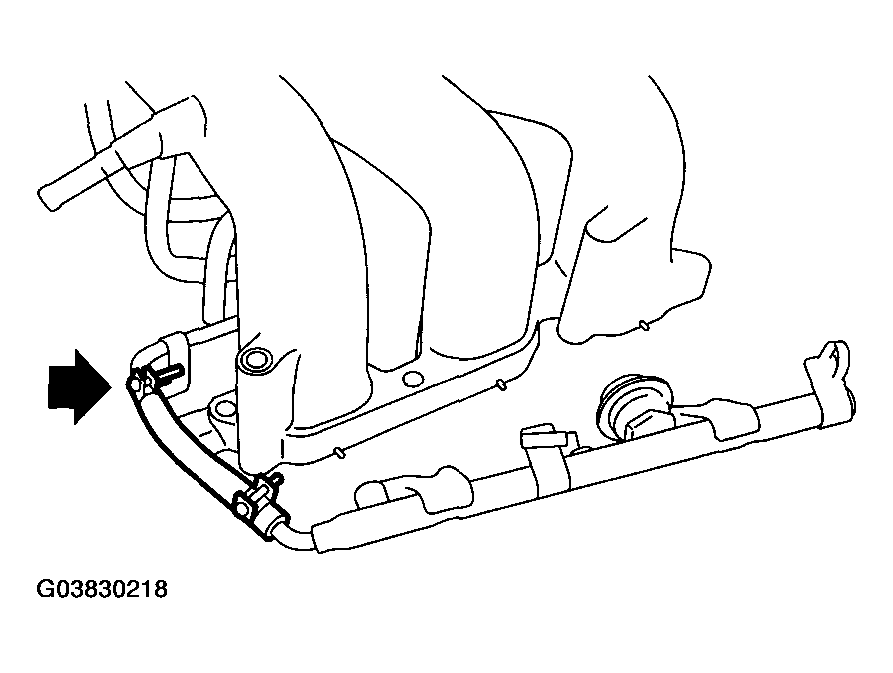

Fig 2: Loosening Fuel Injector Pipe Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install fuel pipes on intake manifold.

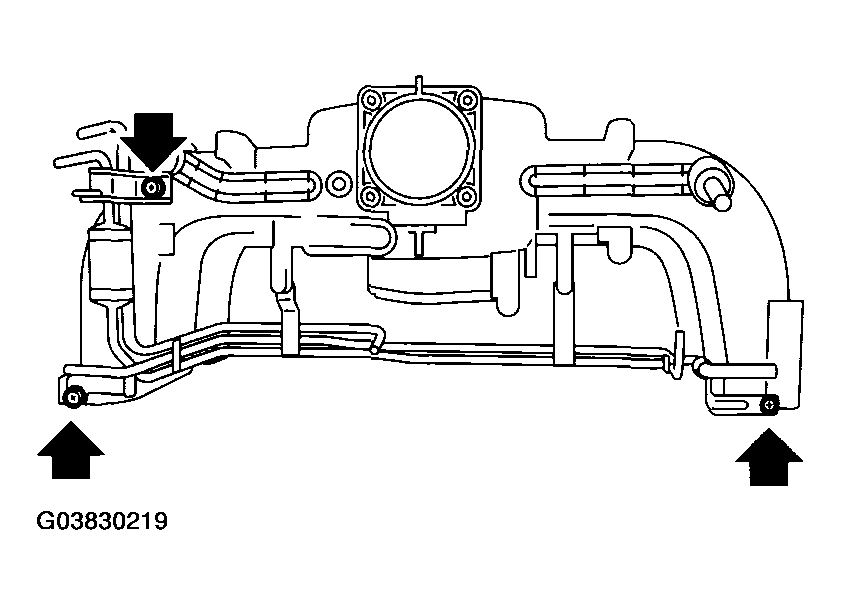

Fig 3: Removing Fuel Pipes Bolt (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

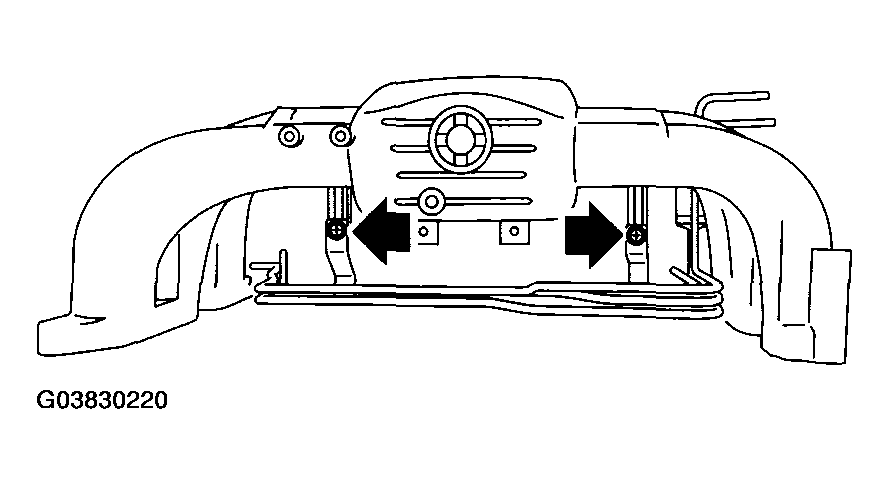

Fig 4: Removing Fuel Pipes Bolt (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
