Knock Sensor: Installation

Install the knock sensor to cylinder block.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

NOTE: For the knock sensor's installation angle, refer to the figure shown in Fig 1.

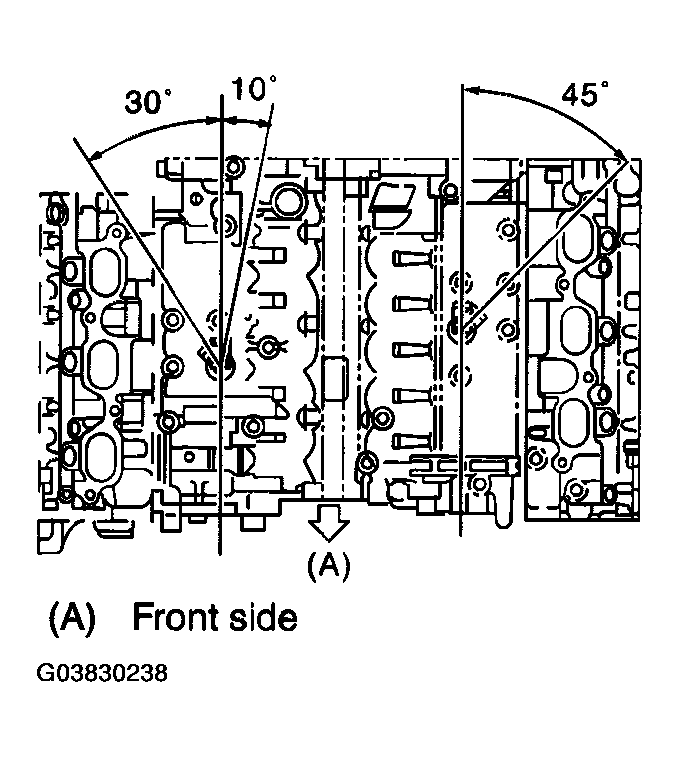

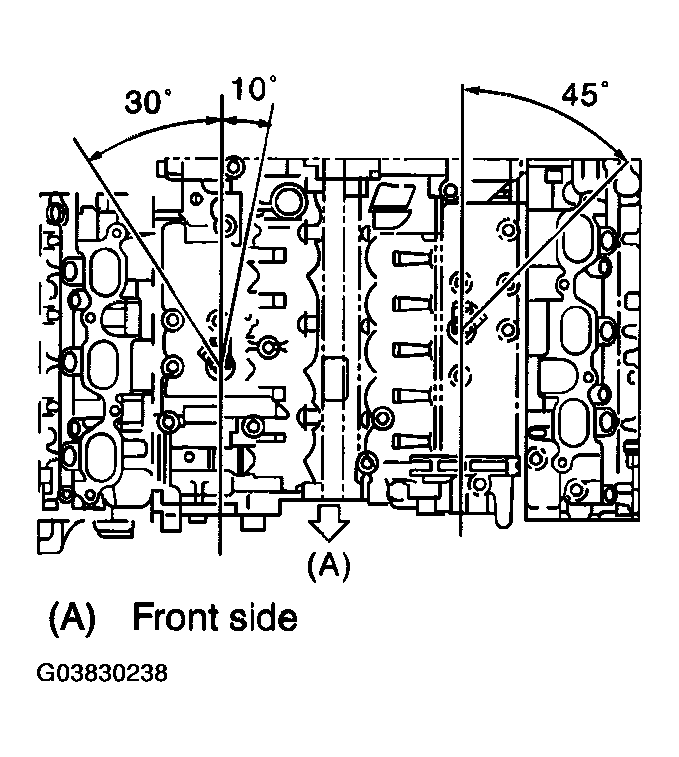

Fig 1: Identifying Knock Sensor'S Installation Angle
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.
Install the intake manifold. < Ref. to , INSTALLATION , Intake Manifold. >
Connect the battery ground cable to battery.

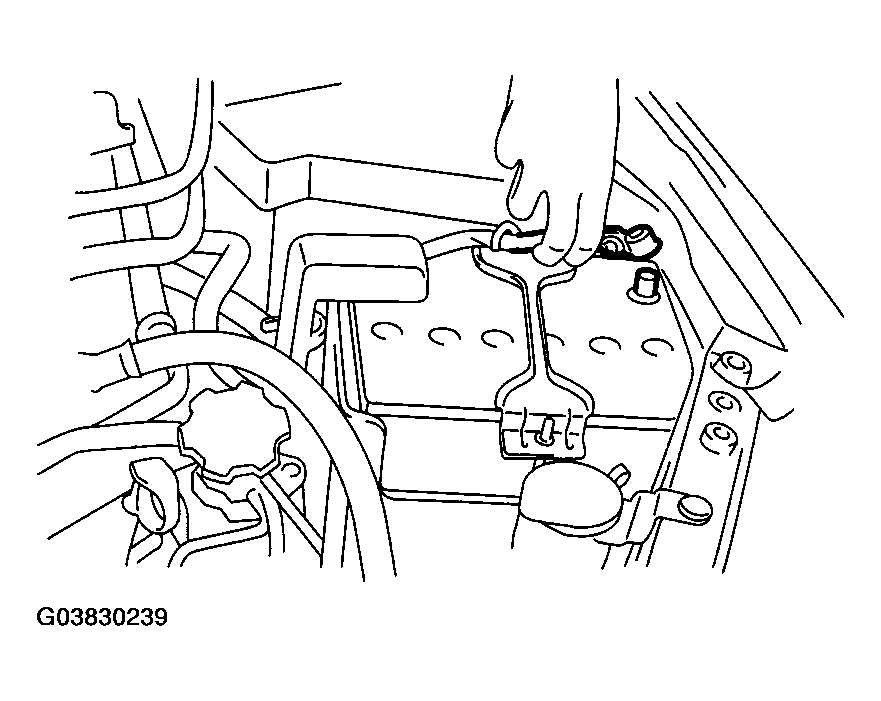

Fig 2: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
