Main Relay: Removal

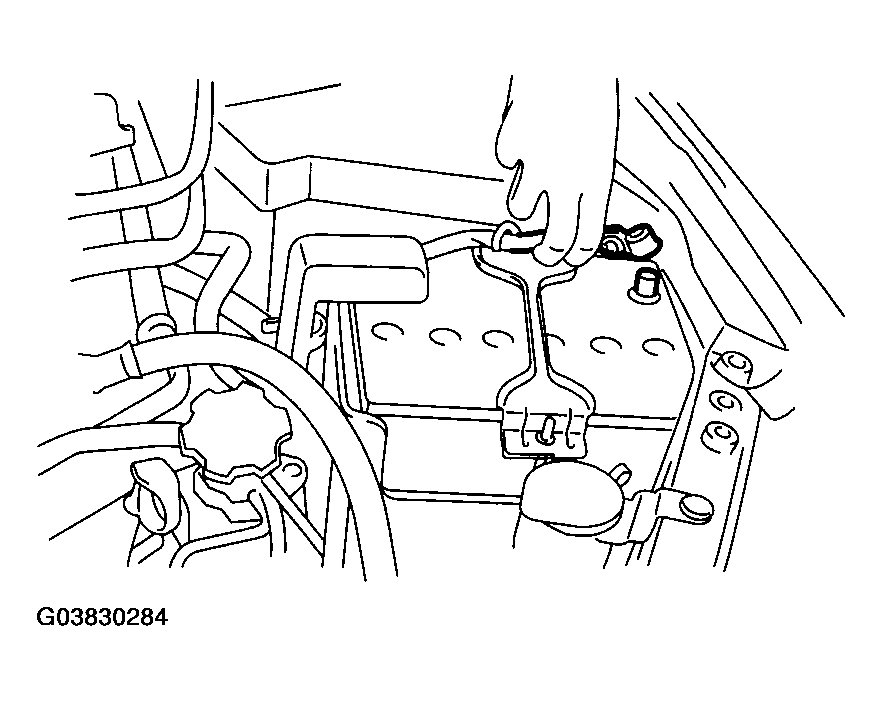

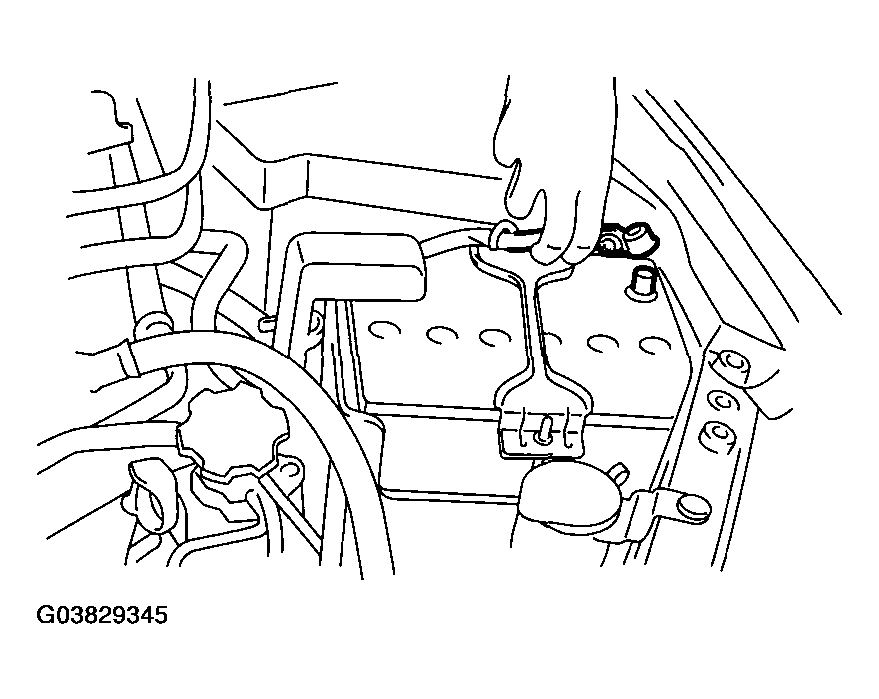

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box. >

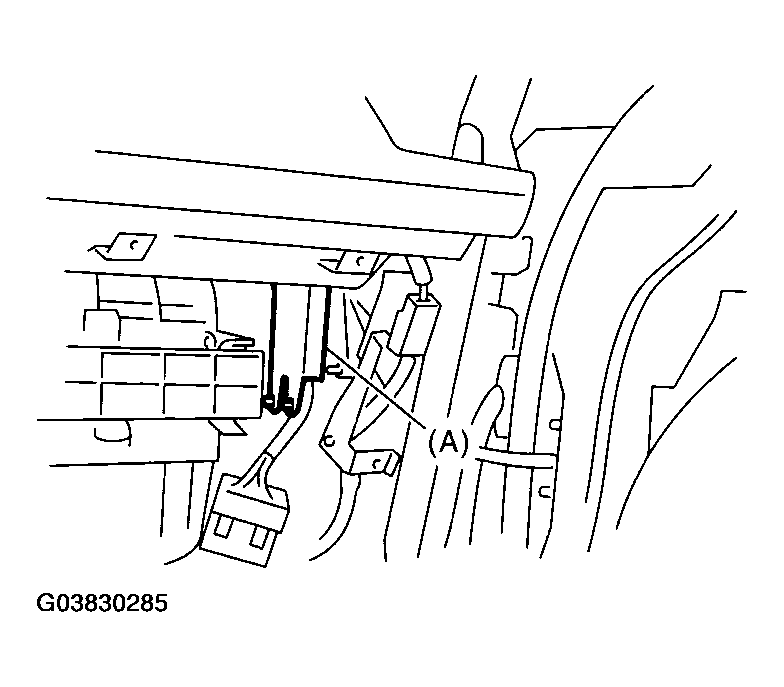

Remove the harness cover (A).

Fig 2: Removing Harness Cover
Courtesy of SUBARU OF AMERICA, INC.

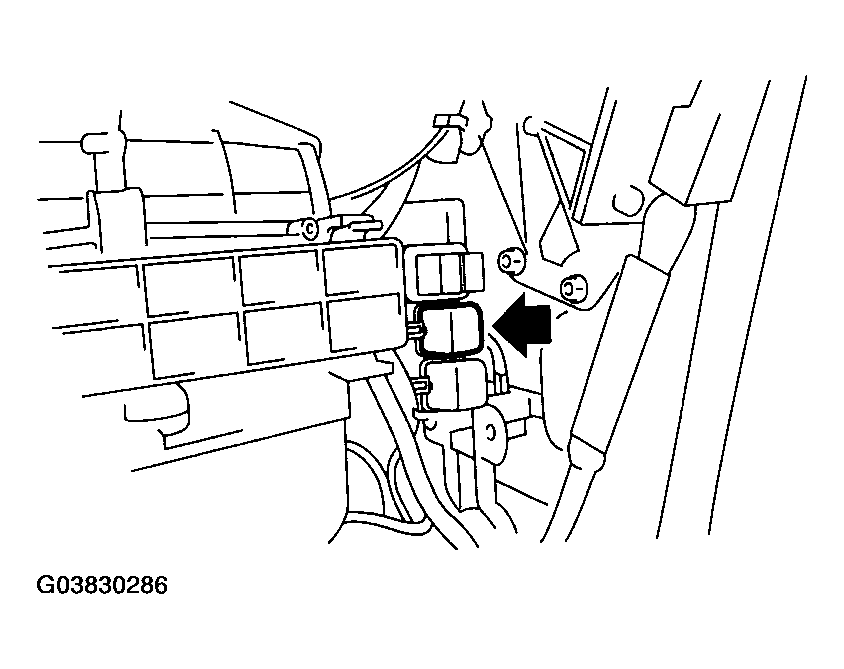

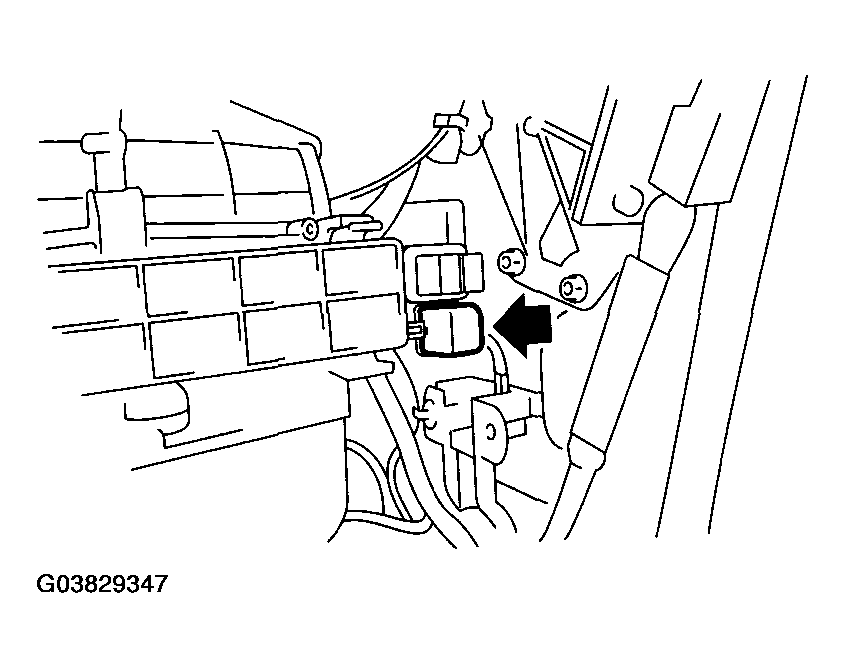

Disconnect the connector from main relay.

Fig 3: Disconnecting Connector From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
