Oil Temperature Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

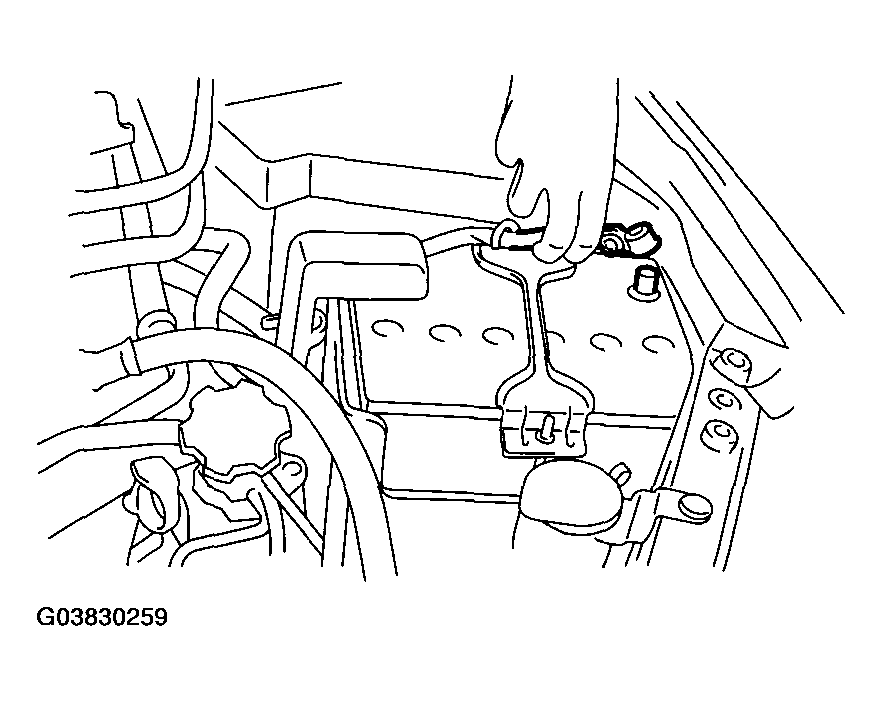

    Fig 1: Disconnecting Ground Cable From Battery
    G03830259Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
  4. Disconnect the connector from oil temperature sensor.
  5. Remove the oil temperature sensor.

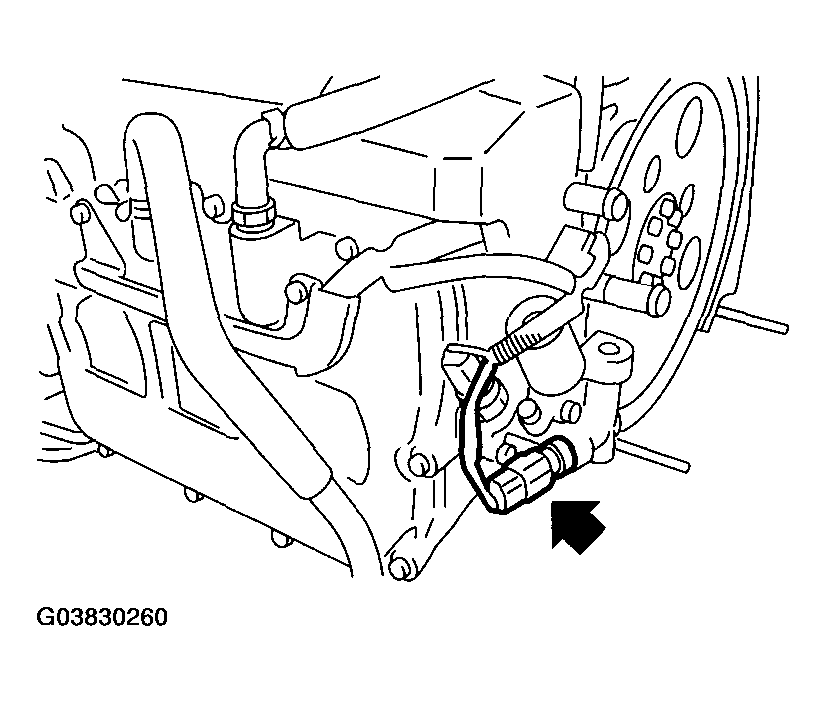

    Fig 2: Removing Oil Temperature Sensor
    G03830260Courtesy of SUBARU OF AMERICA, INC.
