LH Side

  1. Remove the collector cover.
  2. Remove the battery and battery carrier.
  3. Remove the bracket.
  4. Disconnect the connector from ignition coil.
  5. Remove the ignition coil.
    NOTE: Turn the #6 ignition coil to remove it.

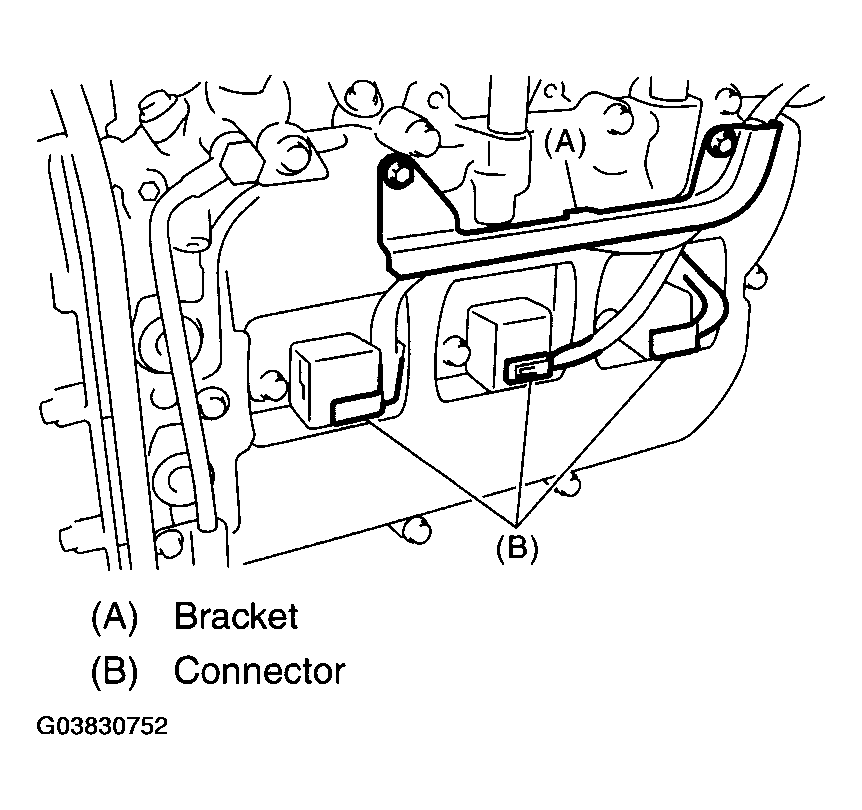

    Fig 1: Connecting Connector
    G03830752Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spark plug with a spark plug socket.

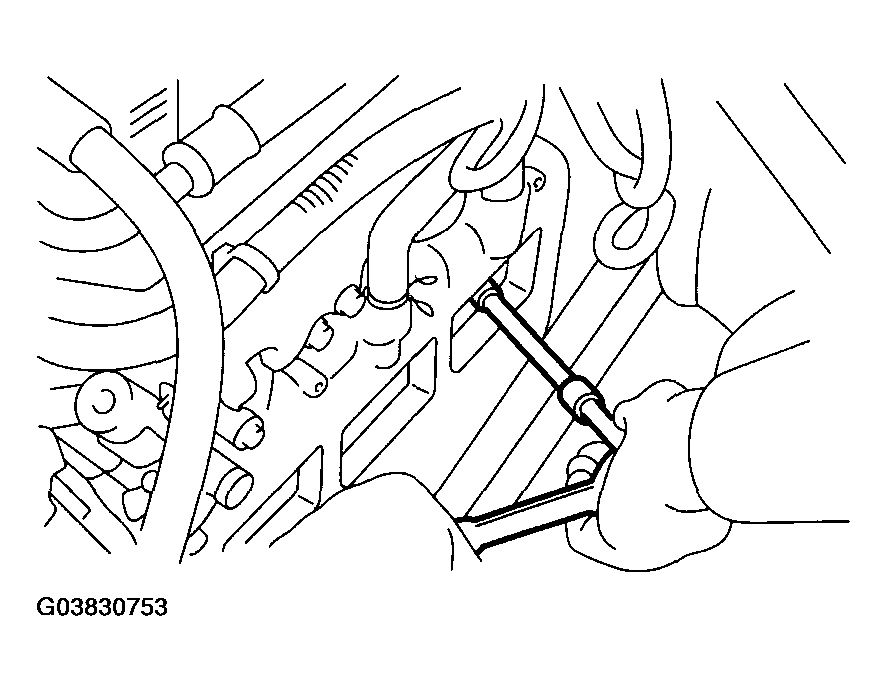

Fig 2: Installing Spark Plug With Spark Plug Socket
G03830753Courtesy of SUBARU OF AMERICA, INC.

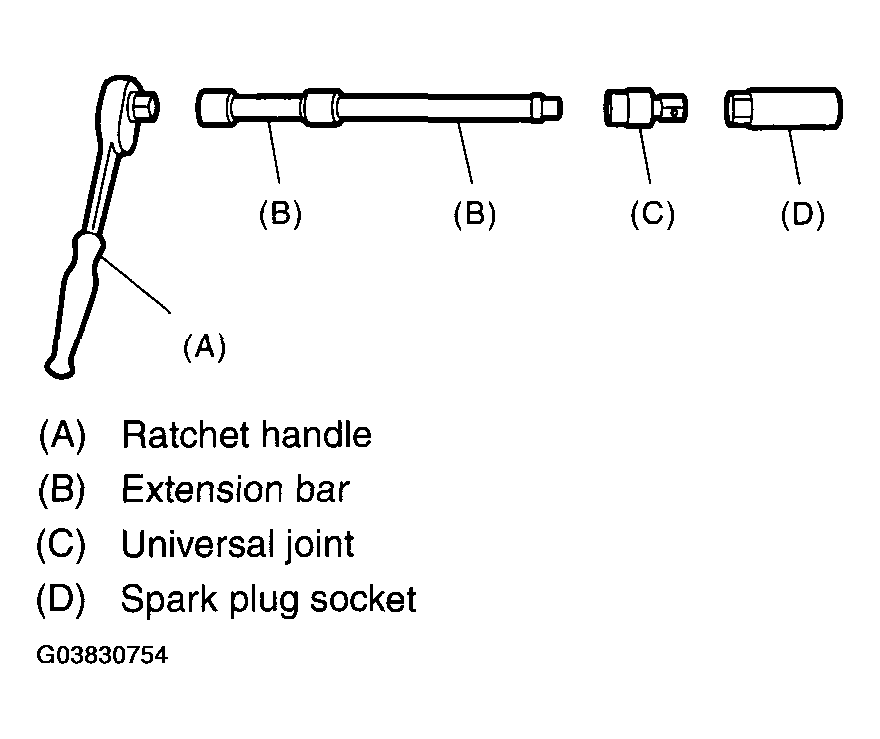

Fig 3: Identifying Ratchet Handle, Extension Bar, Universal Joint, Sparl Plug Socket
G03830754Courtesy of SUBARU OF AMERICA, INC.
