Pretensioner Connector: Removal

Using a flat tip screwdriver, pry the push lock upward to unlock.

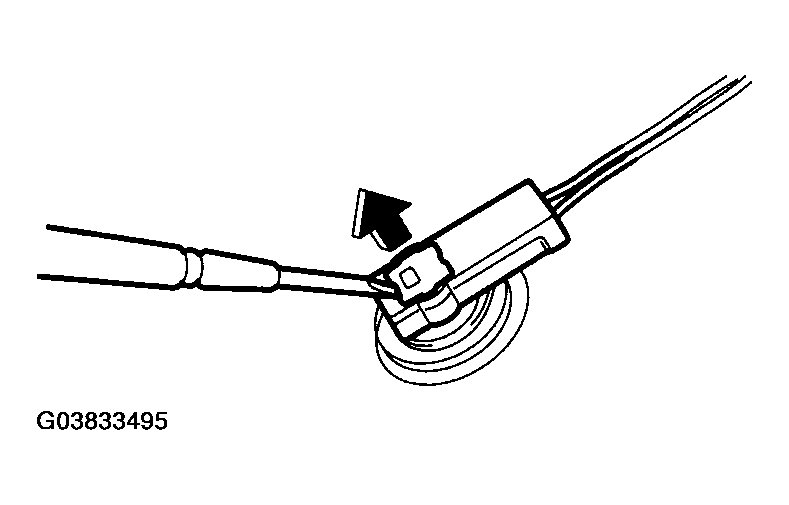

Fig 1: Prying Push Lock Upward To Unlock Using Flat Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Pull out the connector to disconnect it from retractor assembly.

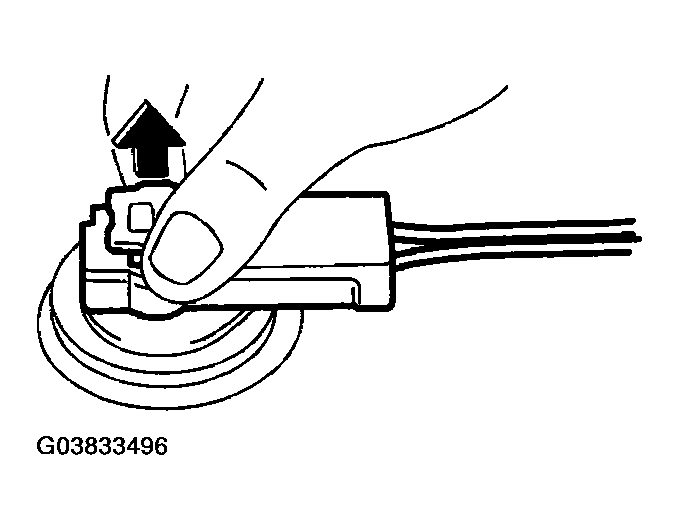

Fig 2: Pulling Out Connector
Courtesy of SUBARU OF AMERICA, INC.
