AT Shift Lock Control System: Location

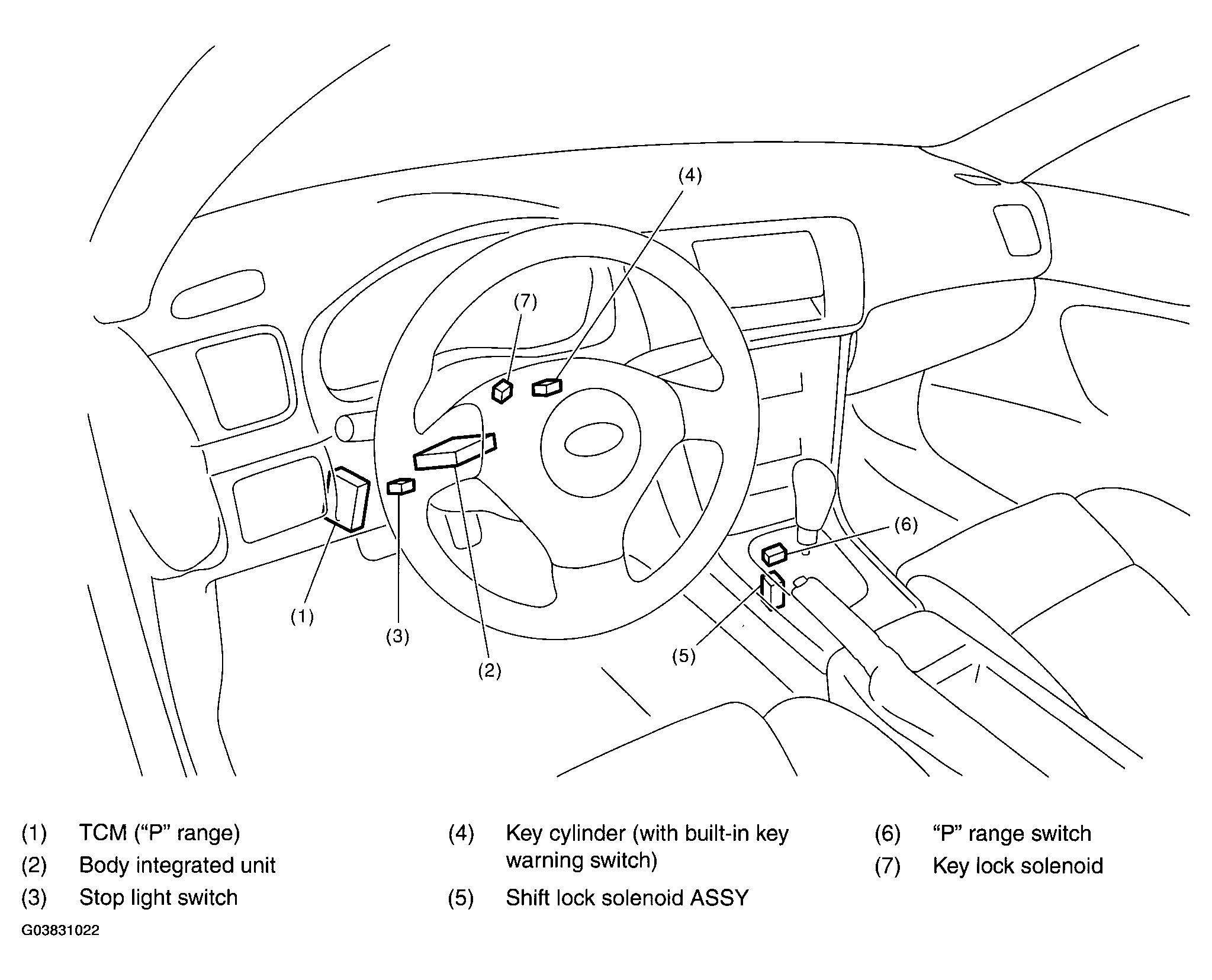

Fig 1: Locating AT Shift Lock Control System Component Locations (1 Of 2)
G03831022Courtesy of SUBARU OF AMERICA, INC.

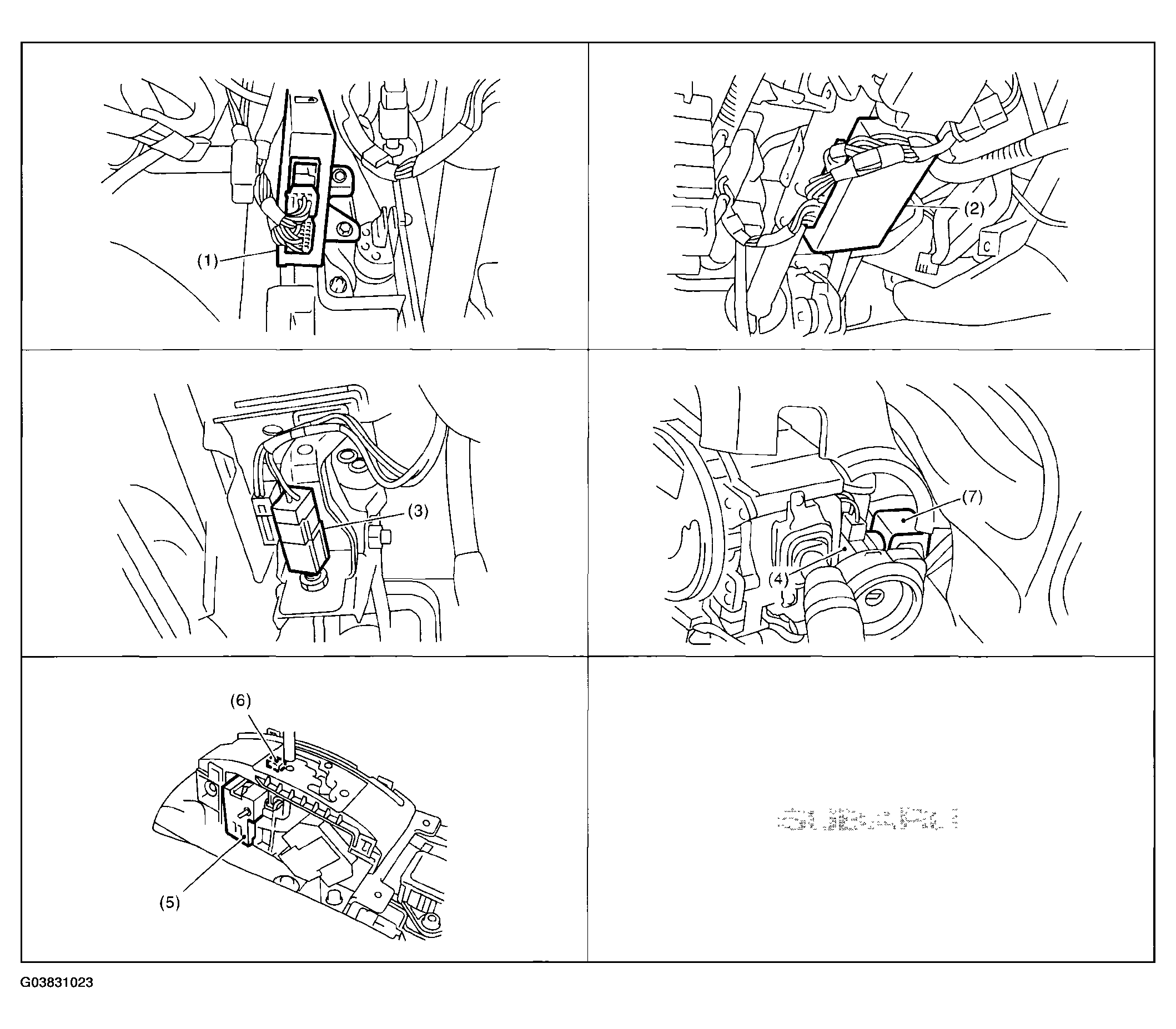

Fig 2: Locating AT Shift Lock Control System Component Locations (2 Of 2)
G03831023Courtesy of SUBARU OF AMERICA, INC.
