AT Shift Lock Control System: Wiring Diagram

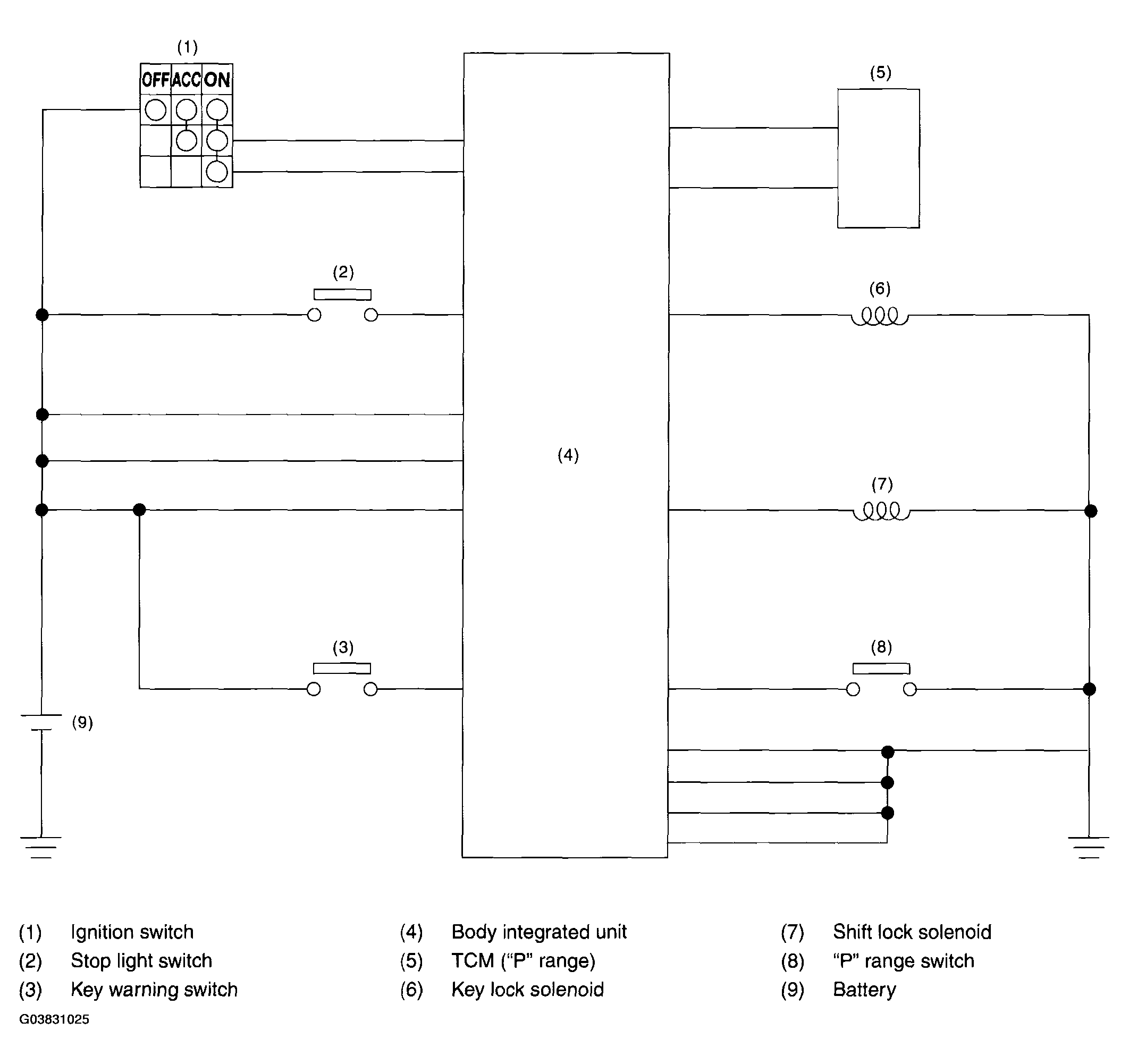

Fig 1: Shift Lock - Wiring Diagram
G03831025Courtesy of SUBARU OF AMERICA, INC.
