MT Gear Shift Lever: Assembly

NOTE:

Mount the bushing and cushion rubber on the stay.

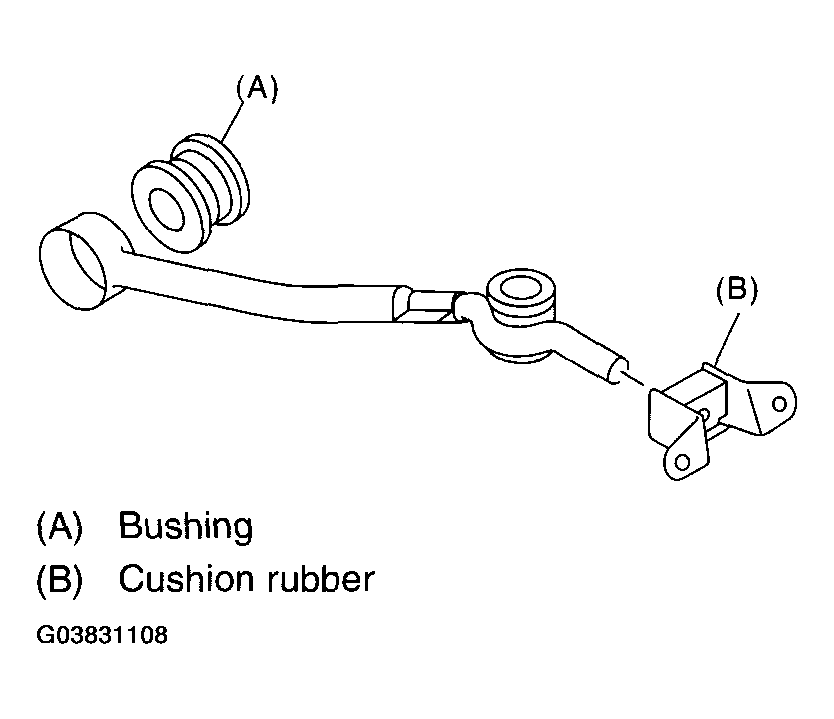

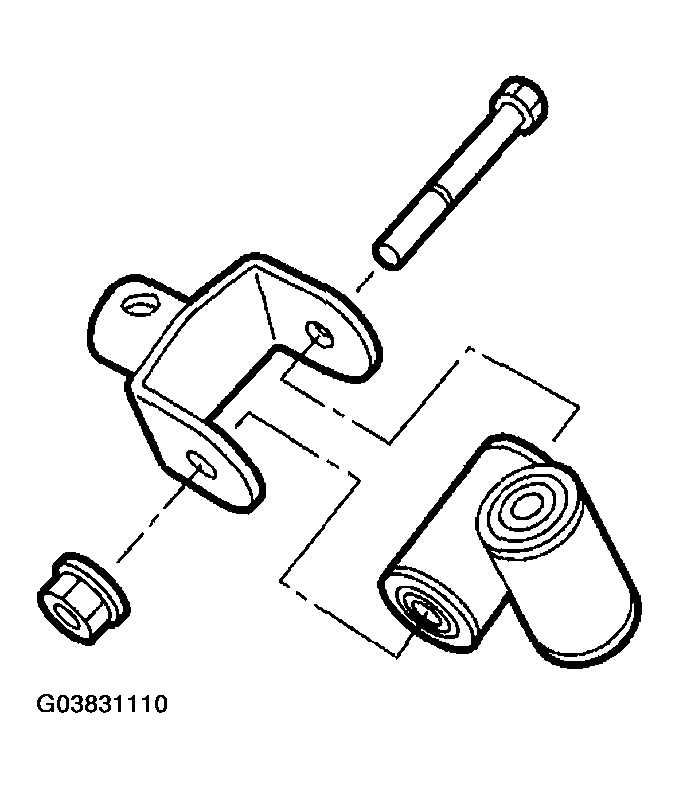

Fig 1: Removing Mounting Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the bushing and spacer to boss.

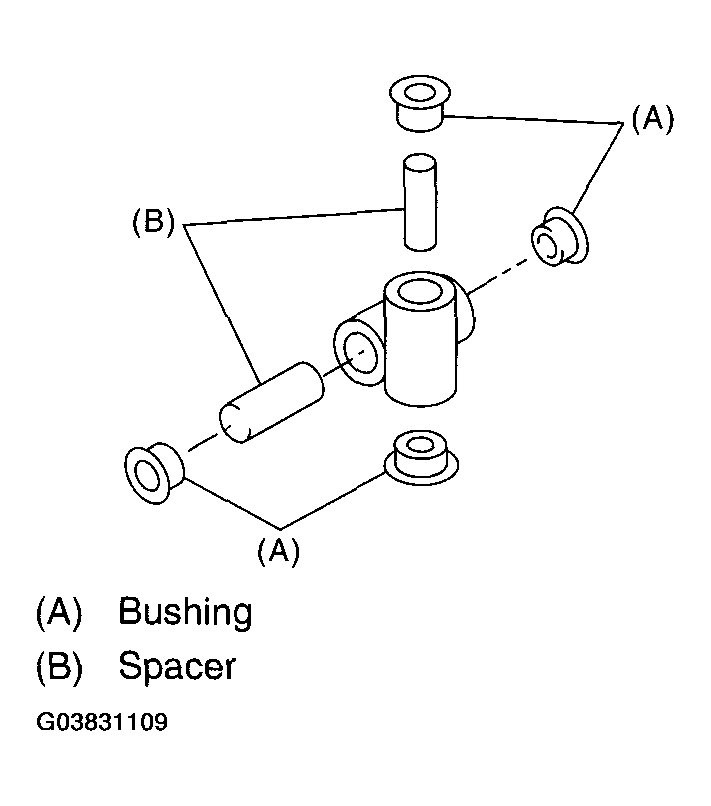

Fig 2: Installing Bushing And Spacer To Boss
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, install the boss to the joint.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Installing Boss To Joint Using Self-Locking Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

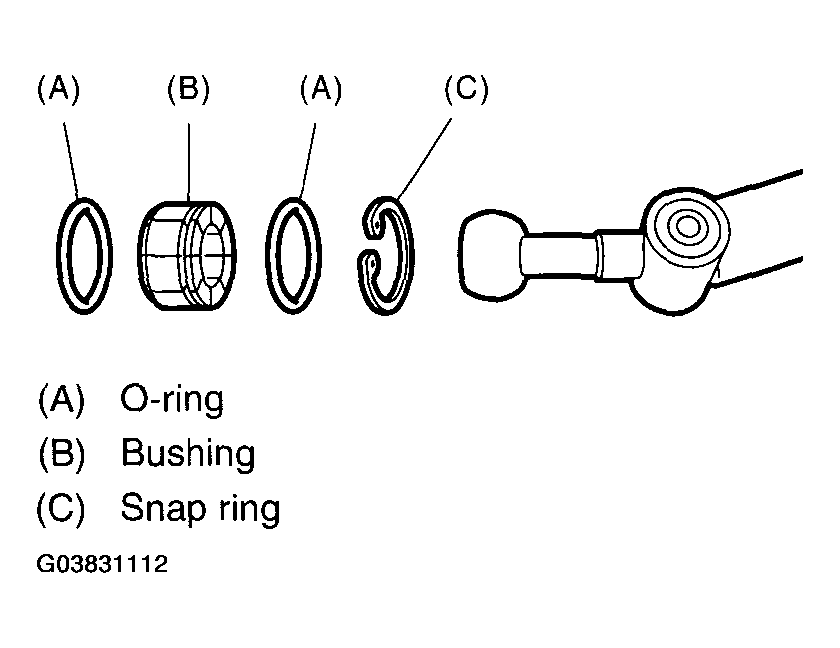

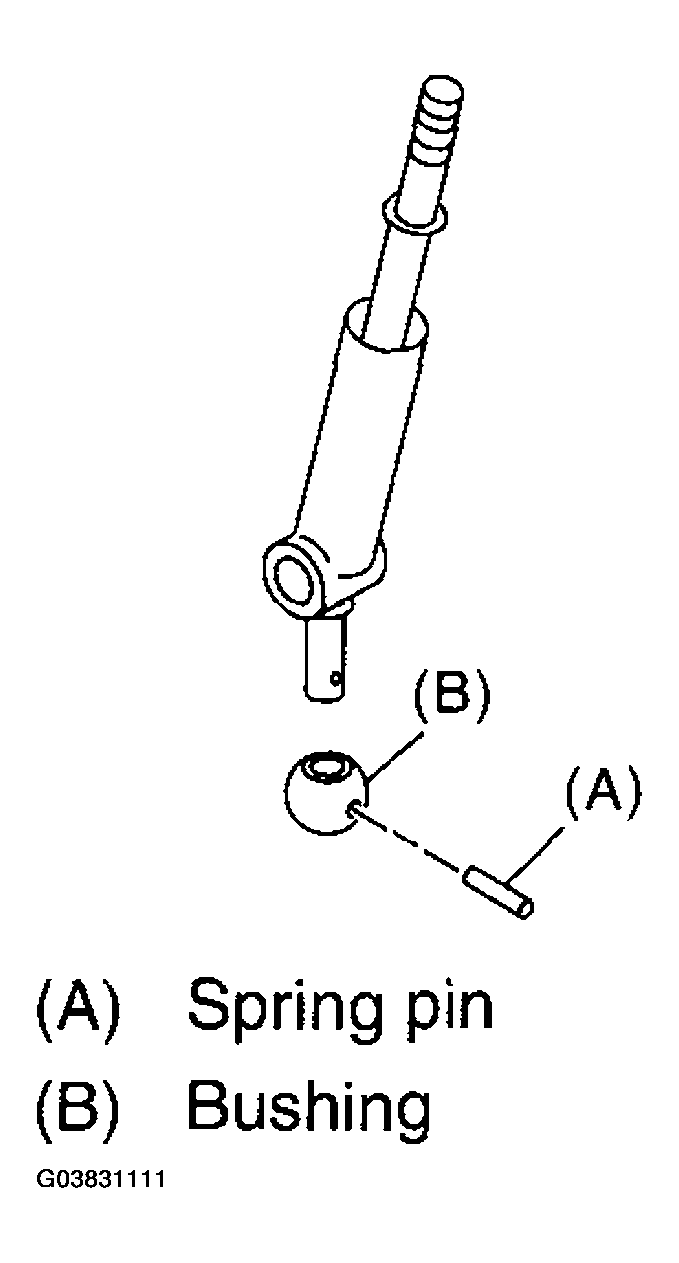

Fig 4: Installing Snap Ring And Bush
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing and O-ring, and then install to the gear shift lever.

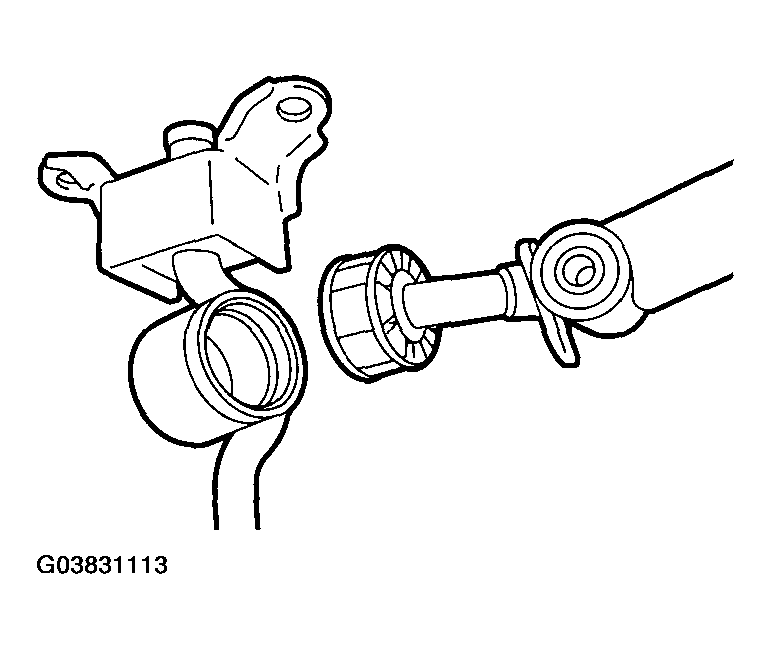

Fig 5: Applying Grease Bushing And O-Ring, Then Installing Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Fig 6: Applying Grease Installing Gear Shift Lever To Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap ring.

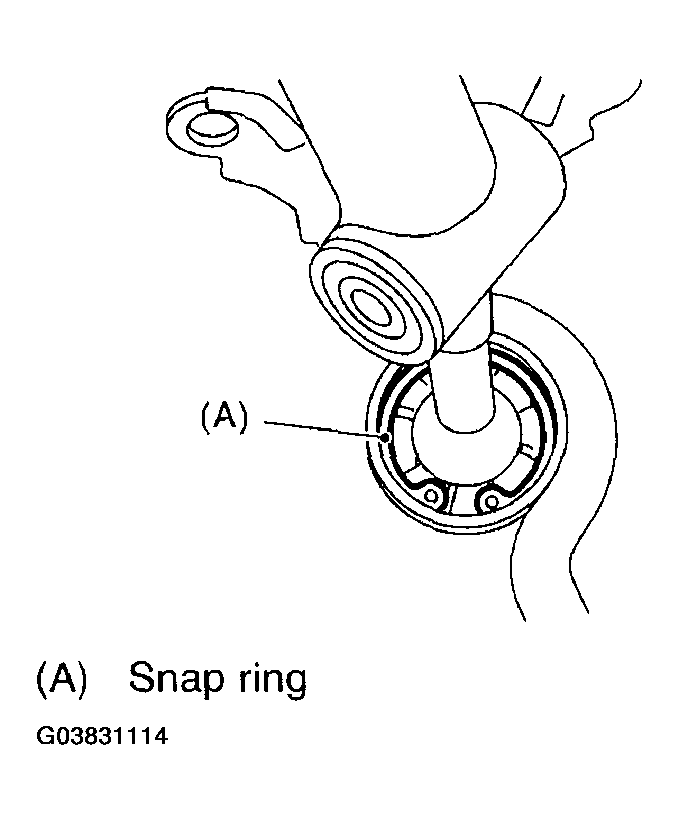

Fig 7: Installing Washer And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever and rod into boot hole.
Install the rod.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

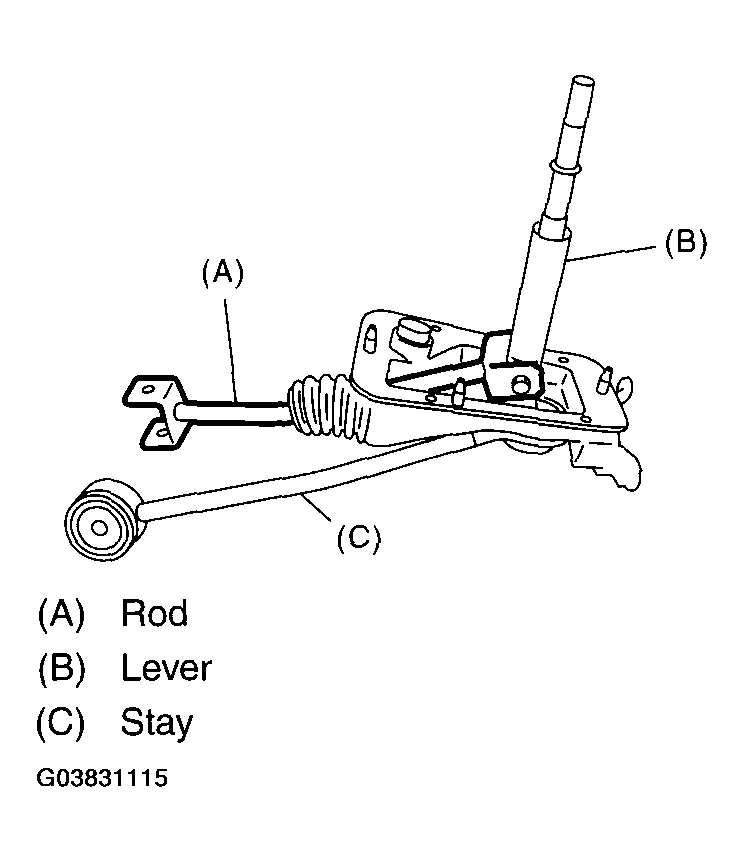

Fig 8: Inserting Gear Shift Lever And Rod Into Boot Hole
Courtesy of SUBARU OF AMERICA, INC.
Install a new lock wire.

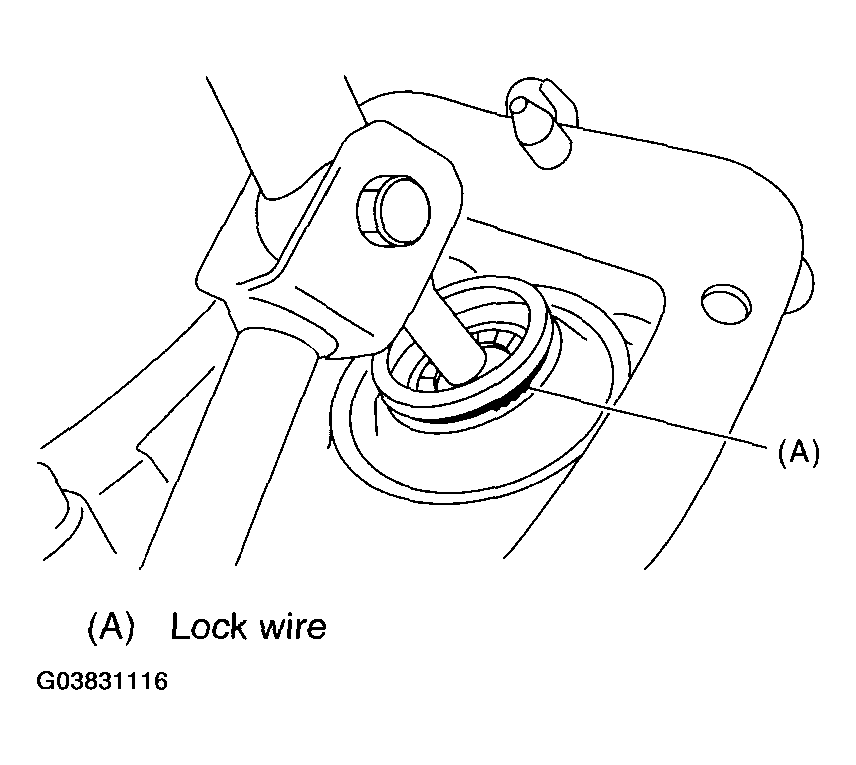

Fig 9: Installing Lock Wire
Courtesy of SUBARU OF AMERICA, INC.

NOTE:

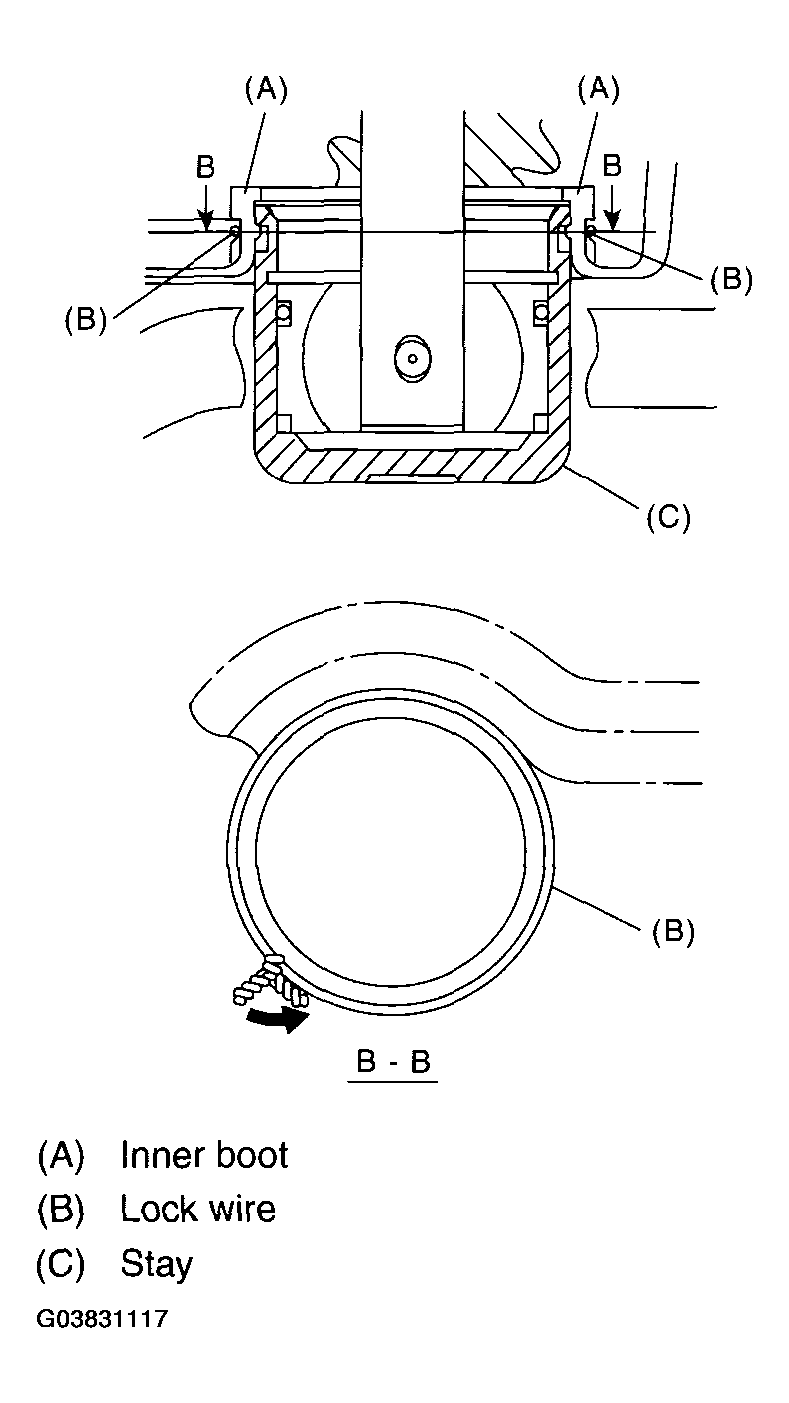

Fig 10: Installing Lock Wire To Stay Groove

Courtesy of SUBARU OF AMERICA, INC.
