MT Gear Shift Lever: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Remove the gear shift knob.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the clamp.

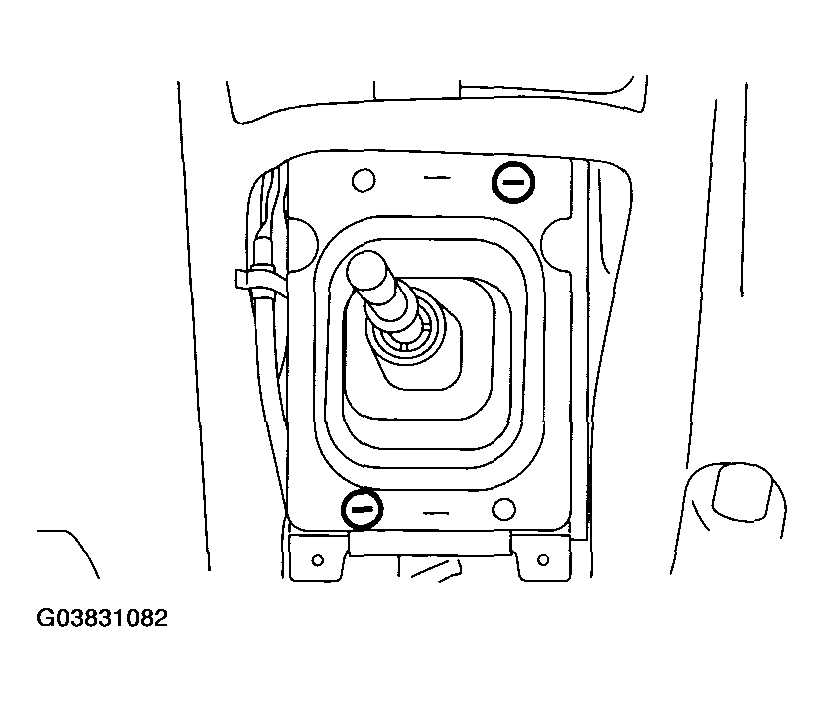

Fig 1: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

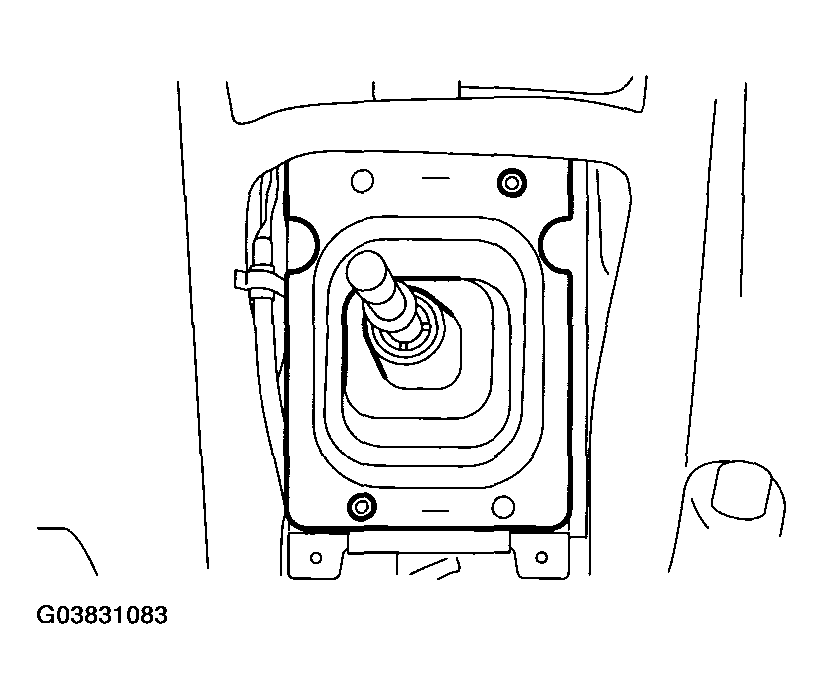

Fig 2: Removing Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from plate.

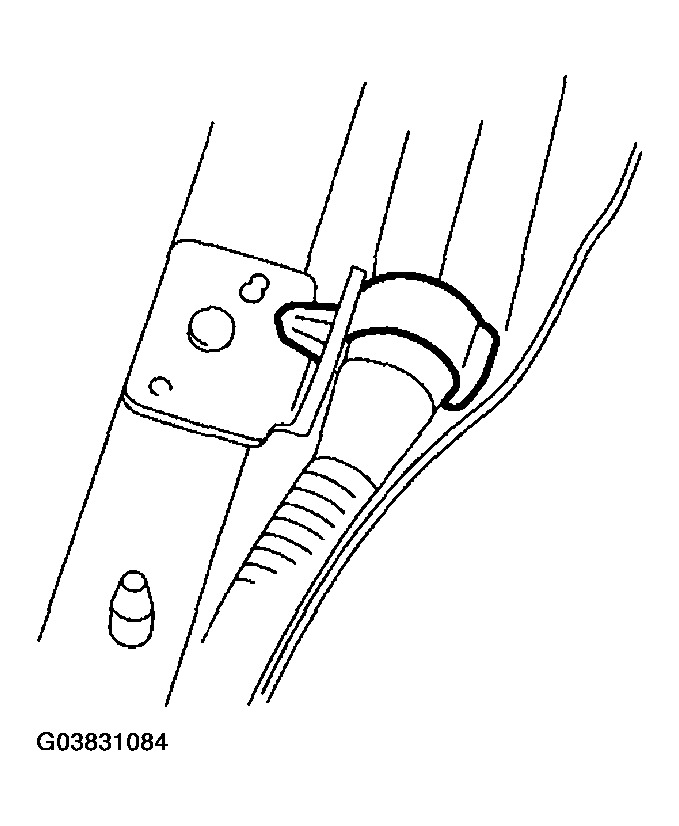

Fig 3: Removing Harness Clamp From Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from vehicle body.

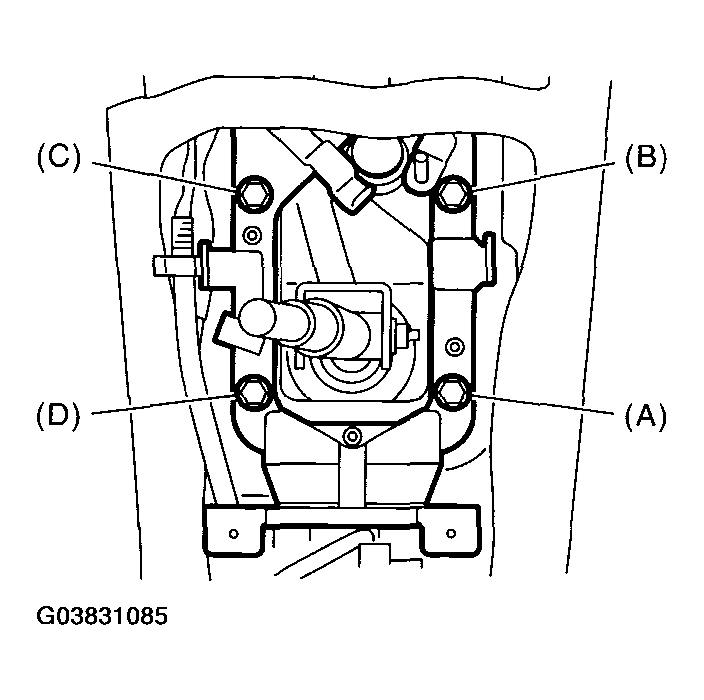

Fig 4: Removing Bolts Plate Assembly From Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
- SOHC model
  < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Muffler. >
- DOHC turbo model
  < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Joint Pipe. >
- DOHC 3.0 L model
  < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Muffler. >
Remove the heat shield cover.

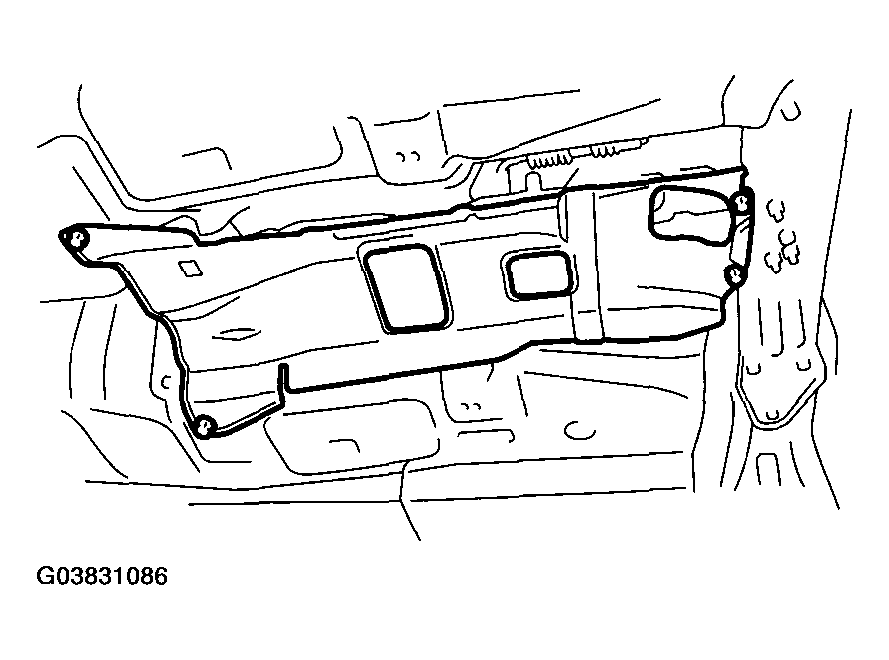

Fig 5: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the stay from transmission bracket.

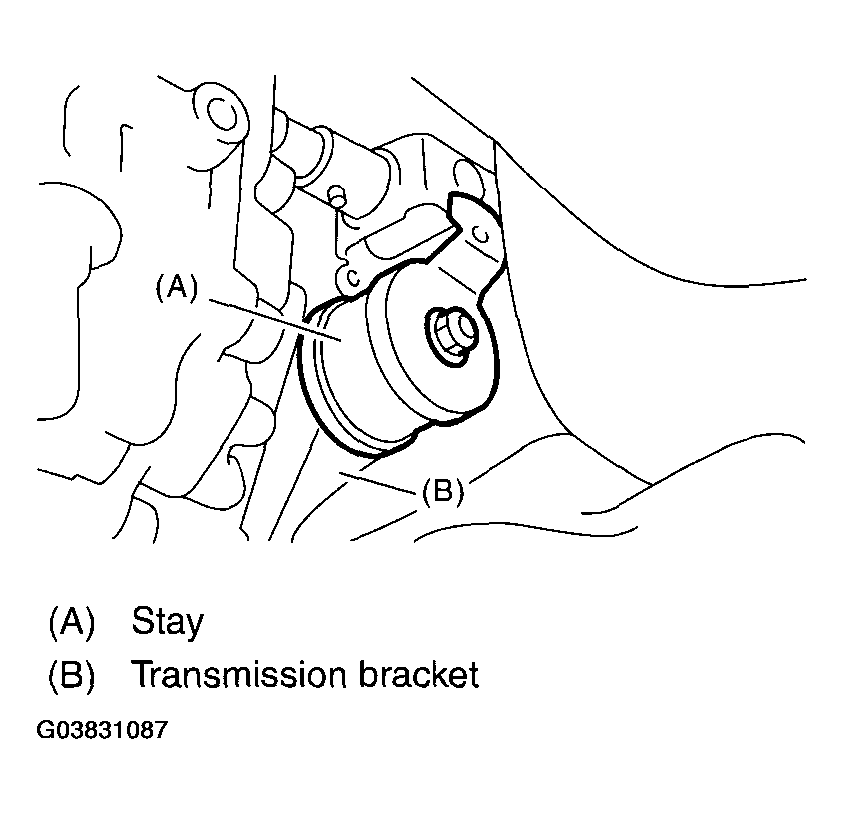

Fig 6: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

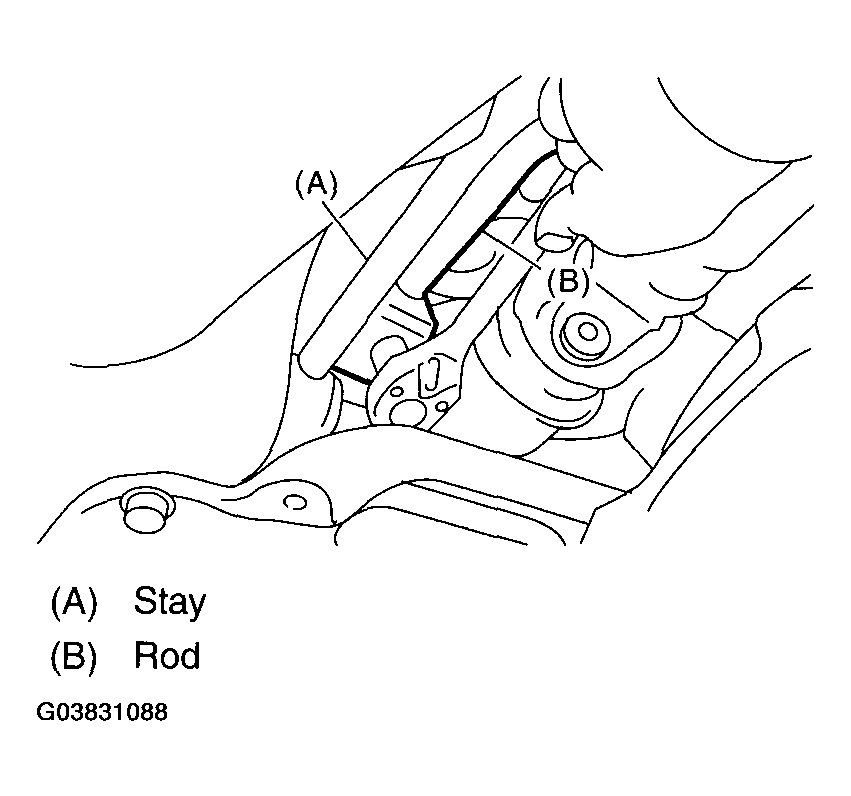

Fig 7: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from vehicle body.

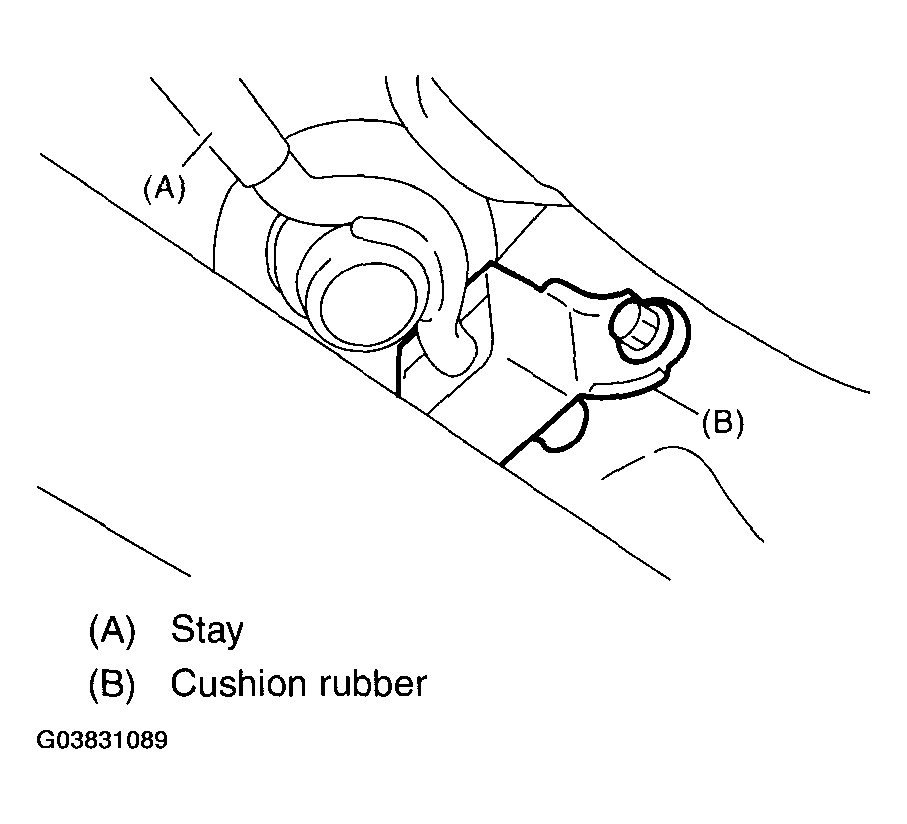

Fig 8: Removing Cushion Rubber From Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Extract the spring pin and remove the joint.

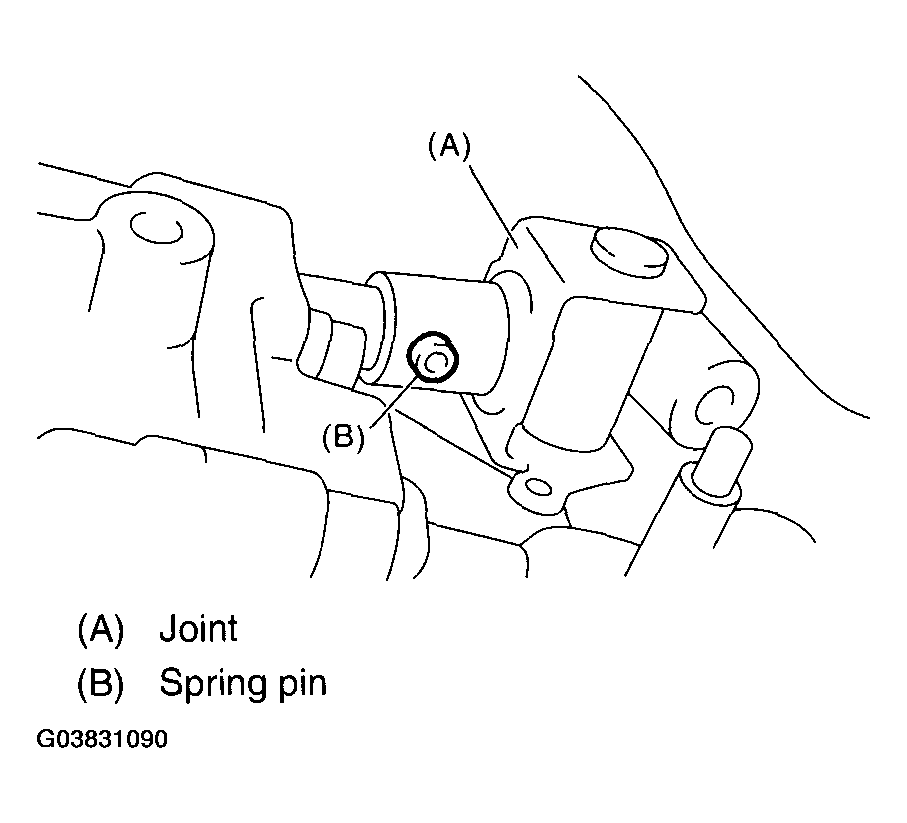

Fig 9: Removing Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

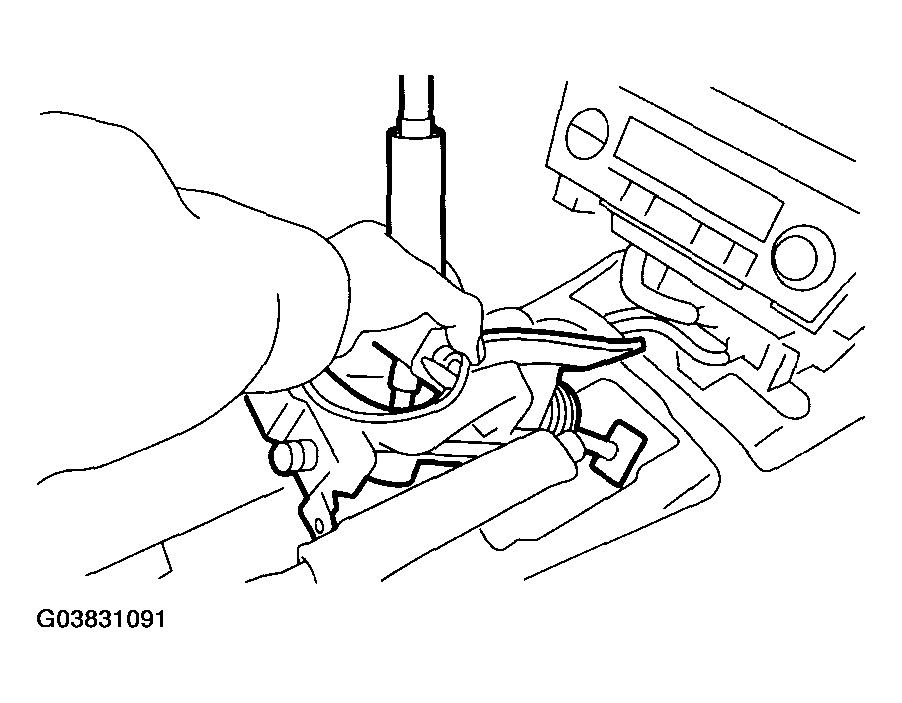

Fig 10: Removing Gear Shift Lever
