Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:

18 Nm (1.8 kgf-m, 13.3 ft-lb)
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

T:24.5 N.m (2.5 kgf-m, 18.1 ft-lb)
- 4AT

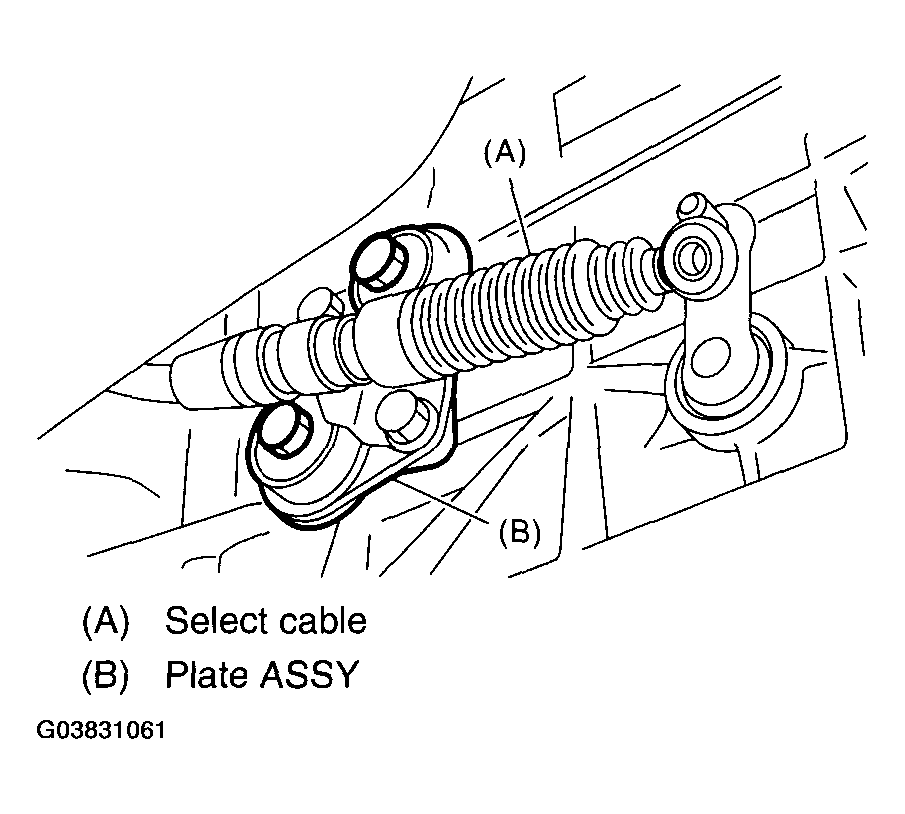

  Fig 1: Installing Select Cable From Plate Assembly (4At)
  Courtesy of SUBARU OF AMERICA, INC.
- 5AT
Fig 2: Installing Select Cable From Plate Assembly (5At)
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.
- 4AT

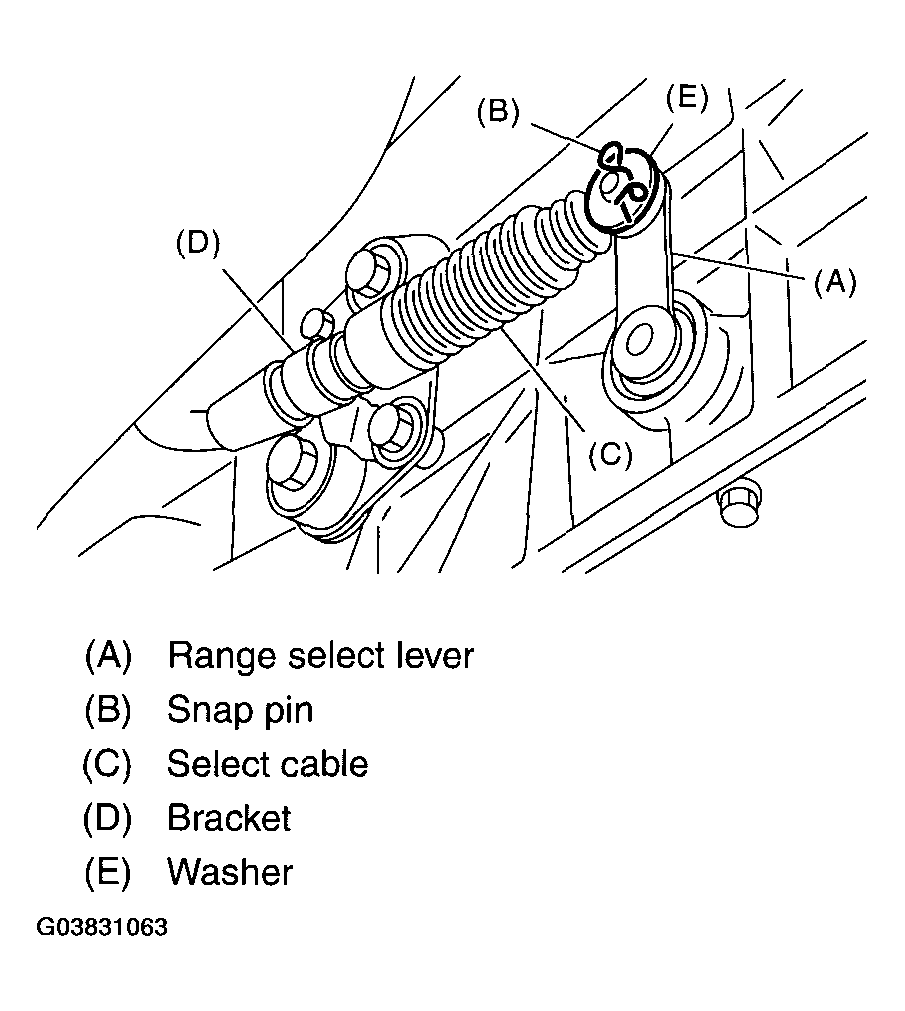

  Fig 3: Installing Washer And Snap Pin To Range Select Lever (4At)
  Courtesy of SUBARU OF AMERICA, INC.
- 5AT

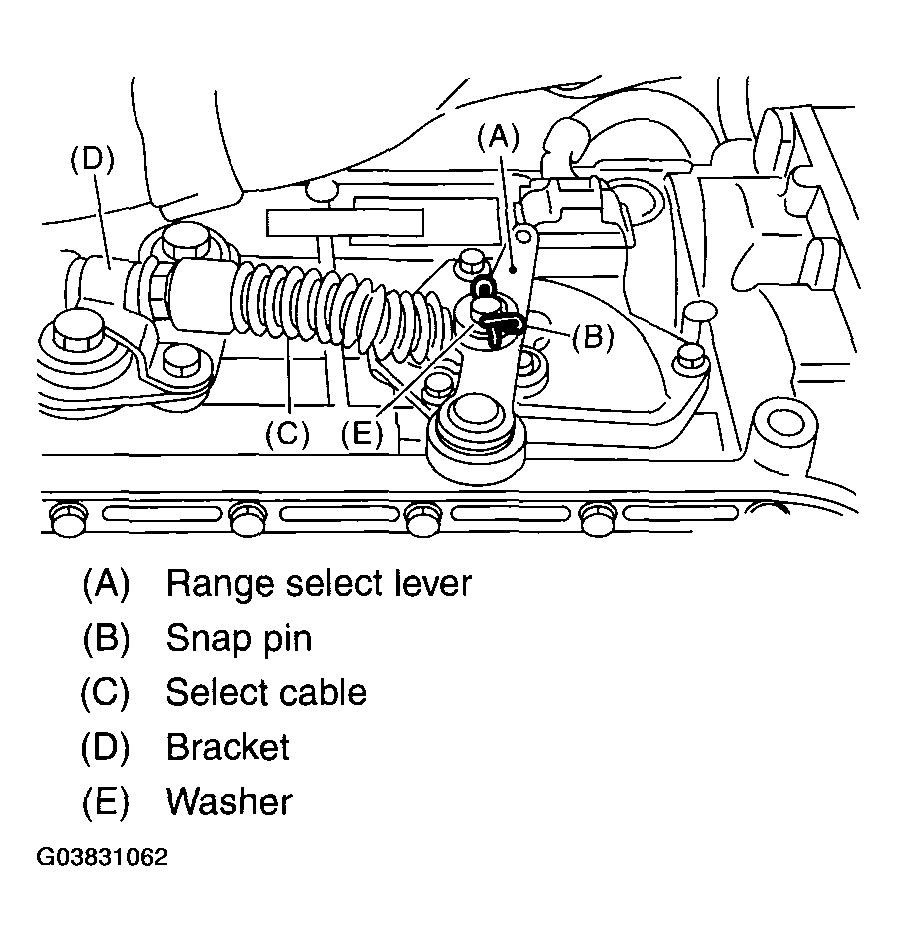

Fig 4: Installing Washer And Snap Pin To Range Select Lever (5At)
Courtesy of SUBARU OF AMERICA, INC.
Install a new clamp paying attention to the installing direction.

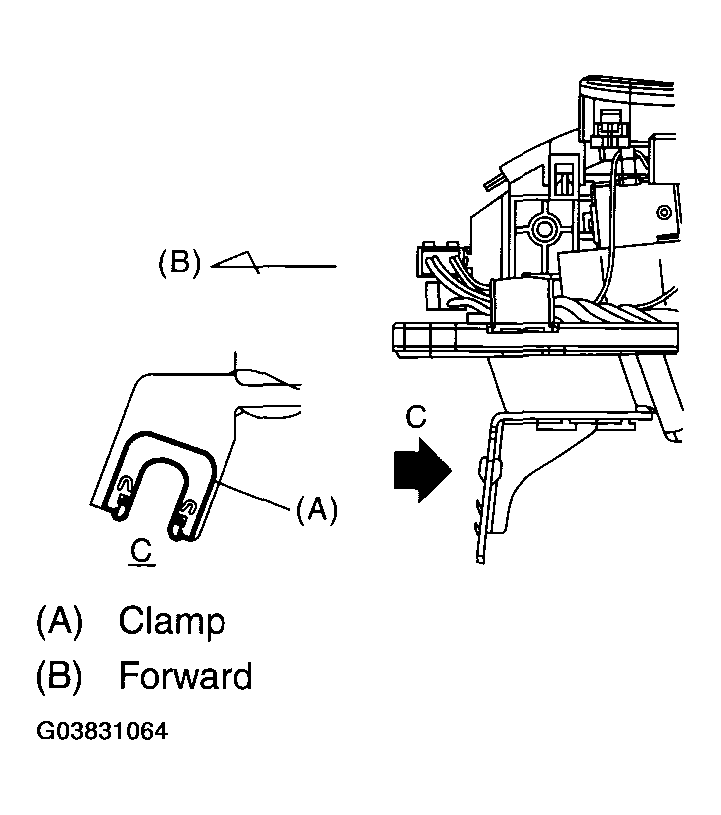

Fig 5: Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of the select lever, and fix the cable to bracket.

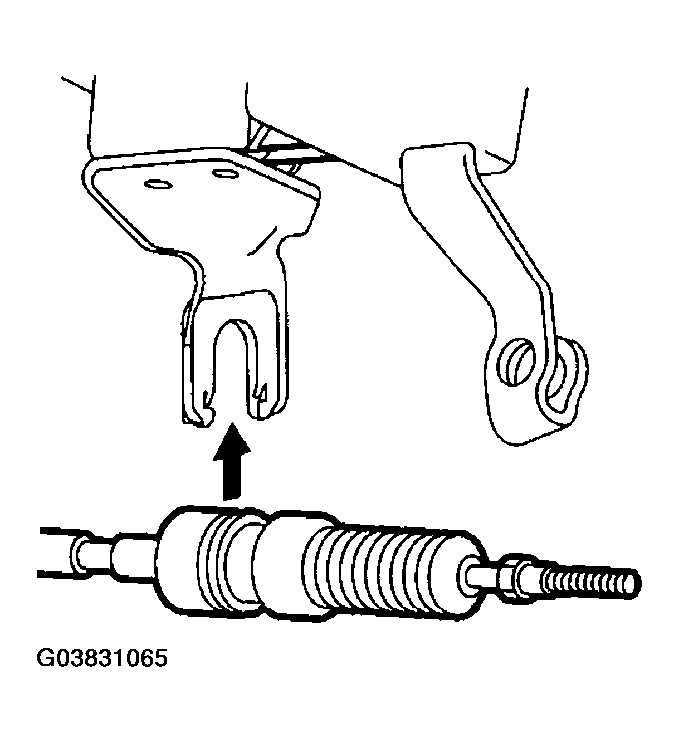

Fig 6: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to "N" range, and then adjust the select cable position. < Ref. to , ADJUSTMENT , Select Cable. >
Install the heat shield cover.

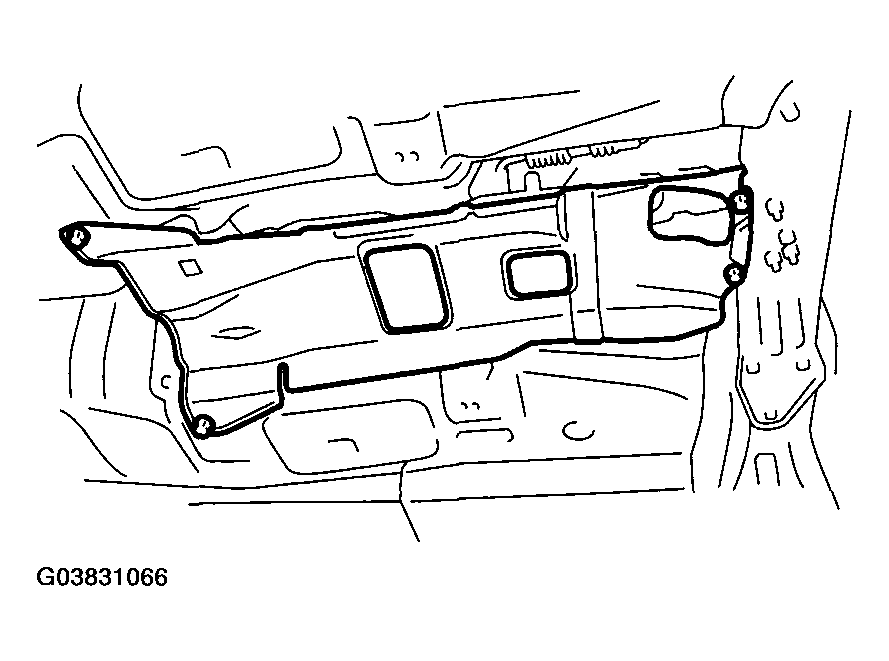

Fig 7: Installing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the front, center and rear exhaust pipes and muffler. (SOHC and DOHC non-turbo model)
- SOHC model
  < Ref. to INSTALLATION , Front Exhaust Pipe.> < Ref. to INSTALLATION , Center Exhaust Pipe.> < Ref. to INSTALLATION , Rear Exhaust Pipe.> < Ref. to INSTALLATION , Muffler. >
- DOHC 3.0 L model
  < Ref. to INSTALLATION , Front Exhaust Pipe.> < Ref. to INSTALLATION , Rear Exhaust Pipe.> < Ref. to INSTALLATION , Muffler. >
Install the center and rear exhaust pipe and muffler. (DOHC turbo model)
< Ref. to INSTALLATION , Center Exhaust Pipe.> < Ref. to INSTALLATION , Rear Exhaust Pipe.> < Ref. to INSTALLATION , Muffler. >
