Select Lever: Assembly
- Clean all the parts before assembly.
- Apply grease [Multemp AC-D or equivalent] to each parts. < Ref. to
, AT SELECT LEVER , COMPONENT, General Description. >
- Assemble in the reverse order of disassembly.
NOTE:
- For each tightening torque refer to
AT SELECT LEVER , COMPONENT, General Description.

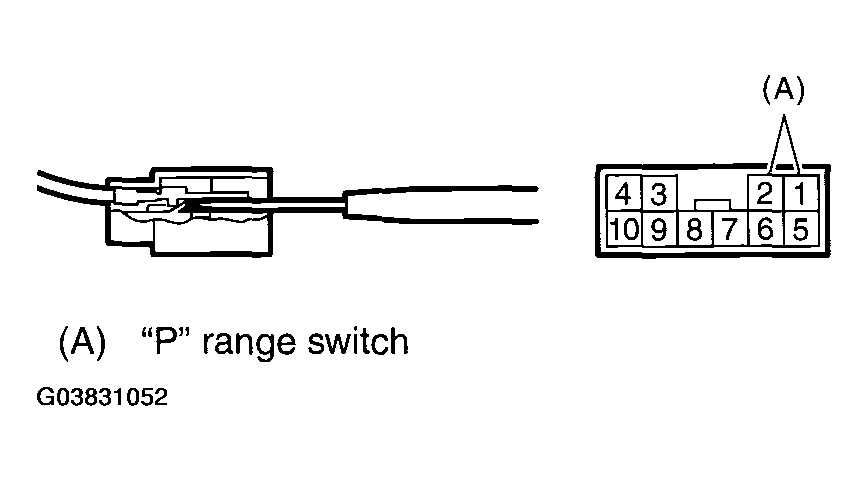

- Connect the switch terminal to connector.
Courtesy of SUBARU OF AMERICA, INC.
- After completion of installation, shift the select lever from "P" range to "D" range, then check whether the indicator and select lever matches, whether the pointer and position mark matches and what the operating force is.
