Select Lever: Disassembly

Shift the select lever to "N" range.
Remove the indicator light.

Fig 1: Removing Indicator Light
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip.

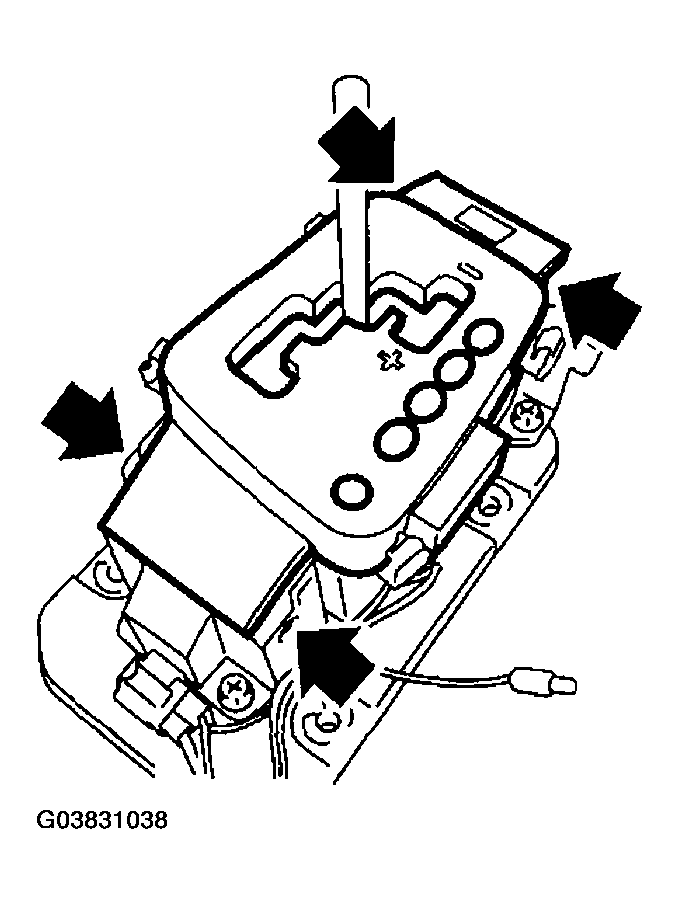

Remove the indicator assembly.

Fig 2: Removing Indicator Assembly
Courtesy of SUBARU OF AMERICA, INC.

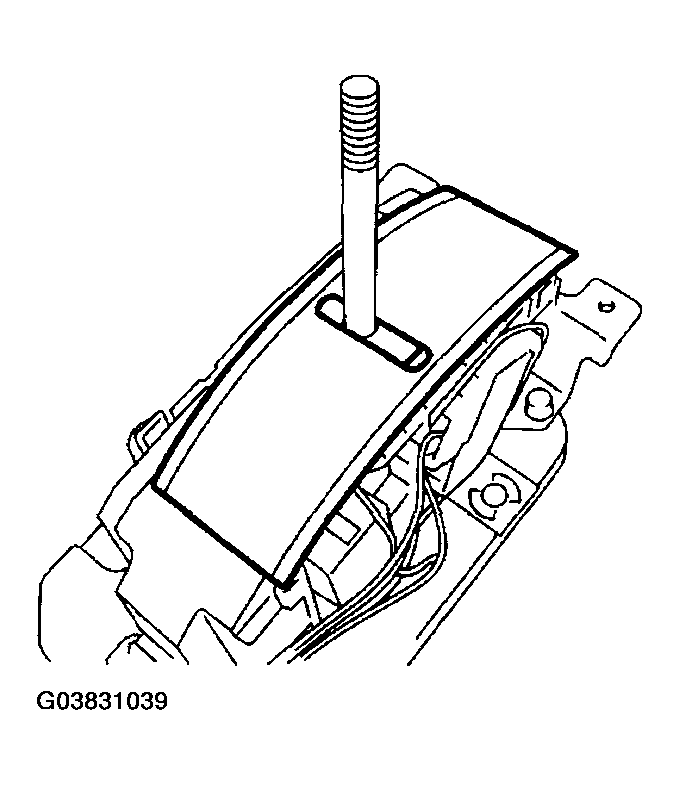

Remove the blind.

Fig 3: Removing Blind
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to "N" range, and then remove the detent spring.

Fig 4: Removing Detent Spring
Courtesy of SUBARU OF AMERICA, INC.

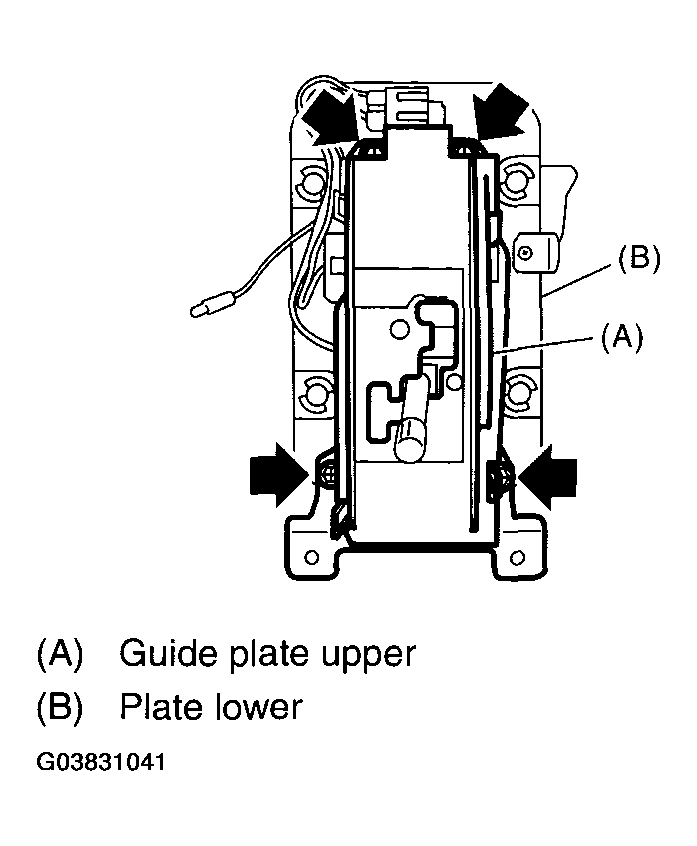

Remove the bolt, and separate the guide plate upper from plate lower.

Fig 5: Removing Bolt, And Separate Guide Plate Upper From Plate Lower
Courtesy of SUBARU OF AMERICA, INC.

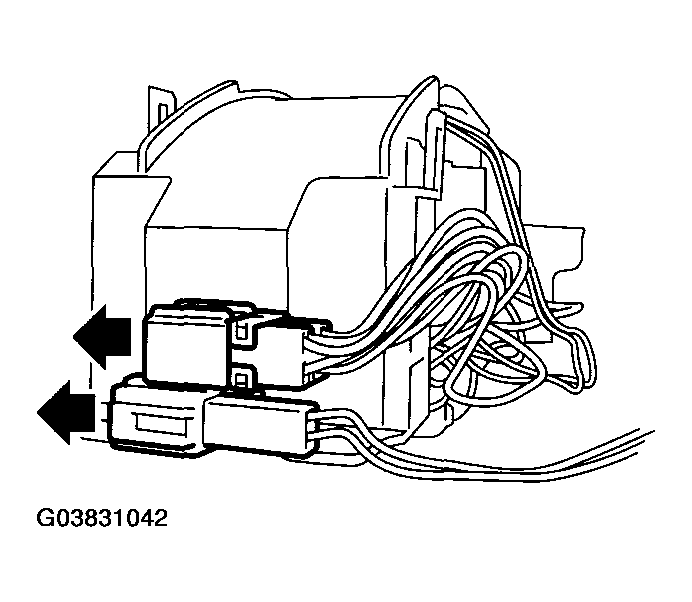

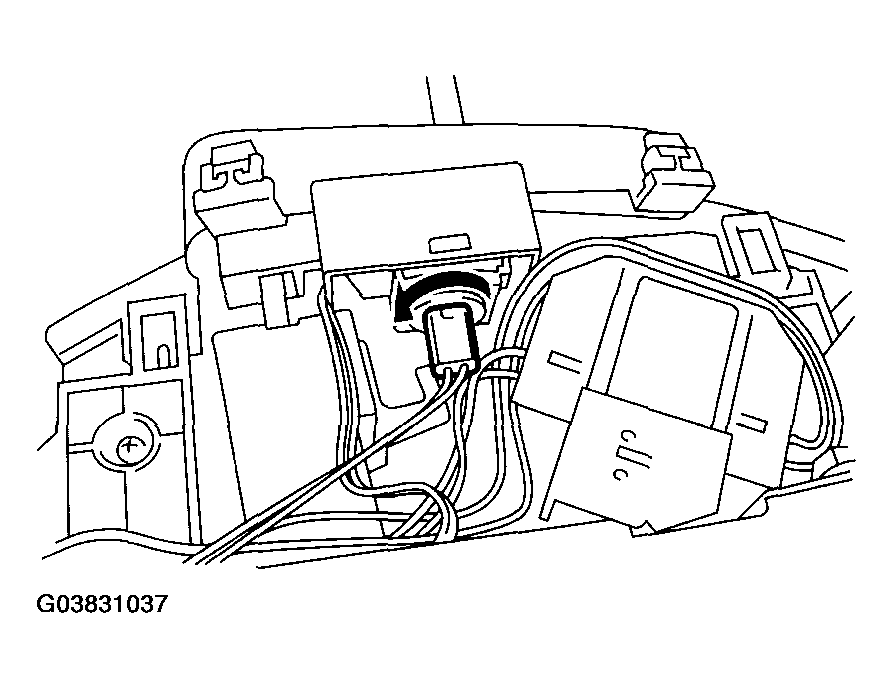

Remove the connector from guide plate upper.

Fig 6: Removing Connector From Guide Plate Upper
Courtesy of SUBARU OF AMERICA, INC.

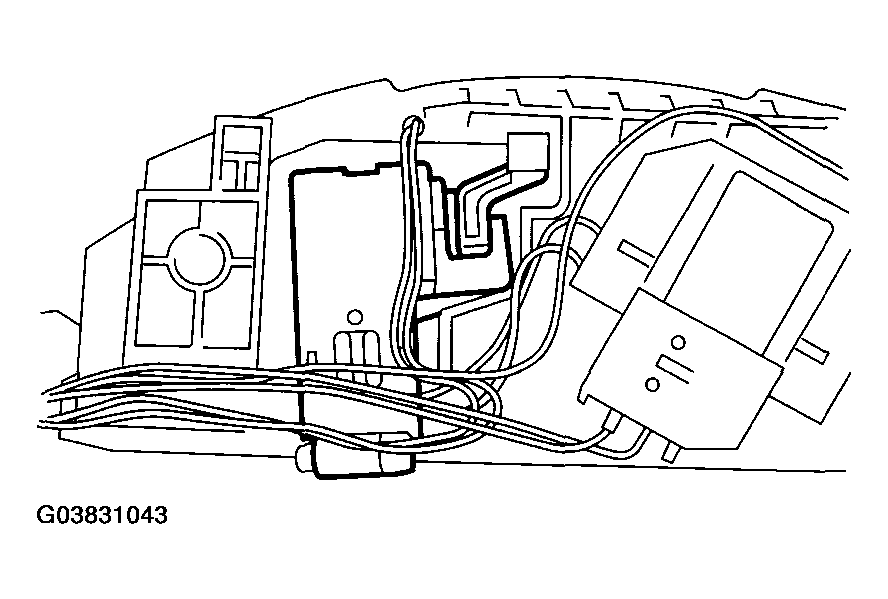

Remove the sheet, and remove the shift lock solenoid assembly.

Fig 7: Removing Shift Lock Solenoid Assembly
Courtesy of SUBARU OF AMERICA, INC.

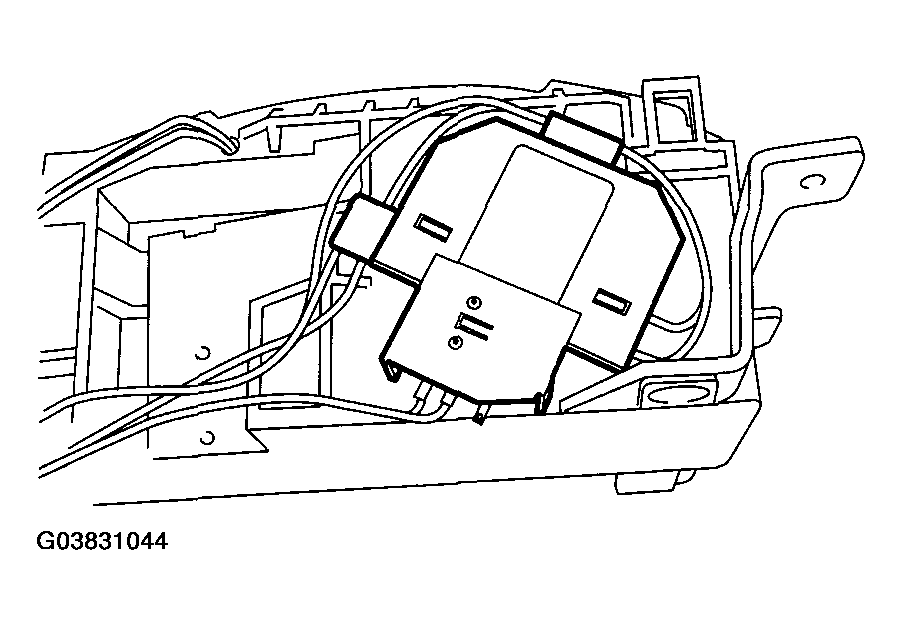

Remove the switch assembly.

Fig 8: Removing Switch Assembly
Courtesy of SUBARU OF AMERICA, INC.

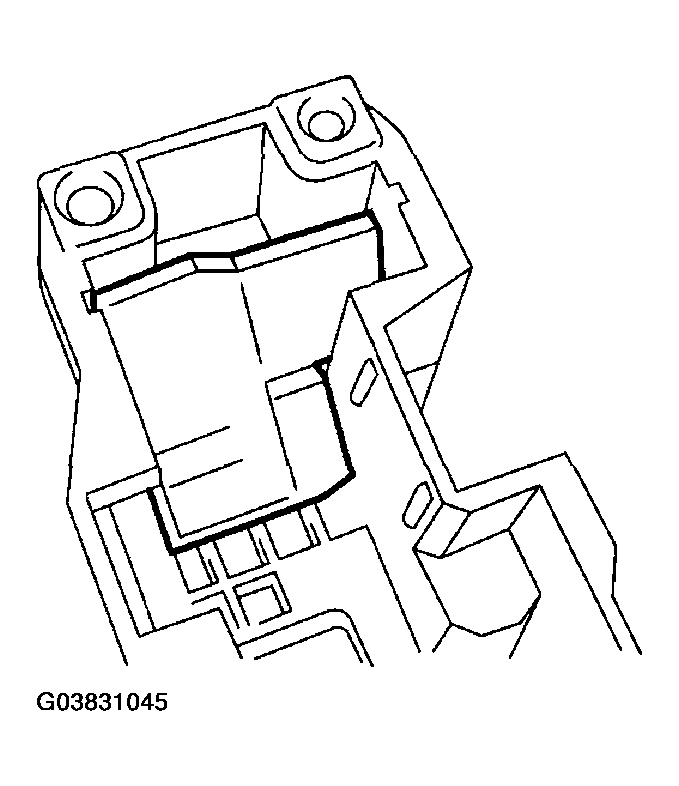

Remove the check plate.

Fig 9: Removing Check Plate
Courtesy of SUBARU OF AMERICA, INC.

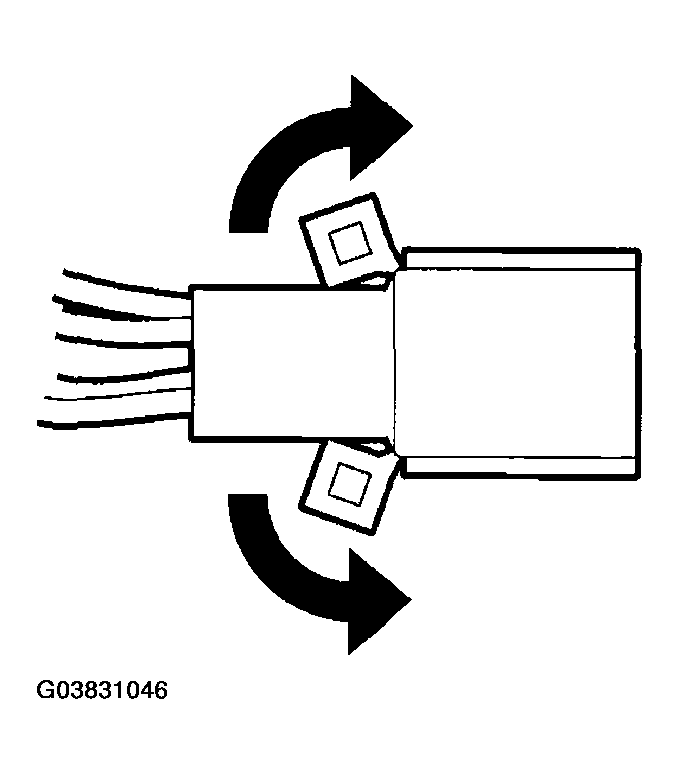

Raise the claw of connector.

Fig 10: Locating Claw Connector
Courtesy of SUBARU OF AMERICA, INC.

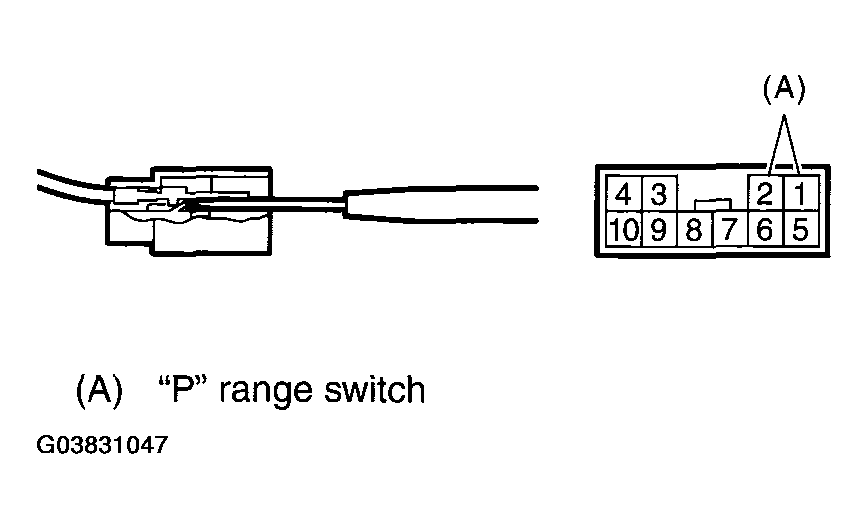

Disconnect the terminals of SPORT mode switch and shift lock solenoid assembly from connector, using a flat-tip screwdriver with thin tip.

Fig 11: Disconnecting Terminals Using Flat-Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.

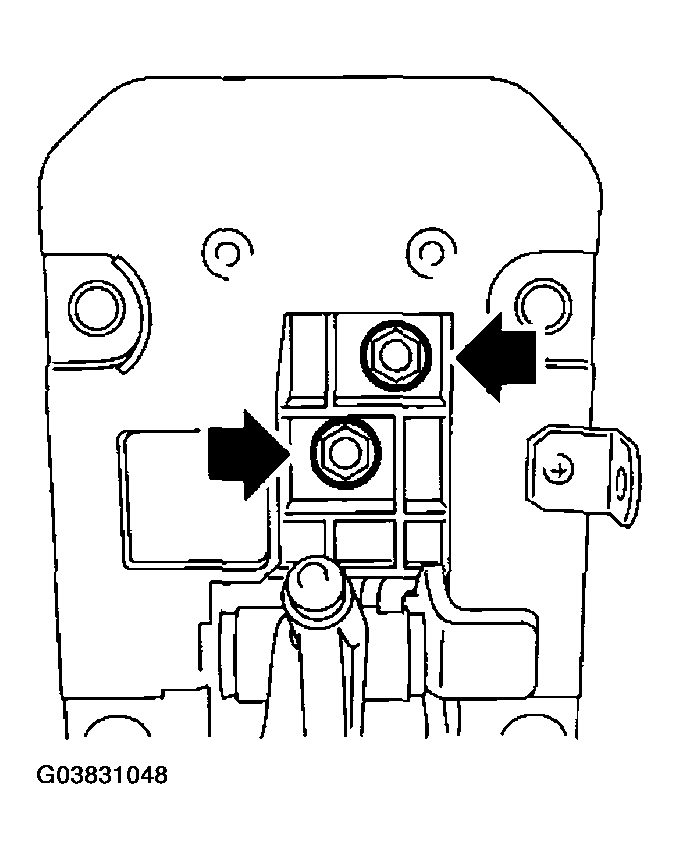

Remove the cable bracket.

Fig 12: Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.

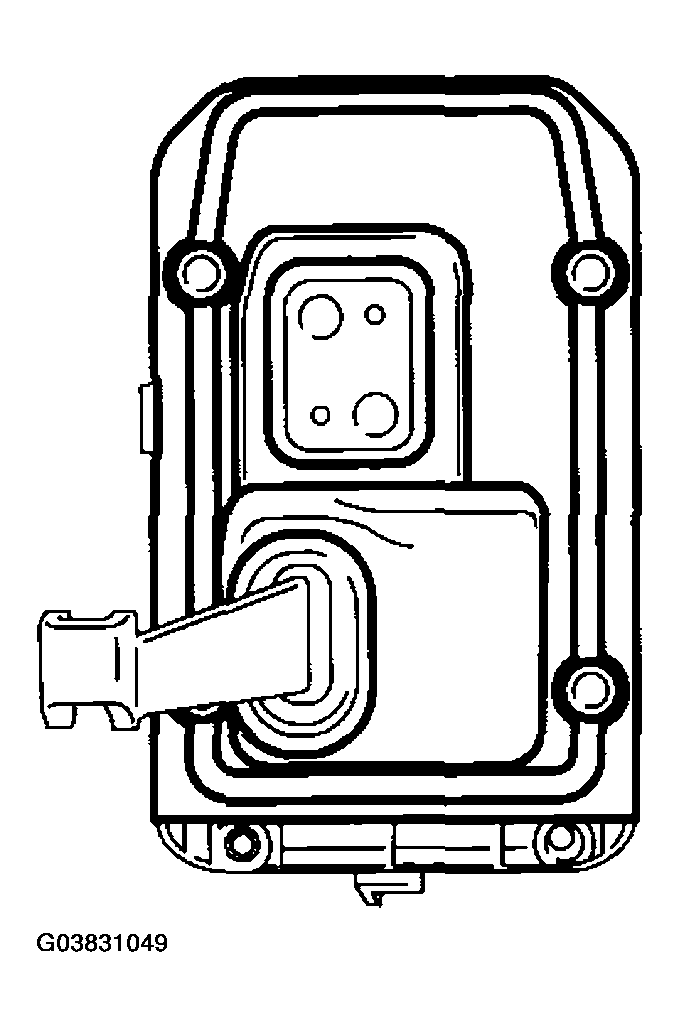

Remove the cover.

Fig 13: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.

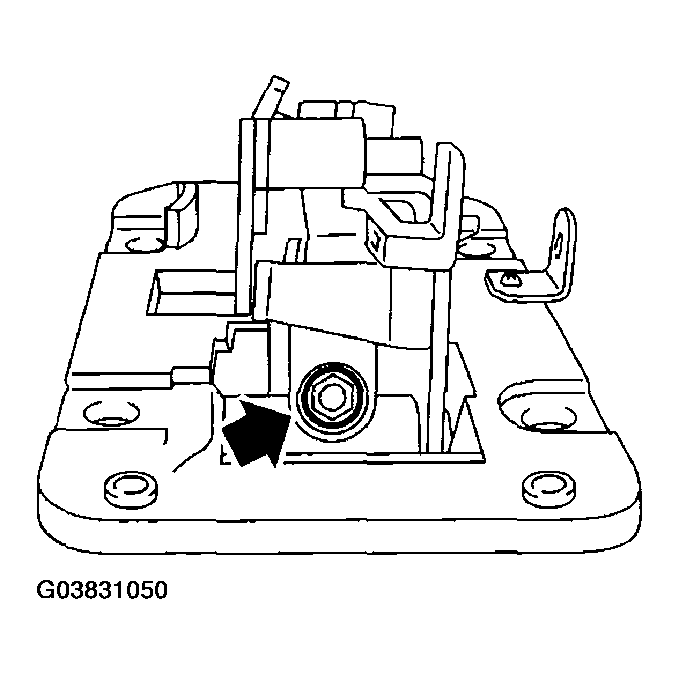

Remove the select lever assembly.

Fig 14: Removing Select Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.

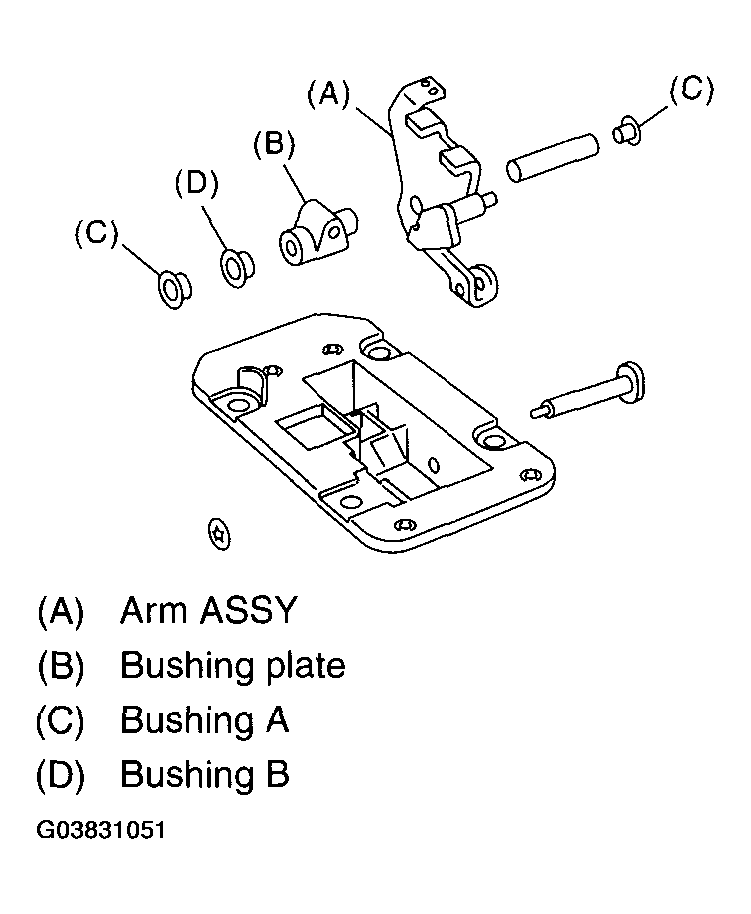

Remove the clamp, and remove the arm assembly and bushing plate.

Fig 15: Removing Arm Assembly And Bushing Plate
Courtesy of SUBARU OF AMERICA, INC.
