Rear Door Glass

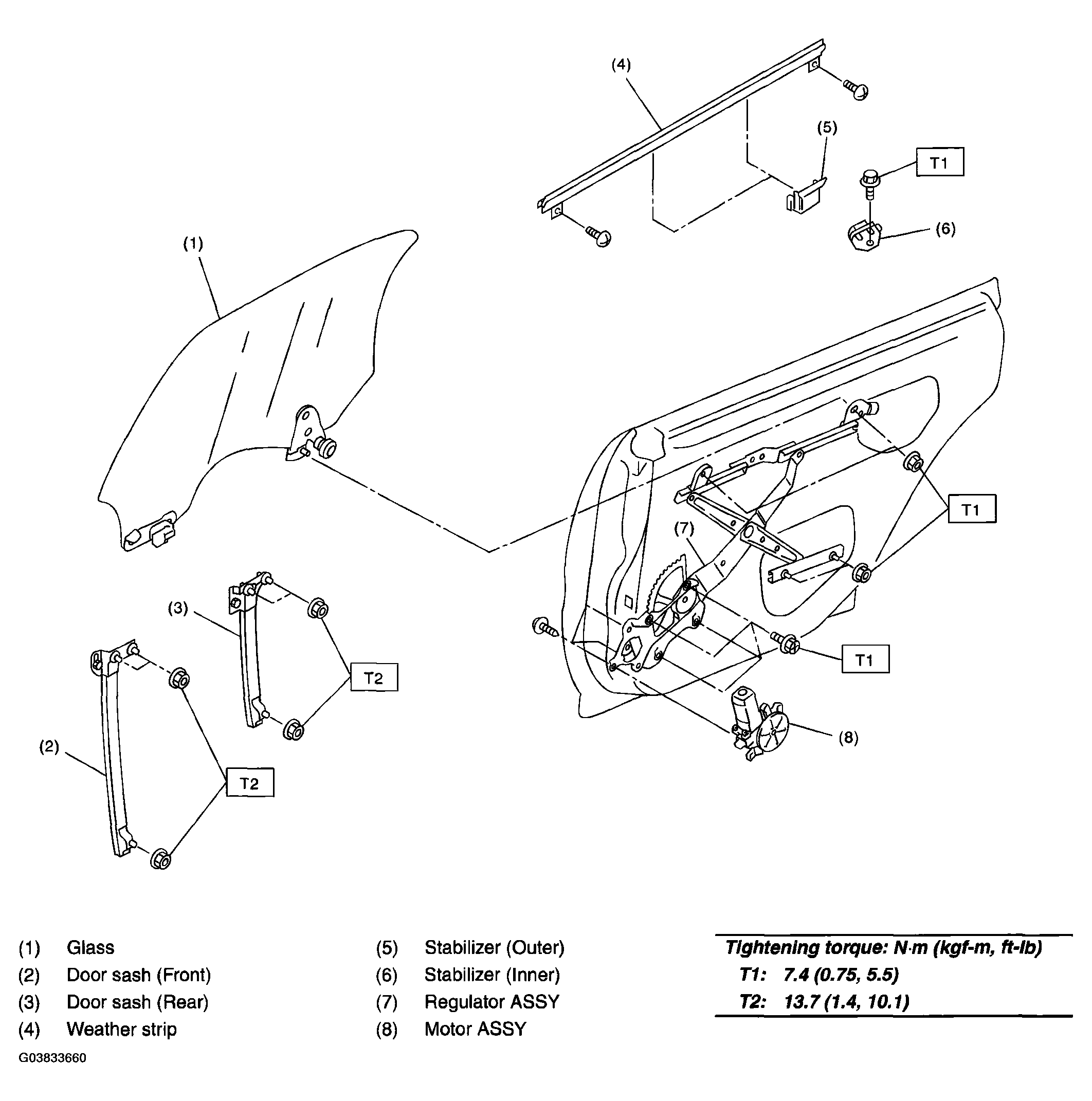

Fig 1: Exploded View Of Rear Door Glass
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
