Exhaust Temperature Sensor: Installation

Before installing exhaust temperature sensor, apply anti-seize compound only to the threaded portion of exhaust temperature sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to protector of exhaust temperature sensor.

Anti-seize compound:

SS-30 JET LUBE
Install the exhaust temperature sensor.
NOTE: Align the harness (A) of exhaust temperature sensor to the marking (B) of joint pipe, and tighten the screws.

Tightening torque:

21 N.m (2.1 kgf-m, 15.2 ft-lb)

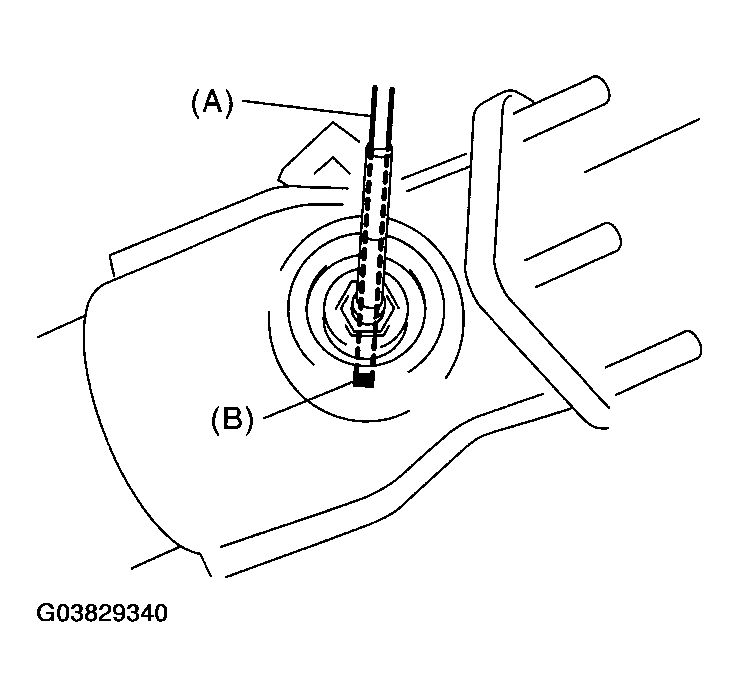

Fig 1: Aligning Harness Of Exhaust Temperature Sensor To Marking Of Joint Pipe, And Tighten Screws
Courtesy of SUBARU OF AMERICA, INC.
Install the joint pipe. < Ref. to , INSTALLATION, Joint Pipe. >
Connect the battery ground cable to battery.

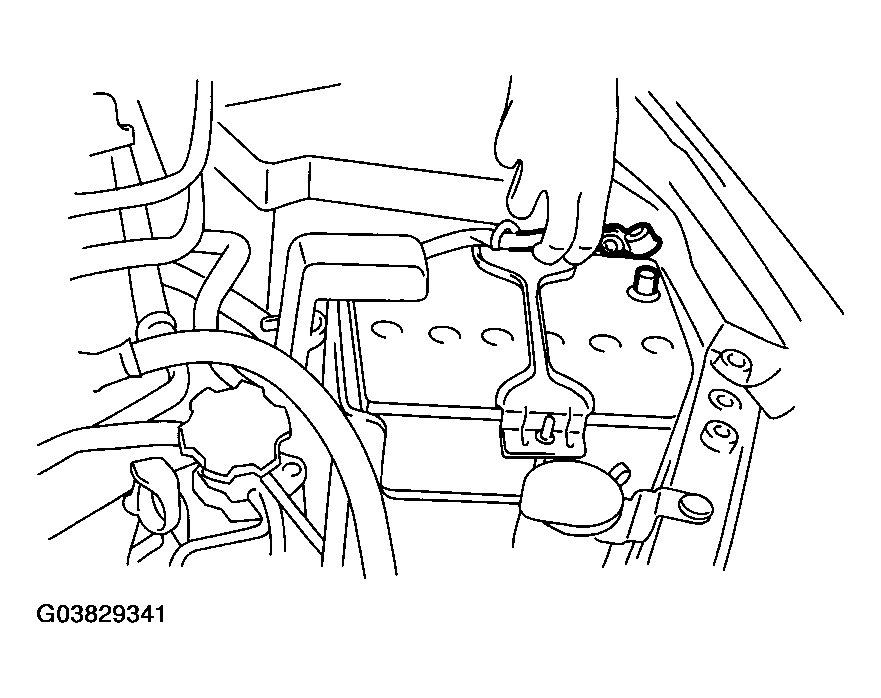

Fig 2: Connecting Battery Ground Cable To Battery

G03829341

Courtesy of SUBARU OF AMERICA, INC.
