Fuel Filler Pipe: Assembly

  1. Install the shut valve to fuel filler pipe.
  2. Tighten the nut which holds the evaporation pipe assembly on the fuel filler pipe.

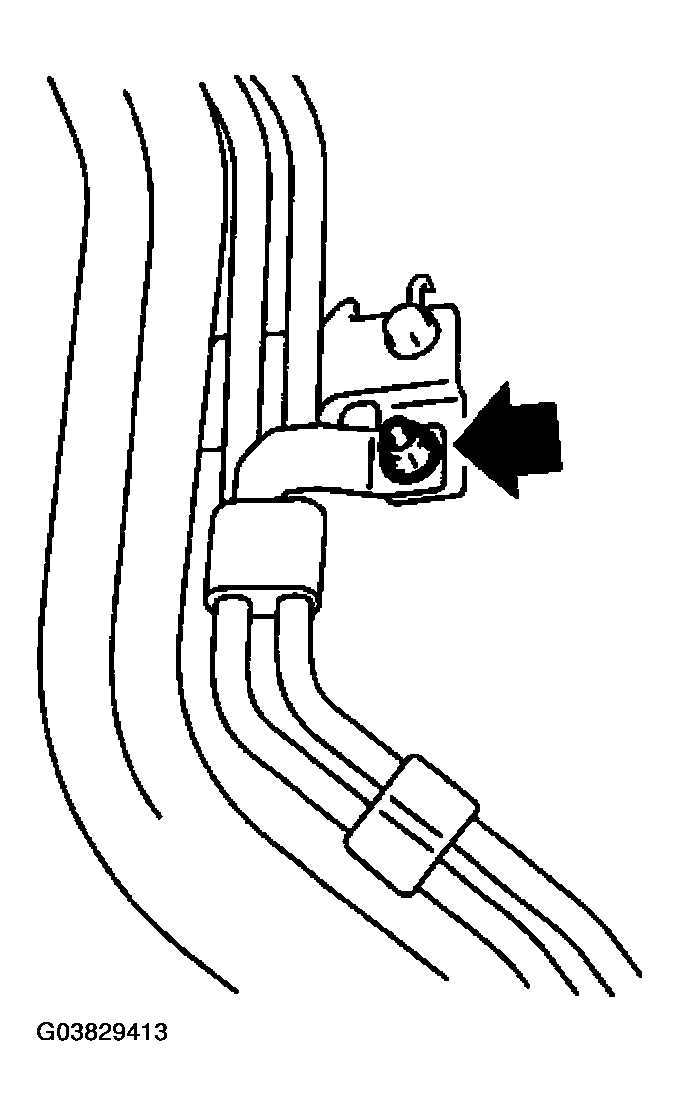

    Fig 1: Tightening Nut
    G03829413Courtesy of SUBARU OF AMERICA, INC.

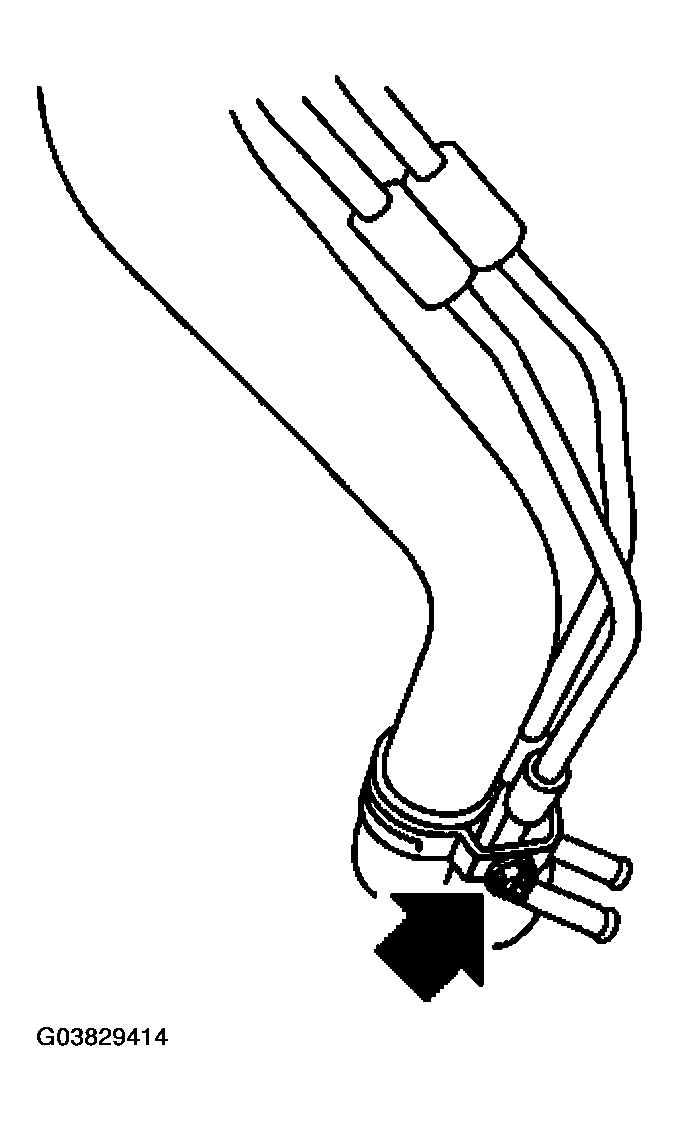

    Fig 2: Tightening Nut
    G03829414Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the evaporation hose to shut valve.

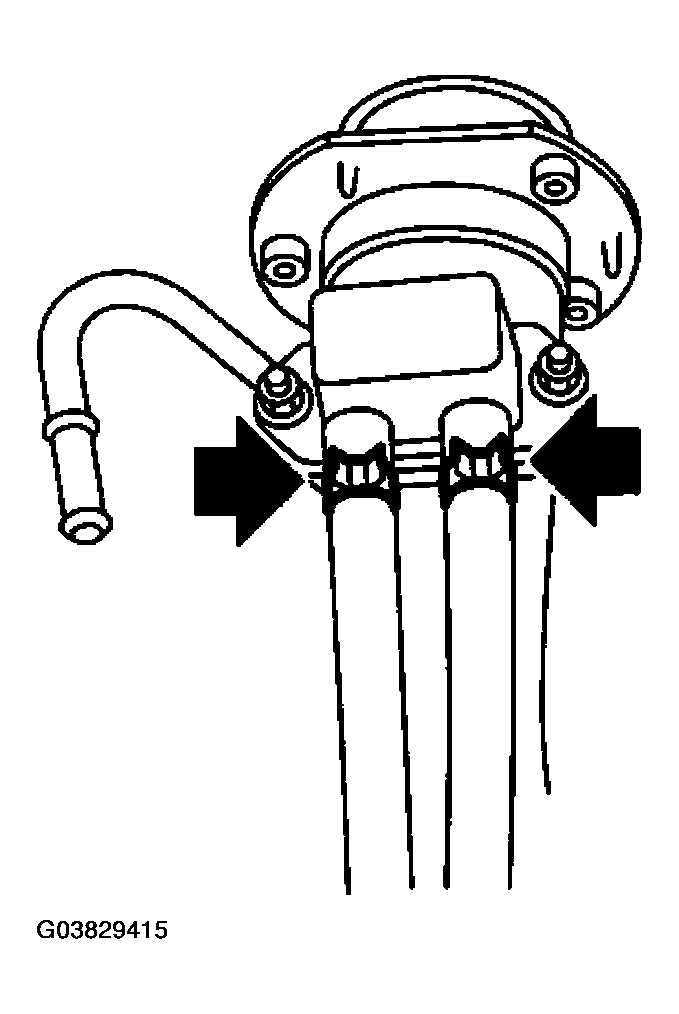

Fig 3: Connecting Evaporation Hose To Shut Valve
G03829415Courtesy of SUBARU OF AMERICA, INC.
