Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

1. Ensure the sealing portion is free from fuel or foreign particles before installation.
2. Tighten the nuts and bolts to specified torque in the order as shown in Fig 1 .

   Tightening torque:

   4.4 N.m (0.45 kgf-m, 3.2 ft-lb)

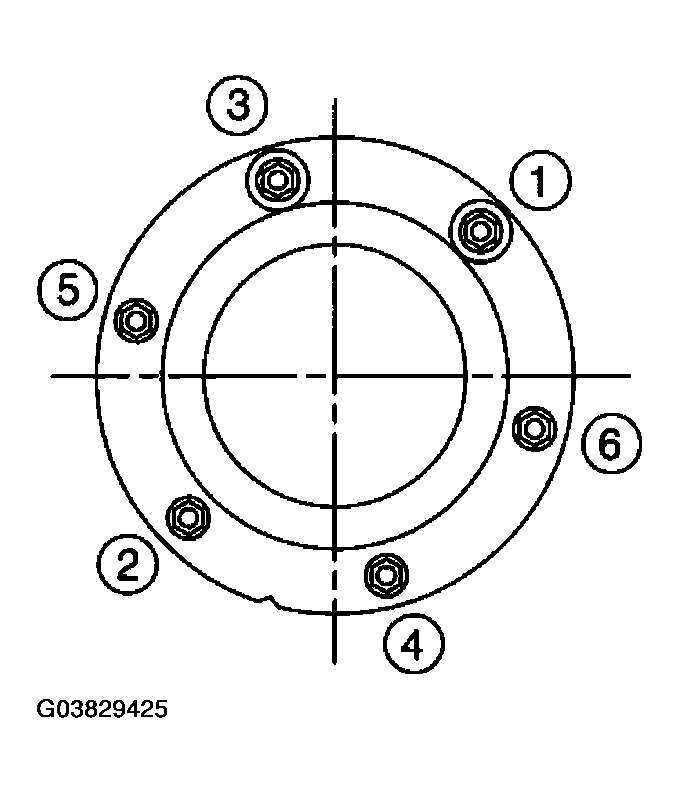

   Fig 1: Tightening Nuts And Bolts

   Courtesy of SUBARU OF AMERICA, INC.

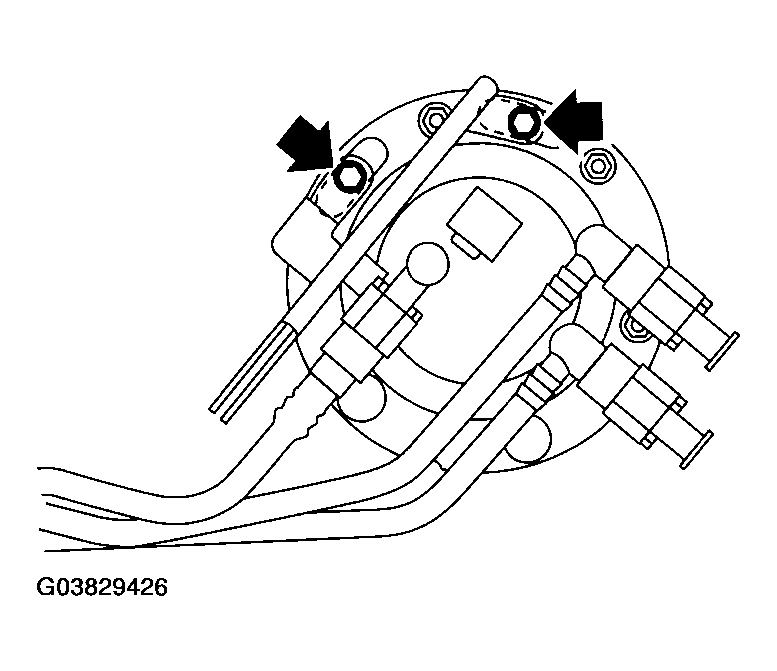

   Fig 2: Tightening Nuts And Bolts

   Courtesy of SUBARU OF AMERICA, INC.
