Knock Sensor: Installation

Install the knock sensor to cylinder block.
NOTE: Extraction area of knock sensor cord must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

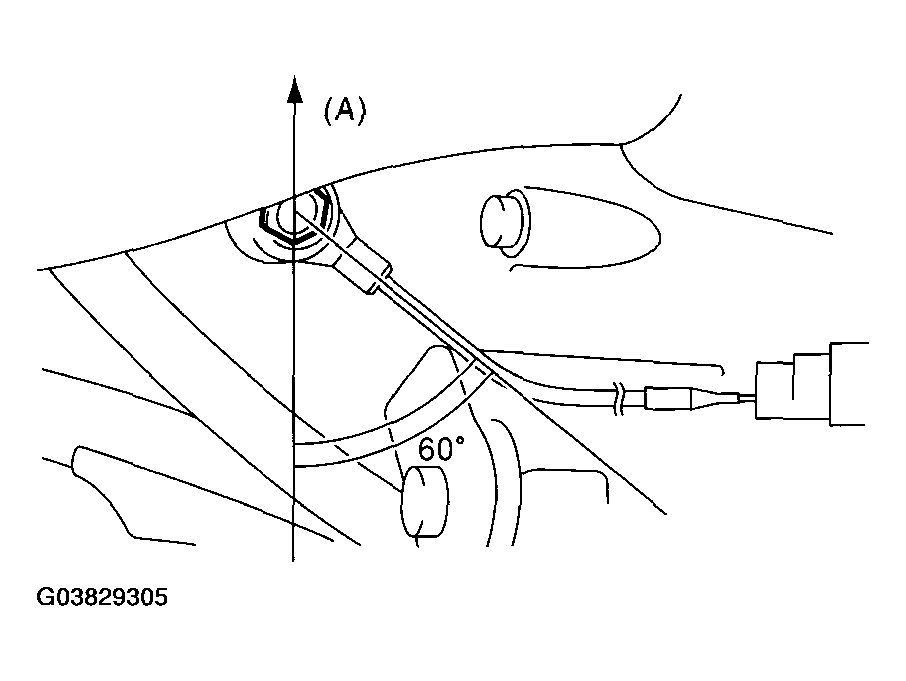

Fig 1: Installing Knock Sensor To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

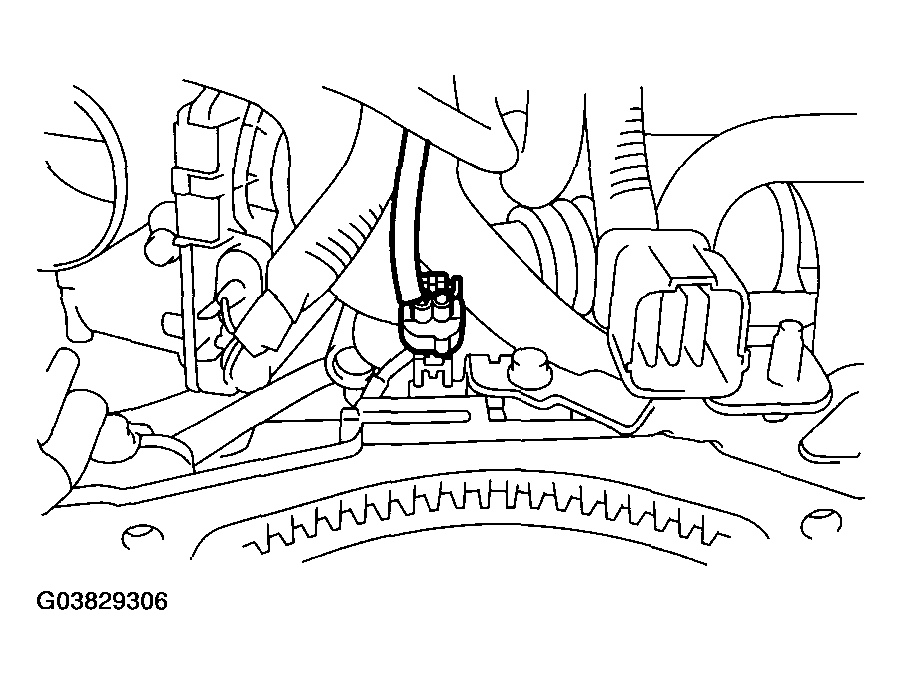

Fig 2: Connecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler.
< Ref. to INSTALLATION , Inter-cooler. >
Connect the battery ground cable to battery.

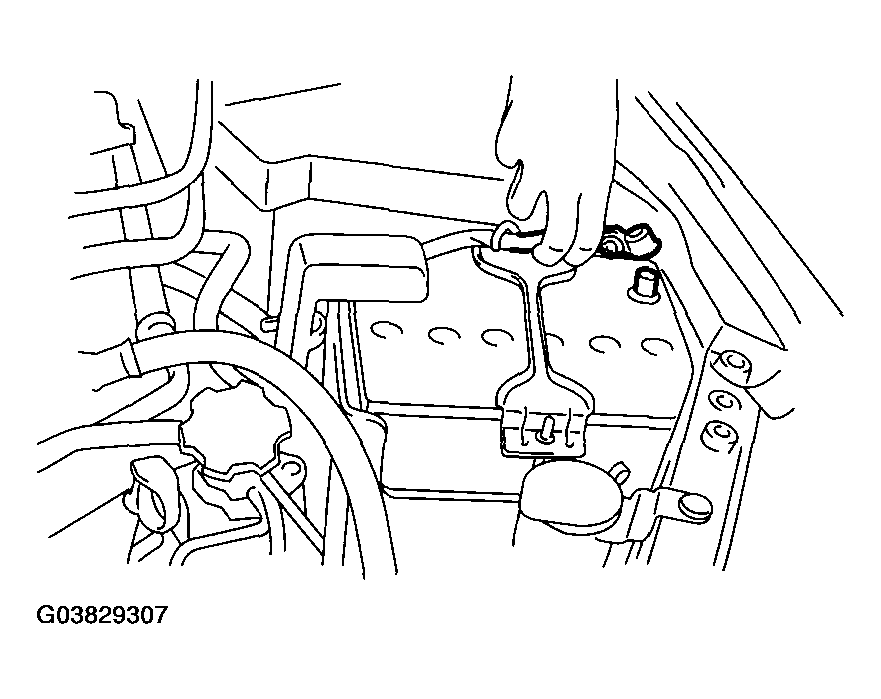

Fig 3: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
