Throttle Body: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

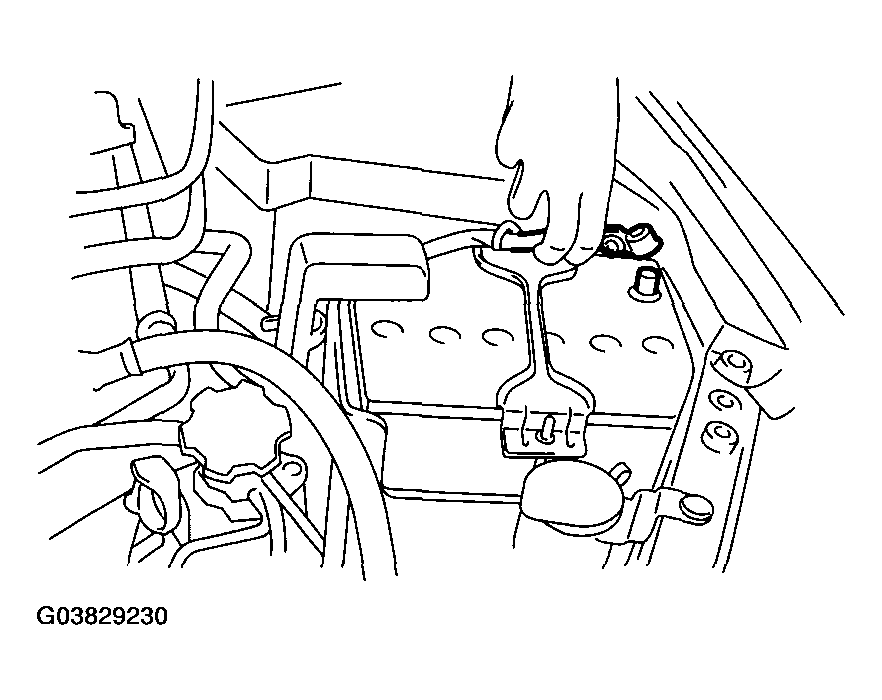

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL , intercooler. >
Disconnect the connectors from throttle position sensor.

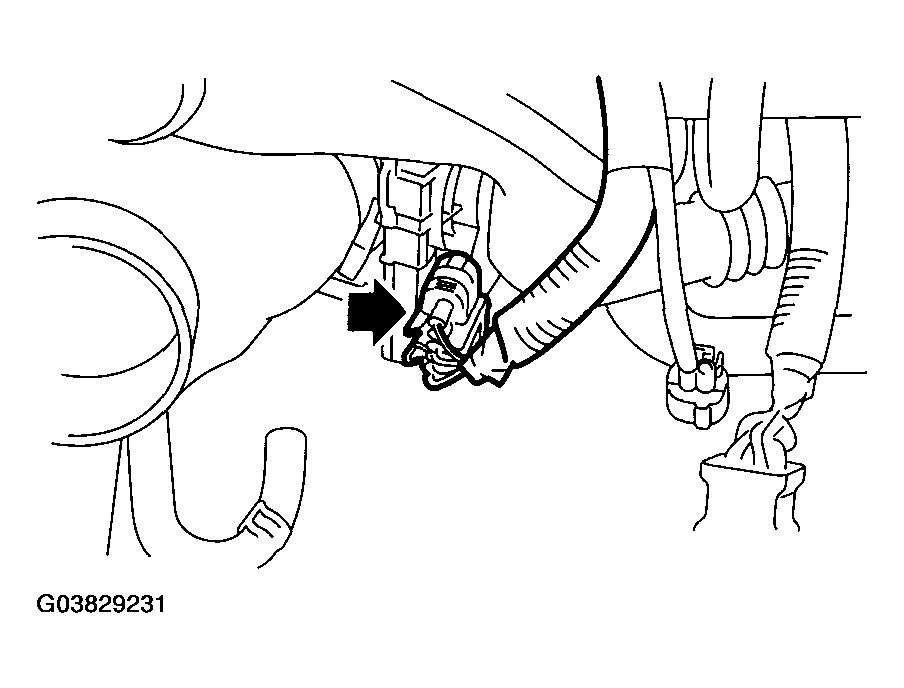

Fig 2: Disconnecting Connectors From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose from throttle body.

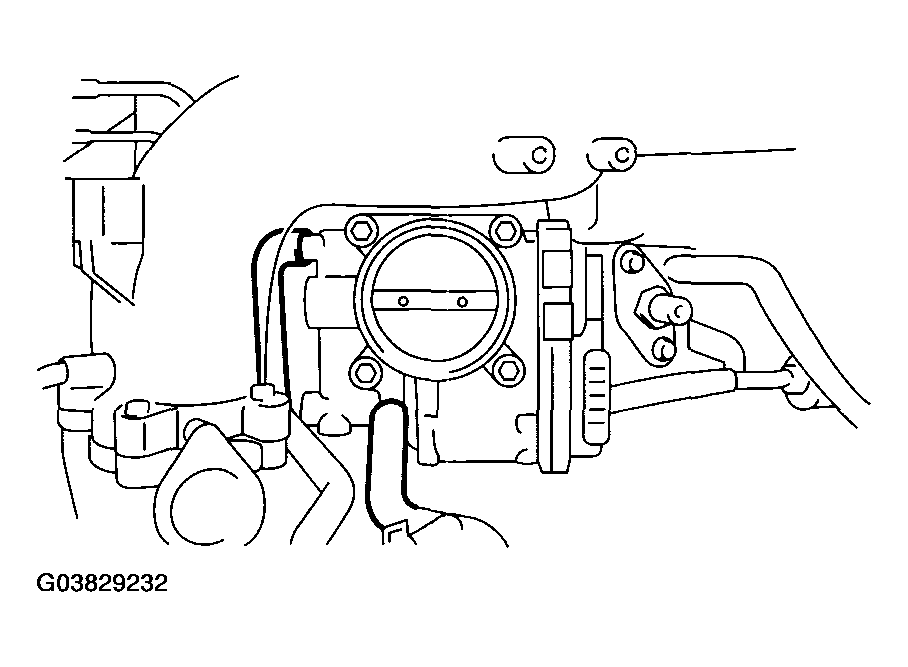

Fig 3: Disconnecting Engine Coolant Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure throttle body to intake manifold.
