Tumble Generator Valve Assembly: Removal

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

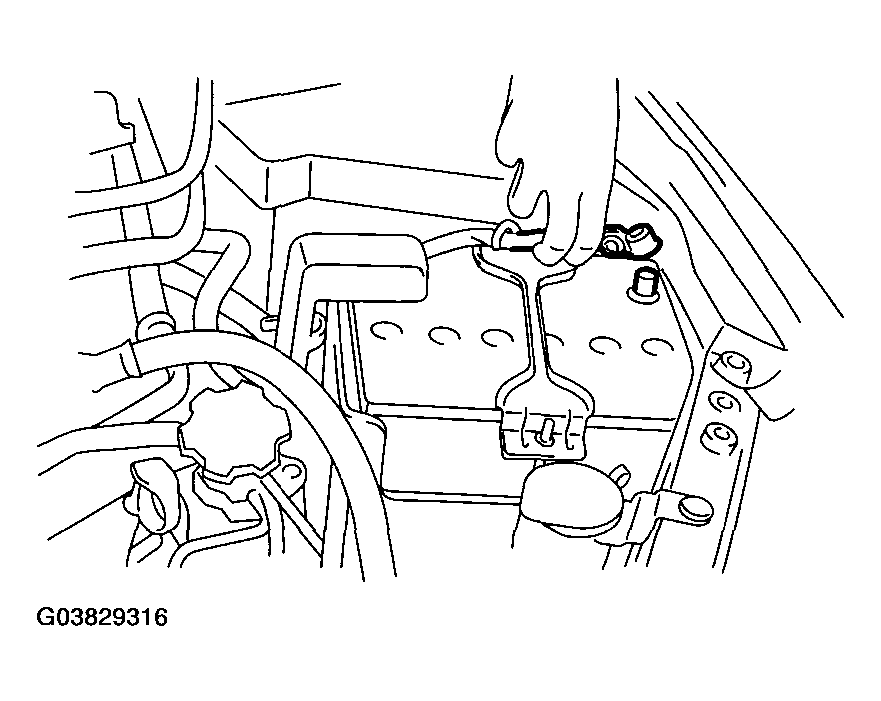

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. < Ref. to , REMOVAL , Intake Manifold. >
Disconnect the connectors from the tumble generator (A) and tumble generator valve actuator (B).

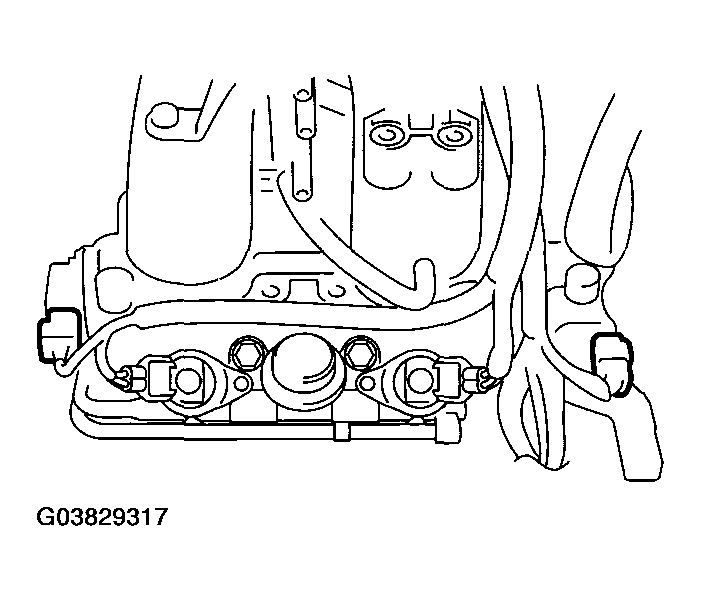

Fig 2: Disconnecting Connectors From Tumble Generator And Tumble Generator Valve Actuator
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector. < Ref. to , REMOVAL , Fuel Injector. >
Remove the tumble generator valve body from the intake manifold.

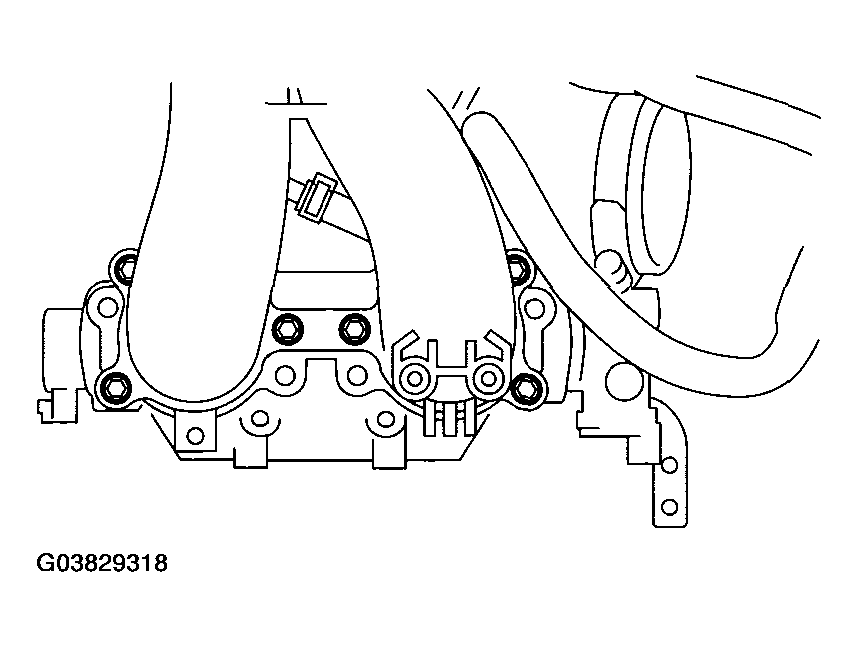

Fig 3: Removing Tumble Generator Valve Body From Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.
