Components With Torque Specifications

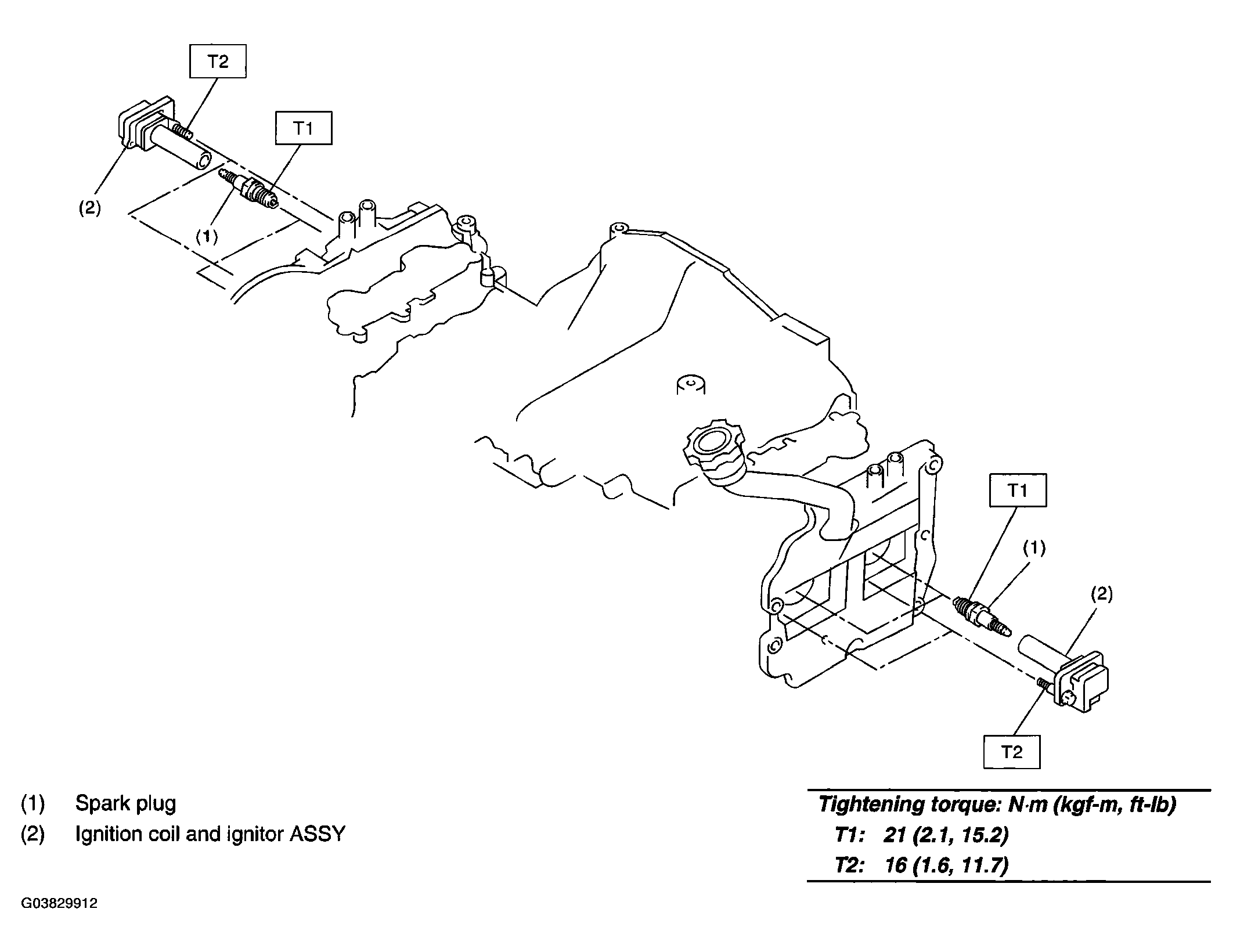

Fig 1: Exploded View Of Ignition Components With Torque Specifications
G03829912Courtesy of SUBARU OF AMERICA, INC.
