RH Side

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

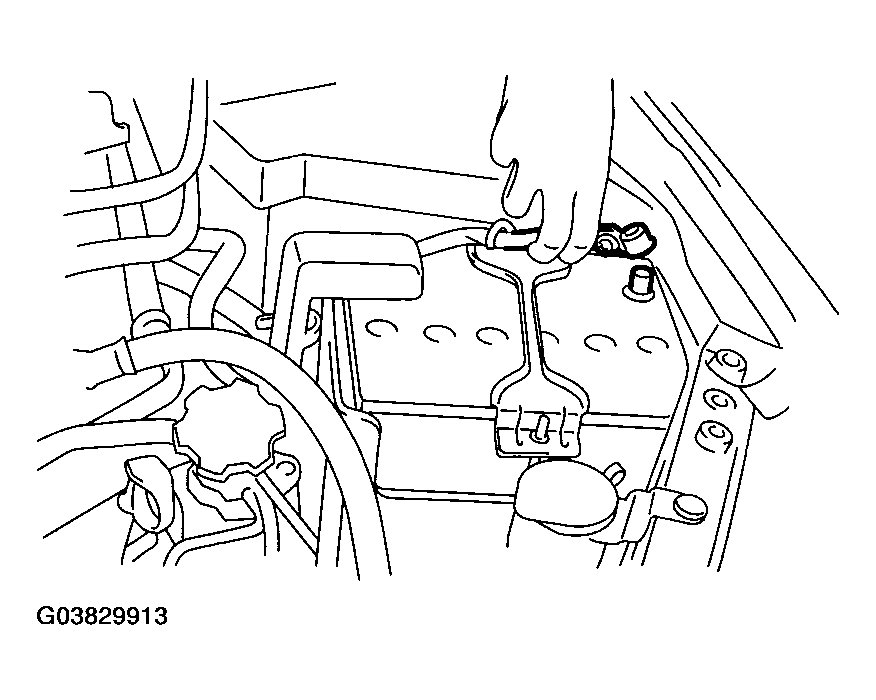

    Fig 1: Disconnecting The Ground Cable From Battery
    G03829913Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air cleaner case.

    < Ref. to AIR CLEANER CASE . >

  4. Disconnect the connector from ignition coil.
  5. Remove the ignition coil.
    NOTE: Turn the #3 ignition coil by 180° to remove it.

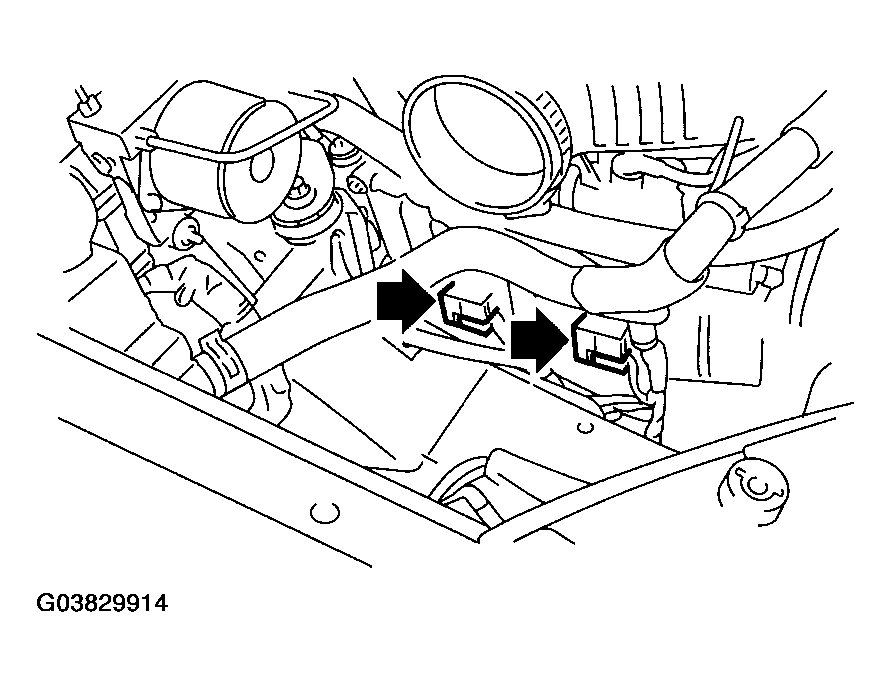

    Fig 2: Removing #3 Ignition Coil
    G03829914Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spark plug with a spark plug socket.
