Camshaft Position Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

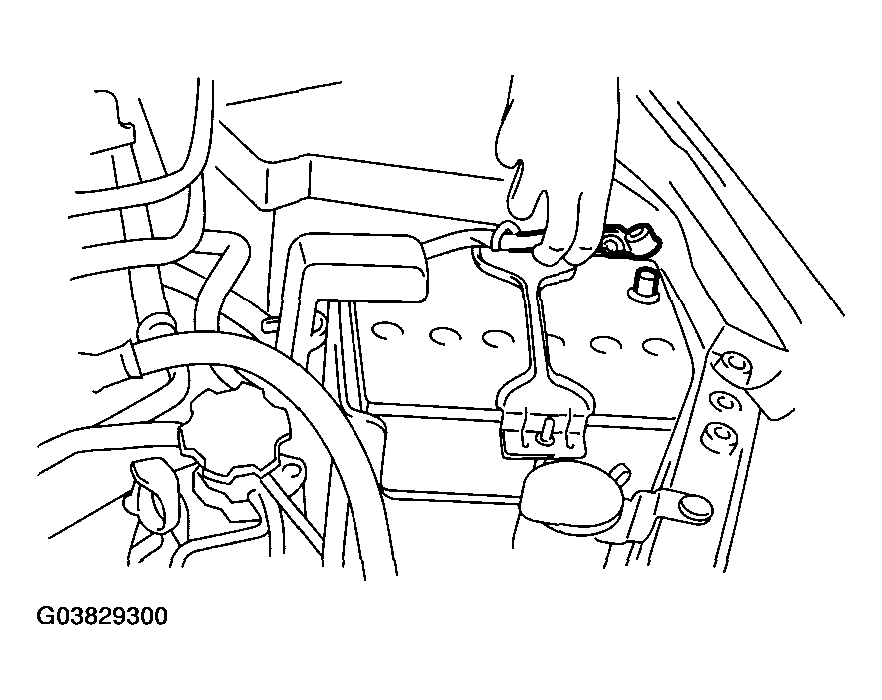

    Fig 1: Disconnecting Ground Cable From Battery
    G03829300Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from camshaft position sensor RH.
  4. Remove the camshaft position sensor RH from the rear side of cylinder head.

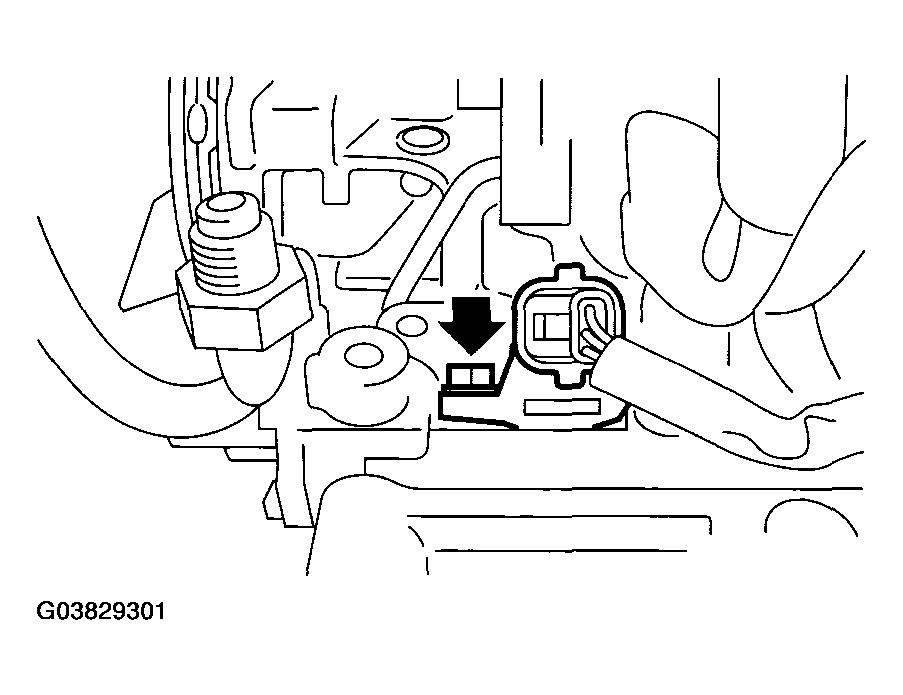

    Fig 2: Removing Camshaft Position Sensor RH From Rear Side Of Cylinder Head
    G03829301Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the camshaft position sensor LH in the same procedure as RH.
