RH Side

Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Remove the collector cover.
Disconnect the ground cable from battery.

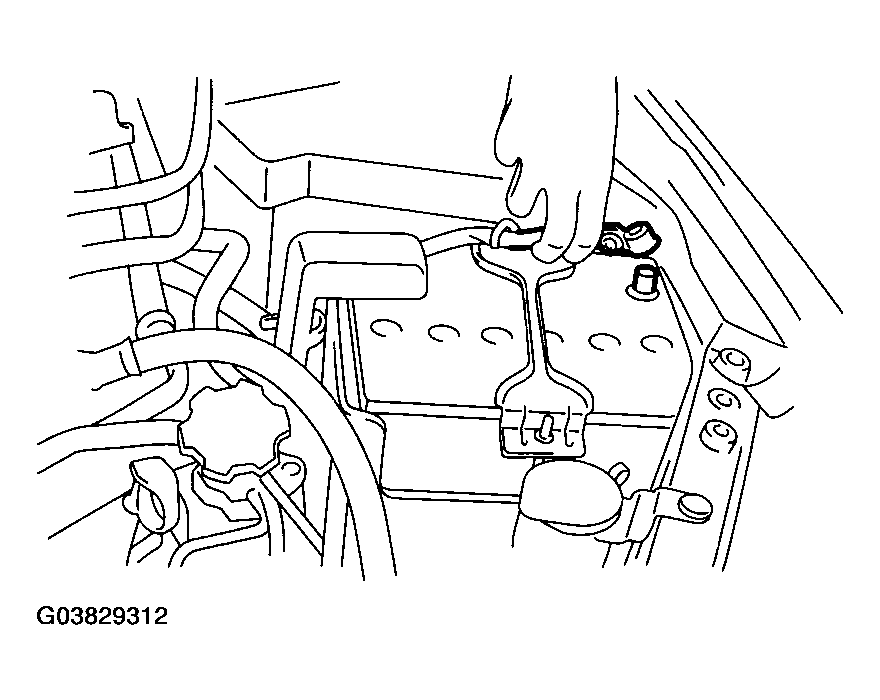

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the coolant filler tank. < Ref. to REMOVAL , Coolant Filler Tank. >
Disconnect the connector from fuel injector.
Remove the screw and remove the fuel injector.

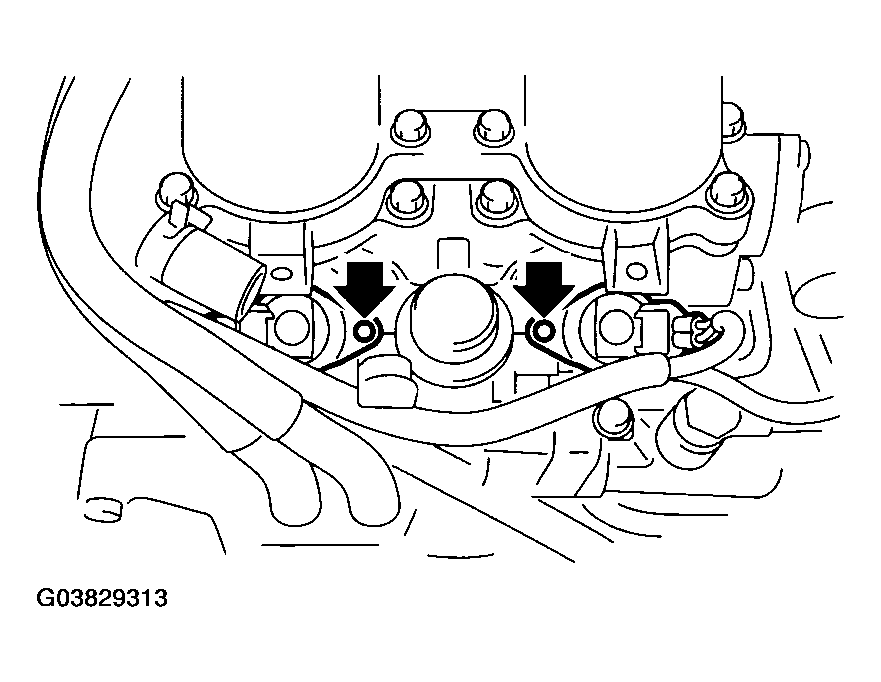

Fig 2: Removing Screw

Courtesy of SUBARU OF AMERICA, INC.
